DISCONTINUED - Boyo (Vision Tech) VTB301 Color Bracket Camera with Full Night Vision, IR and Built-In Microphone

$139.99
Out of stock
SKU
VTB301

Key Features

This item has been discontinued.
Click here for new model.

Unit includes: Back up camera, Mounting bracket, Mounting screws, and Instruction manual

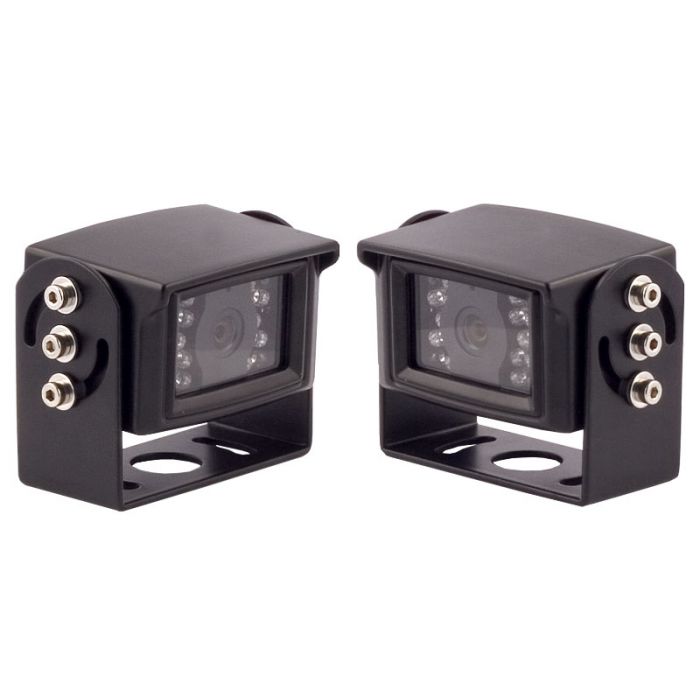

Boyo (Vision Tech) VTB301 Color Bracket Camera with Full Night Vision, IR Infrared and Built In Microphone
  • Weatherproof and water resistant
  • High-resolution 1/3" CCD night vision, color camera
  • Compact & lightweight
  • Aluminum die-cast housing
  • Includes an integrated microphone, wide-angle lens
  • 360 degrees adjustable mounting angle
  • Auto-iris lens that automatically adjusts to light conditions

  • Model: VTB301
  • Imager: 1/3" SONY Super HAD CCD
  • Effective Pixels: NTSC : 510(H)X492(V)
  • Horizontal resolution: 420 TV Lines
  • Lens Angle: 120 degrees
  • Min.Illumination: 0.5 Lux at F2.0. and 0.0Lux(with infrared lamps on)
  • Synchronizing system: Internal
  • Scanning system: 2:1 Interlaced
  • Video output: 1Vp-p 75 ohm composite
  • S/N Ratio: More than 48dB
  • Electronic iris: 1/50,1/60-1/100,000 sec.
  • Lens: 2.8mm/ F2.0
  • Gamma correction: r = 0.45
  • White balance: Auto
  • Gain control: Auto
  • Anti-Vibration: 10g
  • Power source: DC12V
  • Operating current: Max. 300mA
  • Operating Temp: -4 degrees F ~ 122 degrees F ( -20 degrees C ~ + 50 degrees C )
  • Storage Temp: -40 degrees F ~ 176 degrees F ( -40 degrees C ~ + 80,2011, degrees C )
  • Humidity: Within 95% RH
  • Weight of Camera: 0.45Kg

  • Product Manual
More Information
Manufacturer Boyo
Part Number VTB301
Camera Sensor type CCD
Back up camera type Surface Mount Camera
Viewing Angle 120 degrees
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Selectable
Infrared Illumination Yes
Built in Microphone Yes
Connector Type RCA Cable
Modulation NTSC only
Color Black
Warranty 1 Year
UPC Code 689076046312
Return period 30 days
Exchange period 30 days
