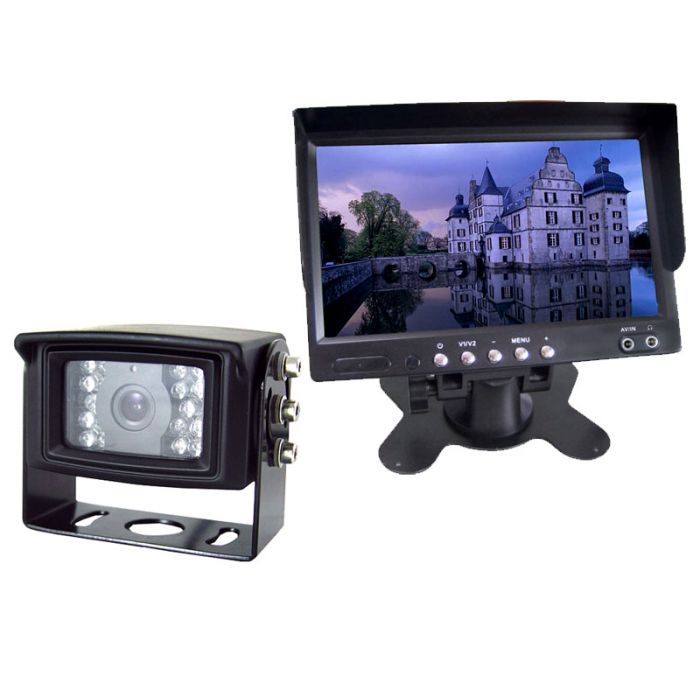

RV Back Up System - Boyo VTM7000 7 inch LCD Monitor with Stand plus Boyo VTB301 Camera w Mic, IR, Night Vision
$288.99
In stock
SKU
47512
Expert Knowledge
Talk to a specialist
- Commercial Grade 7" Monitor
- Built in IR for Night Vision
- Reversed / Non Reversed Camera Ability
- Built in Mic on Camera for Audio
- Built in Speaker on Monitor
RV & Commercial Back Up System Combo Package
- Boyo (Vision Tech) VTM7000 Universal 7 inch TFT LCD Monitor with Stand & Sunshade
- Boyo (Vision Tech) VTB301 Color Bracket Camera with Full Night Vision, IR Infrared and Built In Microphone
Unit includes: Connectors
Boyo (Vision Tech) VTM7000 7 inch TFT LCD Monitor with Stand and Sunshade features:
Unit includes: Back up camera, Mounting bracket, Mounting screws, and Instruction manual
Boyo (Vision Tech) VTB301 Color Bracket Camera with Full Night Vision, IR Infrared and Built In Microphone
- Boyo (Vision Tech) VTM7000 Universal 7 inch TFT LCD Monitor with Stand & Sunshade
- Boyo (Vision Tech) VTB301 Color Bracket Camera with Full Night Vision, IR Infrared and Built In Microphone
Unit includes: Connectors
Boyo (Vision Tech) VTM7000 7 inch TFT LCD Monitor with Stand and Sunshade features:
- 7" Security TFT Monitor with Stand
- Easy to Install
- Remote Controller
- OSD Menu
- 2 Video/Audio Inputs
- Automatic reverse trigger
- Brightness Control
- Low power consumption
- Built In Speaker
- Model: VTM7000
- Device: Card Slot
- Screen size: 7" color TFT
- Operation Temperature: -4 degrees F ~ 149 degrees F ( -20 degrees C ~ + 65 degrees C )
- Humidity: 90% (Max)
- Power Supply: DC 12V
- Resolution: 1440(W) x 234(H)
- Video System: PAL/NTSC
- Input: Dual Video/Audio Input
- Way of Control: Push button / Remote controller
- Product Manual
Unit includes: Back up camera, Mounting bracket, Mounting screws, and Instruction manual
Boyo (Vision Tech) VTB301 Color Bracket Camera with Full Night Vision, IR Infrared and Built In Microphone
- Weatherproof and water resistant
- High-resolution 1/3" CCD night vision, color camera
- Compact & lightweight
- Aluminum die-cast housing
- Includes an integrated microphone, wide-angle lens
- 360 degrees adjustable mounting angle
- Auto-iris lens that automatically adjusts to light conditions
- Model: VTB301
- Imager: 1/3" SONY Super HAD CCD
- Effective Pixels: NTSC : 510(H)X492(V)
- Horizontal resolution: 420 TV Lines
- Lens Angle: 120 degrees
- Min.Illumination: 0.5 Lux at F2.0. and 0.0Lux(with infrared lamps on)
- Synchronizing system: Internal
- Scanning system: 2:1 Interlaced
- Video output: 1Vp-p 75 ohm composite
- S/N Ratio: More than 48dB
- Electronic iris: 1/50,1/60-1/100,000 sec.
- Lens: 2.8mm/ F2.0
- Gamma correction: r = 0.45
- White balance: Auto
- Gain control: Auto
- Anti-Vibration: 10g
- Power source: DC12V
- Operating current: Max. 300mA
- Operating Temp: -4 degrees F ~ 122 degrees F ( -20 degrees C ~ + 50 degrees C )
- Storage Temp: -40 degrees F ~ 176 degrees F ( -40 degrees C ~ + 80 degrees C )
- Humidity: Within 95% RH
- Weight of Camera: 0.45Kg
- Product Manual
| Manufacturer | Boyo |
|---|---|
| Part Number | VTM7000-VTB301 |
| LCD Screen Size | 7 inch - 8 inch |
| Native Screen Resolution | 1440 x 234 |
| LCD back light type | CCFL |
| Modulation | NTSC and PAL |
| Built in Speakers | Yes |
| Mount included | Yes, Pedistal stand |
| Audio Video inputs | 2 Audio Video Inputs |
| Wireless Remote Control | Yes |
| Color | Black |
| Warranty | 1 Year |
| Return period | 30 days |
| Exchange period | 30 days |
