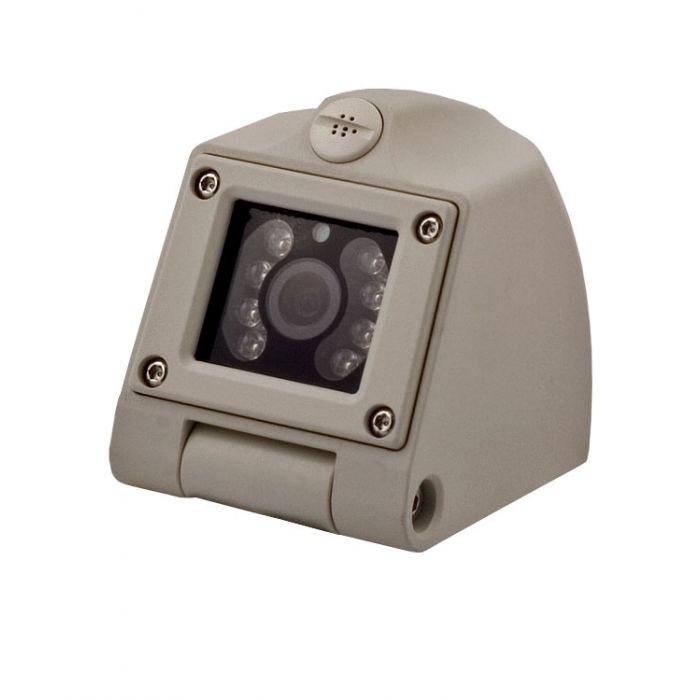

Boyo (Vision Tech) VTB500A Heavy Duty Bus, Truck, Van or RV Waterproof Camera with Built In MIC and 1/3 inch Super Sensitive Color CCD Sensor

Special Price $119.99 Regular Price $160.99
In stock
Only 1 left
SKU
VTB500A

Key Features

  • Weatherproof and water resistant
  • Reverse and Non-Reverse switchable
  • Camera angle adjustable
  • Vibration free
Unit includes: Cam

Boyo (Vision Tech) VTB500A Heavy Duty Bus, Truck, Van or RV Waterproof Camera with Built In MIC and 1/3 inch Super Sensitive Color CCD Sensor
  • Reverse and Non-Reverse switchable
  • Weatherproof and water resistant (IP67 weatherproof)
  • 1/3" Super Sensitive Color CCD sensor
  • Excellent Auto White Balance
  • Excellent Back Light Compensation
  • Mirror image on/off by external switch
  • 15M IR Infrared beam distance
  • Wide range of power input tolerance (9.5VDC ~ 24VDC)
  • Reverse polarity input protection circuit built-in
  • Front view, inside view, rear view, side view (right/left)
  • Camera angle adjustable (max 30 deg.)
  • Vibration free

  • Model: VTB500A
  • Microphone: Yes
  • Image device: 1/3" Super sensitive color CCD sensor
  • TV System: NTSC
  • Effective pixels: NTSC: 768(H) x 494(V) pixels
  • Scanning system: 2:1 interlaced
  • Sync. system: Internal
  • Resolution: 520 TVL (day) / 540TVL (night)
  • Minimum illumination: 0.2 Lux at F2.0 w/o IR LED, 0 Lux w/ IR LED
  • Video output: 1.0vp-p, 75Ohm
  • S/N ratio: More than 50dB
  • White balance: Auto
  • Gain control: 6dB ~ 40dB Auto
  • Gamma correction: r=0.45
  • Smear effect: 0.005%
  • Operation current: 80,2011,mA ~ 190mA
  • Lens standard: 2.9mm Fixed Iris (120' AOV)
  • Power supply: DC12V
  • Operating Temp : -4 degrees F ~ 122 degrees F (-20 degrees C ~ + 50 degrees C)
  • Humidity: Within 90% RH
  • Measurement: 60(W) x 70.3(H) x 90(L)
  • Weight: 500g

  • Product Manual

  • VTB500 - Heavy Duty Bus Camera
  • VTB500A - Heavy Duty Bus Camera with Built-in MIC

More Information
Manufacturer Boyo
Part Number VTB500A
Camera Sensor type CCD
Back up camera type Surface Mount Camera
Camera diameter 2.96 mm
Viewing Angle 120 degrees
Wireless Transmission Wired connection
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Selectable
Parking grid lines No
Infrared Illumination Yes
Built in Microphone Yes
Connector Type RCA Cable
Modulation NTSC only
Operation Voltage 12-15 Volt DC
Battery Powered Hard wired
Color White
Warranty 1 Year
UPC Code 689076306317
Return period 30 days
Exchange period 30 days
