Boyo VTB689IRM Metal Housed Surface Mount Nightvision CMOS Backup Camera

Be the first to review this product

$37.99

In stock

SKU

VTB689IRM

Buy 10 for $36.99 each and save 3%

Notify me when the price drops

Surface Mount Camera
170° viewing angle
Selectable reverse and non reverse image
Low Light Sensitive with IR illumination
Selectable parking grid lines - cut wire changes mode

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

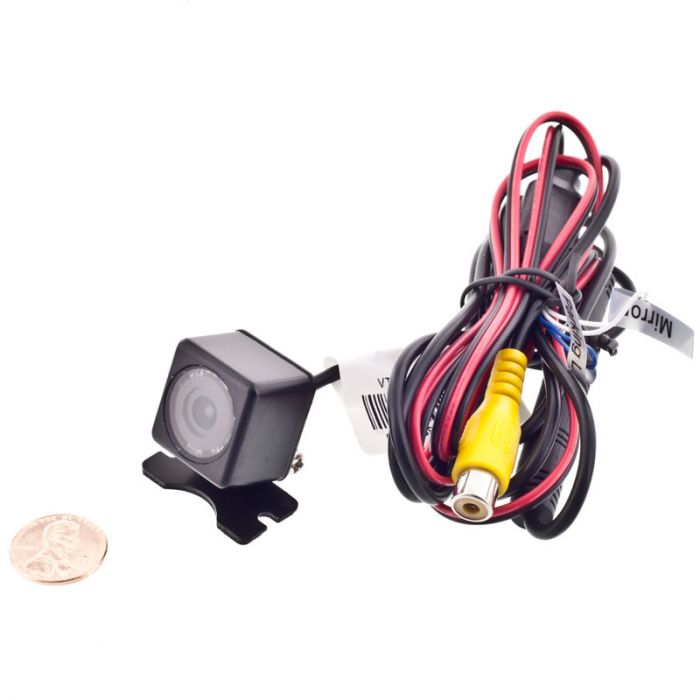

Unit includes: Surface mount camera, 20 foot RCA cable, 3 foot power harness, and Instruction manual

Boyo VTB689IRM Metal Housed Surface Mount Nightvision CMOS Backup Camera

Features:

CMOS Reverse image camera
Camera can rotate a full 120 degree within the mount
Camera can be used as a front or backup camera - Cut lead to reverse image
Cut wire for parking grid lines
600 TV Lines of resolution
.1 LUX minimum illumination with IR off
Resolution: 733 x 493 pixels
Waterproof IP68
170° viewing angle
8 - IR LED's for nightvision

Dimensions:

Dimensions: 7/8" (W) x 7/8" (H) x 7/8" (D)

Specifications

More Information
Manufacturer	Boyo
Part Number	VTB689IRM
Camera Sensor type	CMOS
Back up camera type	Surface Mount Camera
Camera diameter	1/4 inch
Viewing Angle	170 degrees
Wireless Transmission	Wired connection
Waterproof ingress protection	IP68 - Dust; Immersion beyond 1 m
Reverse Image	Selectable
Parking grid lines	Selectable
Infrared Illumination	Yes
Built in Microphone	No
Connector Type	RCA Cable
Modulation	NTSC only
Operation Voltage	12-15 Volt DC
Battery Powered	Hard wired
Color	Black
Overall Height	$0.88
Overall Length	$0.88
Overall Width	$0.88
Warranty	1 Year
UPC Code	8.50005E+11
Return period	30 days
Exchange period	30 days
