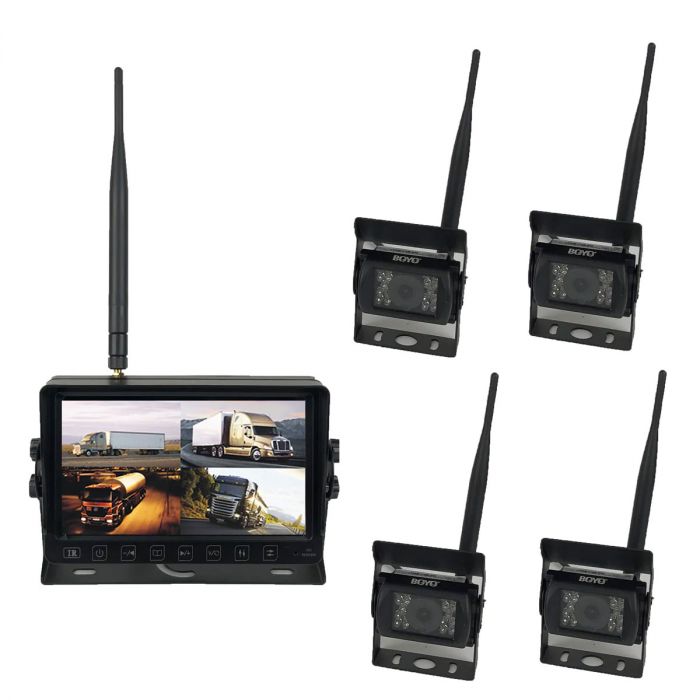

Boyo VTC703AHD-Q4 Quad Camera Digital Wireless Backup Camera System with DVR

Unit includes: 7 inch LCD monitor with wireless receiver, (4) Back Up Cameras with Wireless Transmitter, Monitor hard wire cable, Cigarette lighter power cable, Audio video input cable, (5) Antennas, Suction cup mount, Fan mount, Mounting and Electrical hardware, and Instruction manual

Boyo VTC700RQ-4 Quad Camera Digital Wireless Backup Camera System with DVR

Overview:

• 7 inch LCD monitor with wireless receiver
• Four camera system is perfect for large vehicles and RV's where running cables is difficult
• 2.4 Ghz digital transmission, cameras require pairing and are not subject to interference and signal hijacking
• Built in DVR with 4 channel record capability
• (4) Night vision CCD camera/w wireless transmitter
• Ideal for trucks and trailers where wired connections are not possible
• 200 foot line of sight range
• Monitor can be temporarily mounted using included suction cup
• Monitor can be permanently mounted using included fan mount
• Monitor can be temporarily powered using included cigarette lighter cord
• Monitor can be permanently powered using included hard wire cord
• 1 Side mounted video output

Wireless Digital Monitor
• IPS, TFT, LCD Panel, 1080p HD Quality
• Panel: 7 inch Digital Panel Screen
• Resolution: 1024 (H) x 600 (V)
• Display format: 16:9
• NTSC/PAL compatible
• Built-In Speaker
• Parking lines on/off (Selectable)
• Reverse / Non-Reverse Image (Selectable)
• 2.4GHz Digital Wireless Signal
• Wireless Transmit Range at about 300 feet
• Working temperature: -20°C ~ 70°C
• Working Voltage Range: 12VDC ~ 36VDC
• Works as Single, Dual, or Quad Screens
• 4 Channel Audio/Video
• Power the monitor through a cigarette plug
• Built-in DVR
• Records onto an micro SD card up to 128GB
Monitor Dimensions:
• With Antenna extended vertically: 9-3/4 (H) x 9-1/2" (W) x 1-3/8" (D)
• Without Antenna: 6-1/4 (W) x 8-3/8" (H) x 1-3/8 (D)

Wireless Digital Camera

• Image Sensor: 1/4” FHD CMOS sensor
• Effective Pixels: 1920 (H) x 1080 (V)
• Waterproof Rating: IP68
• Viewing Angle: 110°(H), 85°(V), 140°(D)
• Auto White Balance
• Built-in Microphone
• IR Night Vision Visible Distance: about 12feet
• Reverse / Non-Reverse Image (Selectable)
• 2.4GHz Digital Wireless Signal
• Wireless Transmit Range at about 300 feet
• Working temperature: -20°C ~ 70°C
• Working Voltage Range: 12VDC ~ 36VDC
• No high speed dropouts
• Trigger function
• NTSC or PAL compatible
Camera Dimensions
• Without Antenna: 4-1/4" (W) x 2-1/2 (H) x 3-1/4 (D)
• With Antenna: 4-1/4" (W) x 5-1/2" (H) x 3-1/4" (D)

Inputs and Outputs:
• 1 - 9-32 VDC power inputs
• 1 - Rear camera trigger
• 1 - Camera 2 trigger
• 1 - Camera 3 trigger
• 1 - Camera 4 trigger

Note: this system is not designed to be used while in motion at highway speeds, due to signal limitations this system will not function properly at speeds in excess of 20 MPH.
