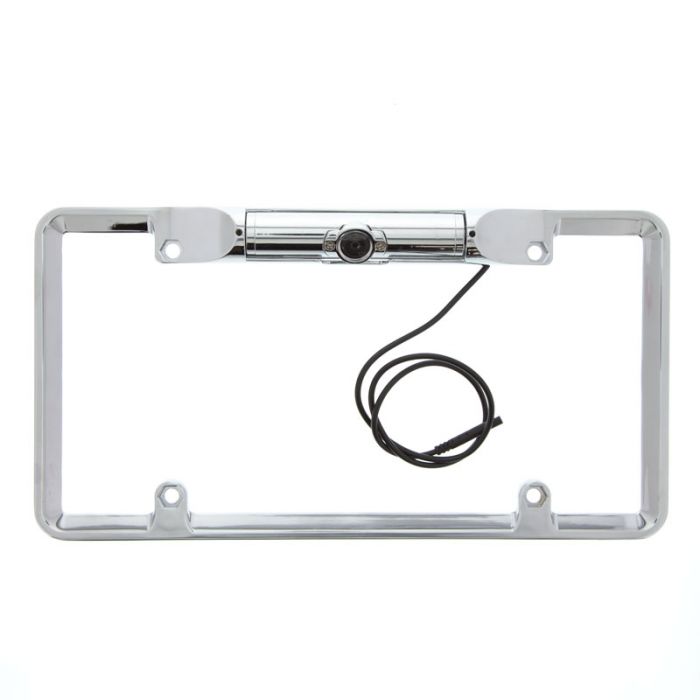

DISCONTINUED - Boyo VTL200C License Plate Camera with 130° Viewing Angle CMOS Chrome

$85.99
Out of stock
SKU
15228

Key Features

  • 140° Wide Angle View
  • Full Frame License Plate Camera
  • CMOS Lens
  • Low Light Sensitive
Unit includes: License plate back up camera, Wiring harness, Mounting bolts, Bolt caps, and Instruction manual

Boyo VTL200C License Plate Camera with 130° Viewing Angle CMOS Chrome

Quick Overview
  • License Plate Camera with 130° Viewing Angle (Chrome)
  • UPC: 689076019514
  • Weight: 1.3063 lbs.
Product Description
  • 130° wide angle view
  • Viewing angle is adjustable up & down
  • Digital Clarity CMOS Imaging Technology
  • Reverse image feature
  • Superior low-light performance
  • 2-wire serial interface
  • Auto black level calibration
  • Anti-scratch coating
  • Metal frame housing
  • Chrome
  • Imager: 1/4" DSP Color CMOS
  • Effective Pixels: NTSC : 640(H)X480,2011,(V)
  • Horizontal resolution: 380,2011, TV Lines
  • Total number of pixels: 300K
  • Min.Illumination: 0.5 Lux at F2.0
  • Synchronizing system: Internal
  • Scanning system: 2:1 Interlaced
  • Video output: 1Vp-p 75 ohm composite
  • S/N Ratio: More than 48dB
  • Electronic iris: 1/50 to 1/1000 sec
  • White balance: Auto
  • Gain control: Auto
  • Lens mount: 2.1mm
  • Power source: DC12V
  • Viewing Angle: 140 Degrees wide view angle
  • Operating Temp: -4˚ F~122˚ F ( -20˚ C~ + 50˚ C )
  • Storage Temp: -40˚ F~176˚ F ( -40˚ C~ + 80,2011,˚ C )
  • Waterproof Rating: IP67

Instruction manual
More Information
Manufacturer Boyo
Part Number VTL200C
Camera Sensor type CMOS
Back up camera type License Plate Camera
Viewing Angle 130 degrees
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Yes - Reverse Image
Infrared Illumination No
Built in Microphone No
Connector Type RCA Cable
Modulation NTSC only
Color Chrome
Warranty 1 Year
UPC Code 689076019514
Return period 30 days
Exchange period 30 days
