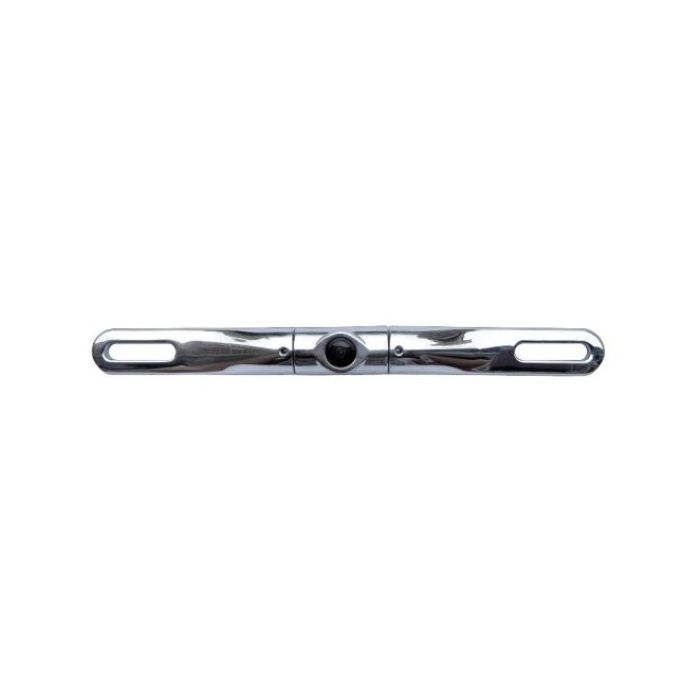

DISCONTINUED - Boyo VTL402C Zinc Metal Bar type Chrome License Plate Camera
$58.99
Out of stock
SKU
40551
Expert Knowledge
Talk to a specialist
- CMOS Lens
- Top Bar Mounting
- Anti-scratch coating
- Sleek Design
Unit includes: Camera, Cables and Mounting hardware
Boyo VTL402C Zinc Metal Bar type Chrome License Plate Camera
Instruction manual
Boyo VTL402C Zinc Metal Bar type Chrome License Plate Camera
- High sensitive 1/4" DSP Color CMOS built-in
- 420 TVL Horizontal Resolution
- Remarkable low Lux performance of 0.5 Lux at F2.0
- Excellent Auto White Balance
- Waterproof(IP67)
- Automatic Reverse: When reverse gear is engaged, the system will start to work automatically
- Beautiful design & anti-scratch coating
- Imager: 1/4" Color CMOS (PC1030)
- Effective Pixels: NTSC : 656(H)X492(V)
- Horizontal resolution: 420 TV Lines
- Total number of pixels: 320K
- Min.Illumination: 0.5 Lux at F2.0
- Current Consumption: 50mA, Max 300mA
- Video output: RCA connector, 1.0Vp-p, 75ohm
- White balance: Auto
- Viewing Angle: 150 Degrees wide angle view
- Power source: DC12V +/- 10%
- Operating Temp: -4Ëš F~122Ëš F ( -20Ëš C~ + 50Ëš C )
- Storage Temp: -40Ëš F~176Ëš F ( -40Ëš C~ + 80,2011,Ëš C )
- Waterproof: IP67
Instruction manual
| Manufacturer | Boyo |
|---|---|
| Part Number | VTL402C |
| Camera Sensor type | CMOS |
| Back up camera type | License Plate Camera |
| License Plate Camera Type | Bar style |
| Viewing Angle | 150 degrees |
| Waterproof ingress protection | IP67 - Dust; Immersion up to 1 m |
| Reverse Image | Yes - Reverse Image |
| Parking grid lines | Yes |
| Infrared Illumination | No |
| Built in Microphone | Yes |
| Connector Type | RCA Cable |
| Modulation | NTSC only |
| Operation Voltage | 12-15 Volt DC |
| Color | Chrome |
| Warranty | 1 Year |
| Return period | 30 days |
| Exchange period | 30 days |
