DISCONTINUED - Boyo VTL420 Bar-Type Plastic License Plate Camera Black

DISCONTINUED - Boyo VTL420 Bar-Type Plastic License Plate Camera Black

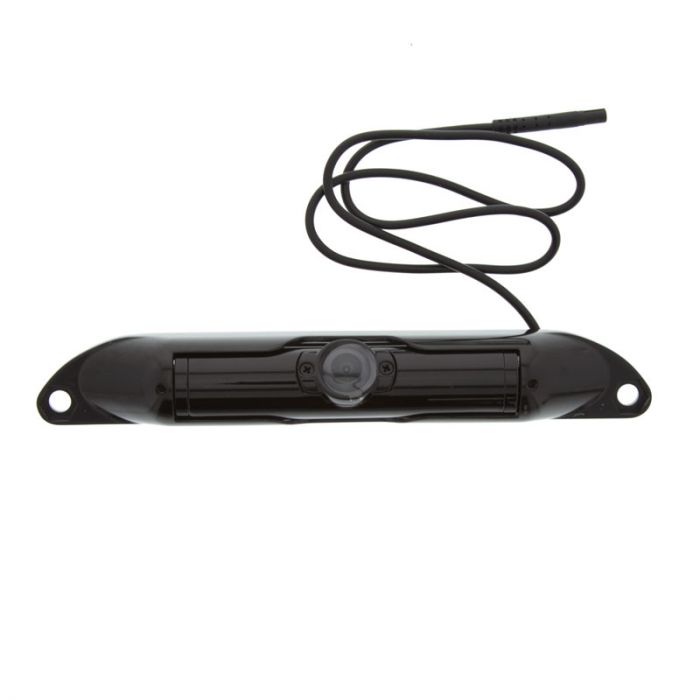

Boyo VTL420 Bar-Type Plastic License Plate Camera Black

More Views

Ships Free!

Overall Rating 0 (Based on 0 reviews)

Boyo VTL420 Product Highlights

  • Bar style license plate mount back up camera
  • Black high quality finish
  • Vertical adjustment
  • High quality CMOS imager
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist


Unit includes: Camera, Cables and Mounting hardware

Boyo VTL420 Bar-Type Plastic License Plate Camera Black Features:
  • 130° wide angle view
  • Viewing angle is adjustable up & down
  • Super sensitive low lux image capture
  • Reverse image feature
  • 380,2011, TV lines horizontal resolution
  • High sensitivity 1/3" DSP color built-in CCD
  • Waterproof
  • Plastic frame
  • Black
  • Model: VTL420
  • Imager: 1/4 Sharp Color CCD
  • Effective Pixels: NTSC : 512(H)X492(V)
  • Horizontal resolution: 420 TV Lines
  • Total number of pixels: 320K
  • Min.Illumination: 0.3 Lux at F2.0
  • Synchronizing system: Internal
  • Scanning system: 2:1 Interlaced
  • Video output: 1Vp-p 75 ohm composite
  • S/N Ratio: More than 48dB
  • Electronic iris: 1/50 to 1/1000 sec
  • White balance: Auto
  • Gain control: Auto
  • Lens mount: 1.43mm lens, 170 Degrees wide angle view
  • Power source: DC12V
  • Operating Temp: -4˚ F~122˚ F ( -20˚ C~ + 50˚ C )
  • Storage Temp: -40˚ F~176˚ F ( -40˚ C~ + 80,2011,˚ C )
  • Waterproof: IP67

Instruction manual

Technical Specifications

Manufacturer Boyo
Part Number VTL420
Camera Sensor type No
Back up camera type License Plate Camera
License Plate Camera Type No
Camera sensor diameter No
Viewing Angle 170 degrees
Wireless Transmission No
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Yes - Reverse Image
Parking grid lines No
Infrared Illumination No
Built in Microphone No
Connector Type RCA Cable
Modulation NTSC only
Operation Voltage No
Battery Powered No
Cigarette Lighter Cord Included No
Color Black
Overall Height 0 Inches
Overall Length 0 Inches
Overall Width 0 Inches
Warranty 1 Year
UPC Code 689076584869

Write Your Own Review

You're reviewing: DISCONTINUED - Boyo VTL420 Bar-Type Plastic License Plate Camera Black

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Install (5 star for easy)

Ask questions receive answers.

Posted by jerry_zigmund, Tuesday, July 30, 2013


Does the camera stay once reverse is activated...or does it shut off when car goes into regular gears?????


  • Posted by Salvador Diaz on Tuesday, July 30, 2013

    It all depends on the way the unit is powered up. If you give it constant power the camera will run. If you have it triggered like a reverse lead it will only work when the vehicle is placed into reverse.
