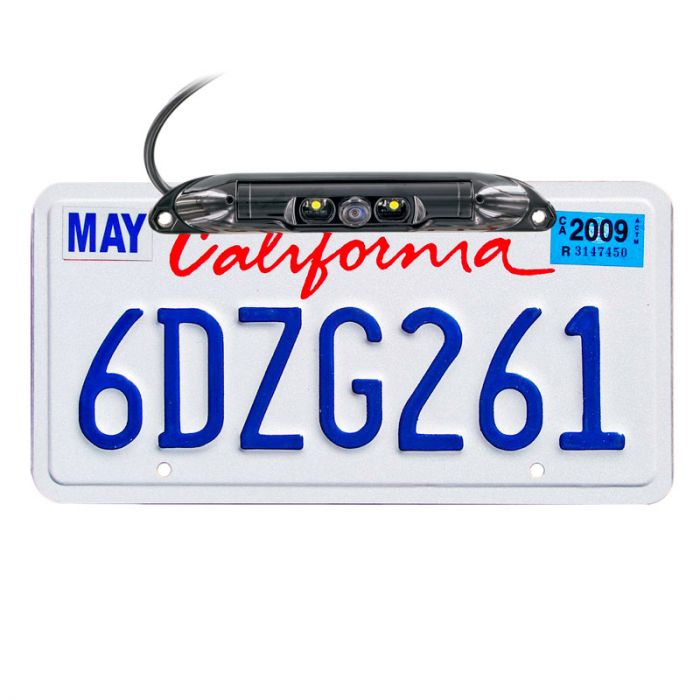

Boyo VTL420CL Black Zinc Metal Bartype License Plate Camera with Built-In 3 Watt LED Lights
$89.99
In stock
SKU
VTL420CL
Expert Knowledge
Talk to a specialist
- Zinc metal bar-type license plate backup camera
- PC3030 1/3 inch CMOS image sensor
- Black Finish
- 170 Degrees Wide Angle View
- Push button turn on LED Lights for excellent night picture
- Selectable parking grid
- Selectable reverse and non-reverse image for front or rear camera use
Unit includes: Black license plate camera, Power Lead, RCA Video Cable, 26ft Extension Cable and Instruction manual
Boyo VTL420CL Black Metal Bar-type License Plate Backup Camera
Boyo VTL420CL Black Metal Bar-type License Plate Backup Camera
- Features:
- Bar style license plate holder with integrated backup camera for easy installation on virtually any vehicle
- Black finish on full zinc metal frame, no plastic
- PC3030 1/3 inch CMOS image sensor
- 480 TVL Horizontal Resolution
- (2) 3 Watt integrated LED's to illuminate area behind vehicle, LED's are manually turned on with a button press
- Remarkable low light performance of 0.1 Lux when LED's aren't used
- 170 degree viewing angle for minimal image distortion
- Camera can be used as a front or rear camera, push button switch to flip image, reverse and non-reverse
- 3 Color Parking grid lines for distance reference gauge, with the push of a button grid lines can be enabled and disabled
- Quick specs:
- 480 TV lines of resolution
- Pixel area: 640 x 480
- Waterproof IP67
- Automatic Reverse: When reverse gear is engaged, the system will start to work automatically
- Current Consumption: 40mA (+/-10mA) Maximum 300mA when LED's are turned on
- Power source: 9Vdc - 15 Vdc
- Video output: 1.0V+/-0.2V
- Operating Temp: -4° F - 158° F
| Manufacturer | Boyo |
|---|---|
| Part Number | VTL420CL |
| Camera Sensor type | CMOS |
| Back up camera type | License Plate Camera |
| License Plate Camera Type | Bar style |
| Camera diameter | 1/3 inch |
| Viewing Angle | 170 degrees |
| Wireless Transmission | Wired connection |
| Waterproof ingress protection | IP67 - Dust; Immersion up to 1 m |
| Reverse Image | Yes - Reverse Image |
| Parking grid lines | Yes |
| Infrared Illumination | LED Illumination |
| Built in Microphone | No |
| Connector Type | RCA Cable |
| Modulation | NTSC only |
| Operation Voltage | 12-15 Volt DC |
| Battery Powered | Hard wired |
| Color | Black |
| Warranty | 1 Year |
| UPC Code | 794504210156 |
| Return period | 30 days |
| Exchange period | 30 days |
