DISCONTINUED - Boyo VTL422C Zinc Metal Bar type Black License Plate Camera

DISCONTINUED - Boyo VTL422C Zinc Metal Bar type Black License Plate Camera

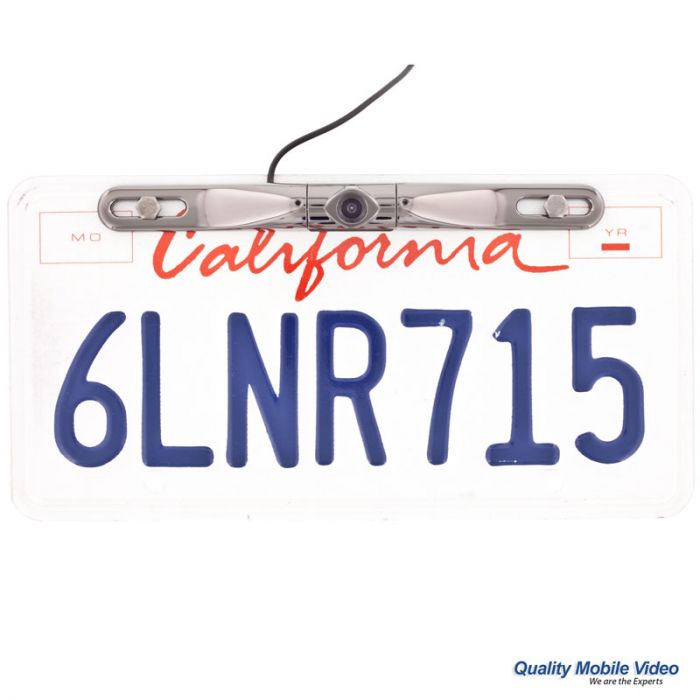

Boyo VTL422C License Plate Car Camera - Front with plate

More Views

Ships Free!

Overall Rating 4.7 (Based on 2 reviews)

Boyo VTL422C Product Highlights

  • Top Bar Mounting
  • 150 Degrees Viewing Angle
  • 1/4" CMOS image sensor
  • .1 LUX Low Light Sensitive
  • Black chrome finish
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Frequently Bought Together


Unit includes: Plate camera, Extension cable, Pigtail, Hardware and Instruction manual

Boyo VTL422C Zinc Metal Bar Type Black License Plate Camera
  • High sensitive 1/4" DSP Color CMOS built-in
  • 420 TVL Horizontal Resolution
  • Remarkable low Lux performance of 0.5 Lux at F2.0
  • Excellent Auto White Balance
  • Waterproof (IP67)
  • Automatic Reverse: When reverse gear is engaged, the system will start to work automatically
  • Beautiful design & anti-scratch coating
  • Imager: 1/4" Color CMOS (PC1030)
  • Effective Pixels: NTSC : 656(H) x 492(V)
  • Horizontal resolution: 420 TV Lines
  • Total number of pixels: 320K
  • Min.Illumination: 0.5 Lux at F2.0
  • Current Consumption: 50mA, Max 300mA
  • Video output: RCA connector, 1.0Vp-p, 75ohm
  • White balance: Auto
  • Viewing Angle: 150 Degrees wide angle view
  • Power source: DC12V +/- 10%
  • Operating Temp: -4 degrees F ~ 122 degrees F ( -20 degrees C ~ + 50 degrees C )
  • Storage Temp: -40 degrees F ~ 176 degrees F ( -40 degrees C ~ + 80,2011, degrees C )

  • Product Manual

Technical Specifications

Manufacturer Boyo
Part Number VTL422C
Auto Dimming No
Camera Sensor type CMOS
Back up camera type License Plate Camera
License Plate Camera Type Bar style
Camera diameter 1/4 inch
Viewing Angle 150 degrees
Wireless Transmission Wired connection
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Yes - Reverse Image
Parking grid lines No
Infrared Illumination No
Built in Microphone No
Trigger wire No
Auto on/off No
Connector Type RCA Cable
Modulation NTSC only
Operation Voltage 12 - 15 Volt DC
Battery Powered Hard wired
Cigarette Lighter Cord Included No
Color Black
Case included No
Built in Speakers No
Overall Height 0 Inches
Overall Length 0 Inches
Overall Width 0 Inches
Warranty 1 Year
UPC Code 689076306812

Customer Reviews

Top quality camera
Review by
Install (5 star for easy)
I wanted a high quality camera and this fits the bill very nicely. This camera is built to last, heavy and feels solid. I like the fact that it has the switches to turn on and off reverse image and grid lines. I might get one of these for the front of my vehicle. (Posted on 11/27/2012)
Great CMOS camera
Review by
Install (5 star for easy)
This camera has a great picture for a cmos camera and I'm very happy with it but im wondering for the price if i should have paid a little extra for the ccd version. Great camera none the less and works good at night despite not having infrared. (Posted on 6/11/2012)

Write Your Own Review

You're reviewing: DISCONTINUED - Boyo VTL422C Zinc Metal Bar type Black License Plate Camera

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Install (5 star for easy)

Ask questions receive answers.

Have a question? Go ahead and ask anything. We are here to help.

Please login to ask a product question

Ships Free!
Your Price: $59.99
