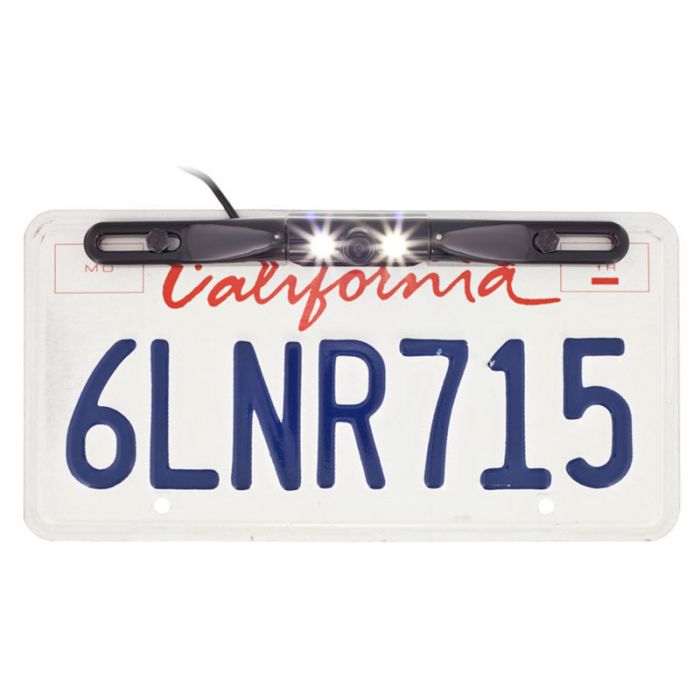

DISCONTINUED - Boyo VTL422HDL Metal Bar type License Plate Back up Camera with LED illumination - Black
$106.99
Out of stock
SKU
VTL422HDL
Expert Knowledge
Talk to a specialist
- Bar type license plate camera
- 175 Degrees Viewing Angle
- 1/4" High definition CCD sensor
- 3 Watt LED's for illumination in complete darkness
- Black glossy finish
Unit includes: License plate camera, Extension cable, Hardware and Instruction manual
Boyo VTL422HDL Metal Bar type License Plate Back up Camera with LED illumination - Black features:
Boyo VTL422HDL Metal Bar type License Plate Back up Camera with LED illumination - Black features:
- High sensitive 1/4" DSP Color CCD built-in
- 540 TVL Horizontal Resolution
- 175 Degree wide angle view
- Remarkable low Lux performance of 0.5 Lux at F2.0
- Two super bright 3 watt LED's to illuminate area in complete darkness
- Reverse and Non-reverse switch so camera can be used in front or rear of vehicle
- Parking grid line switch so grid can be turned on or off
- Beautiful design & anti-scratch coating
- Imager: 1/4" Color HD CCD
- Effective Pixels: NTSC : 728 (H) x 488 (V)
- Excellent Auto White Balance
- Waterproof (IP67)
- Total number of pixels: 400K
- Current Consumption: 50mA, Max 100mA
- Video output: RCA connector, 1.0Vp-p, 75ohm
- Power source: 7Vdc - 24Vdc
- Operating Temp: -4 degrees F ~ 122 degrees F ( -20 degrees C ~ + 50 degrees C )
- Storage Temp: -40 degrees F ~ 176 degrees F ( -40 degrees C ~ + 80 degrees C )
| Manufacturer | Boyo |
|---|---|
| Part Number | VTL422HDL |
| Camera Sensor type | CCD |
| Back up camera type | License Plate Camera |
| License Plate Camera Type | Bar style |
| Camera diameter | 1/4 inch |
| Viewing Angle | 175 degrees |
| Wireless Transmission | Wired connection |
| Waterproof ingress protection | IP67 - Dust; Immersion up to 1 m |
| Reverse Image | Yes - Reverse Image |
| Parking grid lines | Yes |
| Infrared Illumination | LED Illumination |
| Built in Microphone | No |
| Connector Type | RCA Cable |
| Modulation | NTSC only |
| Operation Voltage | 12-24 Volt DC |
| Battery Powered | Hard wired |
| Color | Black |
| Warranty | 1 Year |
| UPC Code | 689076351614 |
| Return period | 30 days |
| Exchange period | 30 days |
