Boyo VTM5000 5 inch LCD Monitor with Pedestal Stand and Headrest Shroud

Boyo VTM5000 5 inch LCD Monitor with Pedestal Stand and Headrest Shroud

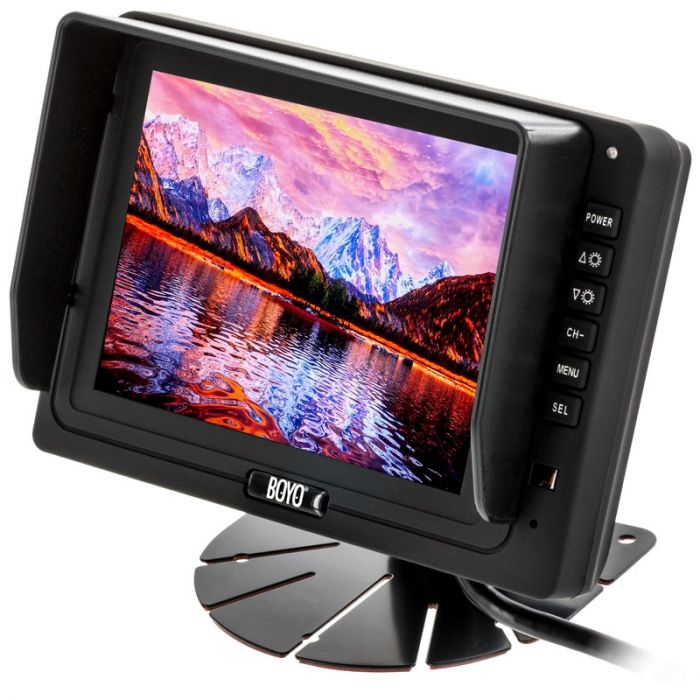

Boyo VTM5000 5 inch LCD Monitor with Pedestal Stand and Headrest Shroud - Main

More Views

Ships Free!

Overall Rating 5 (Based on 1 reviews)

Boyo VTM5000 Product Highlights

  • Built in Speaker
  • 3 Audio Video Inputs
  • Fan Mount Included
  • Sun Shield Included
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Frequently Bought Together


Unit includes: Connectors

Boyo (Vision Tech) VTM5000 Universal 5 inch LCD Wide Angle View Monitor with Pedestal Stand and Headrest Shroud
  • 5" Digital Full Color LCD Monitor
  • TFT LCD monitor with wide angle view and high resolution display
  • Picture image may be adjusted for horizontal, vertical, and normal viewing
  • Select from 3 languages for user operation
  • Automatic backlighting for buttons
  • Multiple video formats available: AUTO/ PAL/ NTSC
  • Mounting Options: Base Support/ Flush Mount (Including Detaching Piece)
  • Full Function Remote Control
  • Sun Shield
  • Fine and Sharp Color Picture
  • Multiple Camera Inputs
  • Reverse Gear Activated Screen
  • Built-in Speaker
  • Up to 3 AV inputs
  • Operates from 12-32V. Supports 12V or 24V automobile battery.

  • Audio Output: 1W
  • Loudpseaker: One 4.0cm round
  • Power Supply: Automobile storage battery (12-32V)
  • Power Consumption: <7W
  • Outer Dimensions (Without Flush Mount): 5.81" L x 1.04" W x 4.29" H
  • Outer Dimensions (With Flush Mount): 6.49" L x 1.15" W x 4.96" H
  • Dot Pitch: 0.0529 H x 0.1587 V
  • Resolution: 640 x 3 RGB x 480
  • Color Depth: 24 Bit
  • Display Colors: 16.7M dithering
  • Contrast: 500:1
  • Brightness: 200 cd/m2
  • Viewing Angle (degrees): Up-50, Down-70, Right and Left-70

  • Product Manual

Technical Specifications

Manufacturer Boyo
Part Number VTM5000
LCD Screen Size 5 inch - 6 inch
Native Screen Resolution 640 x 480
Widescreen Display 4:3 Normal Aspect Ratio
LCD back light type CCFL
LCD Screen Brightness 300 Nit
Swivel Screen Yes
Touchscreen No
Modulation NTSC and PAL
Built-in DVD Player No
Dual DVD capable No
Last Position Memory No
Anti-Shock No
Headphone Transmitter No
Headphone Jack No
Built in FM Modulator No
Built in Speakers Yes
HDMI input No
VGA input No - VGA input
Audio Video inputs 3 Video Inputs
Audio Video Outputs No
Composite video input No
Front mounted auxiliary input No
USB input No
SD Card input No
Phone Mirroring No
Housing material Plastic
Slide track on back Yes
Mounting thread for stand mount Yes
Mount included Yes, Pedistal stand
Trigger wire Yes
Image Flip Function Image rotate
Quad Screen No
Cigarette Lighter Cord Included No
Operation Voltage 12 - 24 Volt DC
Ac Adapter included No
Headrest Shroud included Yes
Headrest Type No
Zipper security cover No
Built in Game System No
Wireless Remote Control Yes
Monitor Color Black
Color Black
Overall Height 0 Inches
Overall Length 0 Inches
Overall Width 0 Inches
Warranty 1 Year
UPC Code No

Customer Reviews

A winner!
Review by
Install (5 star for easy)
Great service from Quality Mobile Video. Monitor is well-designed and remote was helpful in makiing initial adjustments. (Posted on 2/21/2014)

Write Your Own Review

You're reviewing: Boyo VTM5000 5 inch LCD Monitor with Pedestal Stand and Headrest Shroud

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Install (5 star for easy)

Ask questions receive answers.

Posted by William Layman, Wednesday, June 12, 2013


Does this monitor have the capability to reverse image on 1 or more inputs?


  • Posted by Salvador Diaz on Wednesday, June 12, 2013

    This monitor will only display ONE image at all times, but it does have the ability to reverse an image.
