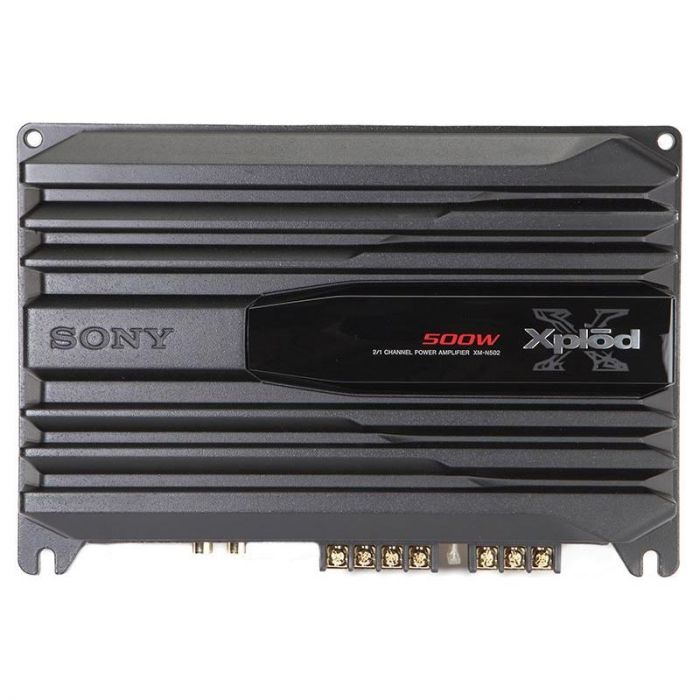

DISCONTINUED - Sony XM-N502 500 Watt Class AB 2-Channel Amplifier
$96.99
Out of stock
SKU
XM-N502
Expert Knowledge
Talk to a specialist
- 500 Watts Max Power
- 2-Channel Amplifier
- Super compact design
- Pulse Width Modulated MOSFET Power supply
- Class AB Design Offers High-Quality Sound
- Built in Low-pass filter
Unit includes: 4-Channel power amplifier, Mounting hardware, and Instruction manual
Sony XM-GS400 700 Watt Class D 4-Channel Amplifier
RMS Power Rating:
Maximum Dynamic Power Rating:
Sony XM-GS400 700 Watt Class D 4-Channel Amplifier
- Features:
- 500 Watts Max Power
- Pulse Width Modulated MOSFET Power supply
- Compact Design for Versatile Installation Options without compromising sound quality
- Class-AB design for excellent sound quality
- CEA-2006 Compliant amplifier for true power output
- 3-Way Protection circuit senses internal temperature and automatically lowers input level to prevent heat damage. Short circuit protection prevent damage when speaker leads are shorted. Overload protection prevent damage from low impedance or blown woofers.
- Low Pass filter: 80Hz at 18dB per octave
- Bridge mode allows to run this as a three channel or two channel amplifier
- 2 channel RCA inputs accepts up to 6 volt input signals
- Gold plated terminals for all connections
- Frequency Response: 10Hz to 50KHz (Channels 1 - 4)
- Total Harmonic Distortion (4 Ω): < 0.05% (1kHz)
- Signal-to-Noise Ratio (IHF-A Weighted, at 1 kHz): >93dB
- Dimensions: 10-11/16" (W) x 2-3/16" (H) x 7-5/16" (D)
RMS Power Rating:
- 4 ohms: 65 watts x 2 channels
- 2 ohms: 85 watts x 2 channels
- 4 ohms: 175 watts x 1 channel (Bridged)
Maximum Dynamic Power Rating:
- 4 ohms: 150 watts x 2 channels
- 4 ohms: 500 watts x 1 channel (Bridged)
| Manufacturer | Sony |
|---|---|
| Part Number | XM-N502 |
| Amplifier Topology Class | Class AB |
| Number of Channels | 2 Channel |
| Amplifier Bridging | Bridgable @ 4 ohms |
| Minimum Impedance in Bridged Mode | 4 ohm |
| Minimum Impedance in Un-Bridged Mode | 2 ohm |
| Strappable Amplifier | No |
| RCA Pre-amp Audio outputs | 1 Pair |
| Preamp voltage | 6 volts |
| Speaker level inputs | No |
| Gain Control | Yes |
| Bass Knob / Remote Gain | No |
| Built in Crossover | Low-pass |
| Cooling Fan | No |
| Color | Black |
| Warranty | 1 Year |
| CEA2006 Compliant | No |
| UPC Code | 027242867222 |
| Return period | 30 days |
| Exchange period | 30 days |
