Metra XSVI-5520-NAV Car Stereo Interface harness and control box for 2006 - and Up Ford with Navigation
$65.99
In stock
SKU
XSVI-5520-NAV
- Audio interface harness and control box for 2007 and Up Ford vehicles
- Complete car stereo integration harness for Non-Amplified audio systems
- Can be used when removing the Sony/ THX audio systems
- Provides RAP (Retained Accessory Power), navigation outputs like reverse, parking brake, VSS, etc., and high level speaker input
- High level speaker inputs for connections to factory speakers
- Includes a prewired ASWC-1 connector
Unit includes: AX-ADXSVI Interface Box Wiring Harness

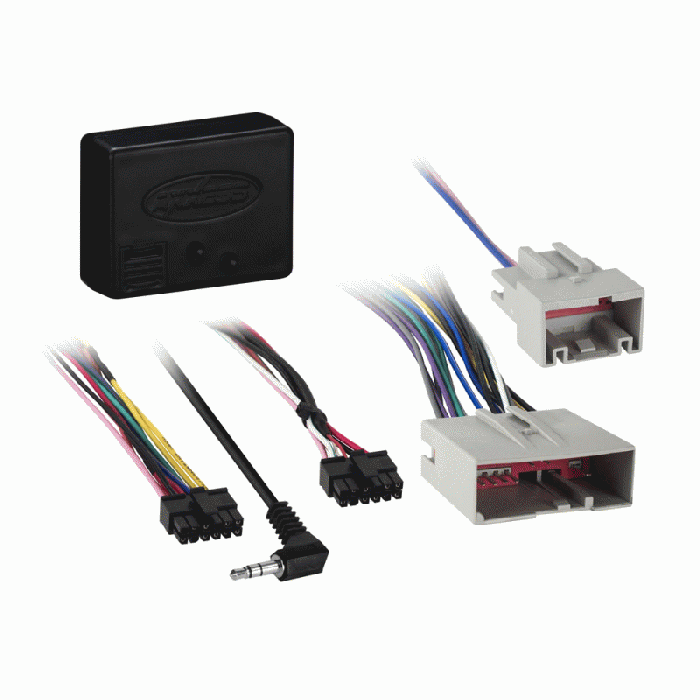

Metra XSVI-5520-NAV Car Stereo Interface harness and control box for 2006 - and Up Ford with Navigation
Connections:
Compatible With:
Ford
Lincoln
Mazda
Mercury
Metra XSVI-5520-NAV Car Stereo Interface harness and control box for 2006 - and Up Ford with Navigation
- Features
- Complete car stereo integration harness for Non-Amplified audio systems
- Can be used when removing the Sony/ THX audio systems
- Provides RAP (Retained Accessory Power), navigation outputs like reverse, parking brake, VSS, etc., and high level speaker input
- High level speaker inputs for connections to factory speakers
- Includes a prewired ASWC-1 connector
- 12 volt 10 amp car accessory
- Allows the user to connect a USB device (via some additional connector)
Connections:
- Yellow – 12V Constant
- Red – 12V Accessory
- Black - Ground
- Orange – Dash Light Dimmer/Illumination
- Blue - Power antenna turn on (+)
- Light Green - Parking brake wire(-)
- Blue with Pink Stripe - VSS (Vehicle speed sensor)
- Green with Purple Stripe - Reverse wire (+)
- Green – Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White – Left Front Speaker (+)
- White with Black Stripe – Left Front Speaker (-)
- Purple – Right Rear Speaker (+)
- Purple with Black Stripe – Right Rear Speaker (-)
- Gray – Right Front Speaker (+)
- Gray with Black Stripe – Right Front Speaker (-)
Compatible With:
Ford
- 2007 - 2010 Ford Edge
- 2008 - 2012 Ford Escape
- 2007 - Up Ford Expedition
- 2008 - 2012 Ford Flex
- 2008 - 2011 Ford Focus
- 2010 - 2012 Ford Fusion
- 2009 - 2012 Ford F-150
- 2013 Ford F150 STX/FX2 base/XLT base
- 2014 Ford F150 STX/XLT base
- 2008 - 2012 Ford F250/350/450/550
- 2013 - and Up Ford F250/350/450/550
- 2009 - Up Ford Mustang
- 2010 - 2012 Ford Taurus
Lincoln
- 2007 - 2010 Lincoln MKX
- 2007 - 2009 Lincoln MKZ
- 2007 - up Lincoln Navigator (when replacing an amplified system)
Mazda
- 2008 - 2011 Mazda Tribute
Mercury
- 2008 - 2011 Mercury Mariner
- 2010 - 2011 Milan
Manufacturer | Metra |
---|---|
Part Number | XSVI-5520-NAV |
Wiring harness function | Replace Factory Radio |
Warranty | 1 Year |
UPC Code | 086429179831 |
Return period | 30 days |
Exchange period | 30 days |
