Metra XSVI-5524-NAV 2011 - and Up Ford Radio interface with Navigation outputs

Metra XSVI-5524-NAV 2011 - and Up Ford Radio interface with Navigation outputs

Axxess XSVI-5524-NAV 2011 - and Up Ford Car Stereo interface - Main

More Views

Metra
Free Shipping on orders $99+

Overall Rating 0 (Based on 0 reviews)

Metra XSVI-5524-NAV Product Highlights

  • Provides all connections to factory wiring and makes installing an aftermarket stereo very easy in select 2011 - and Up Ford vehicles
  • Provides accessory output for databus signals (12-volt 10-amp capable output)
  • Retains R.A.P. (retained accessory power) while doors remain closed
  • Interface is designed to be used with factory non-amplified audio systems
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
Save money on all Metra installation hardware when you purchase more than one installation piece of hardware!

Buy everything you need as a package and SAVE!

Overview

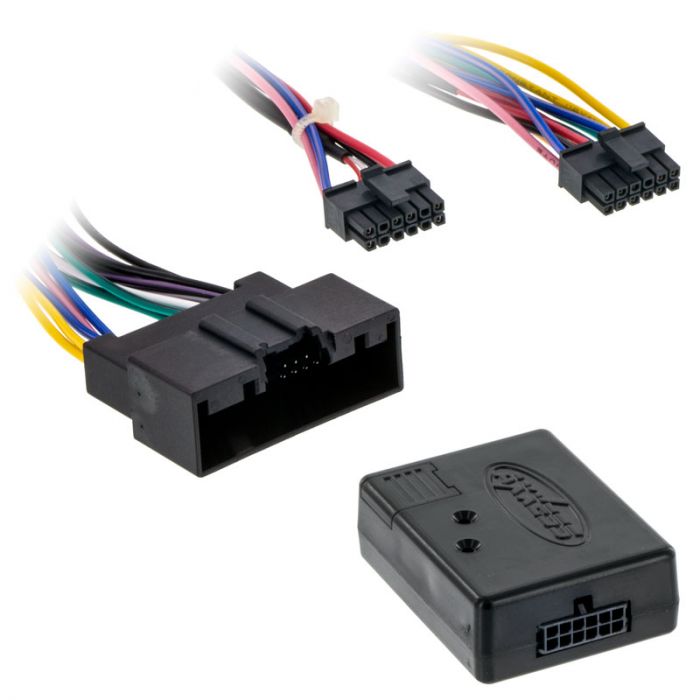

Unit includes: A) Interface, B) 16-pin to 12-pin Power and speaker harness, and Instruction manual

Metra XSVI-5524-NAV 2011 - and Up Ford Radio interface with Navigation outputs

Interface Features:
  • Provides all connections to factory wiring and makes installing an aftermarket stereo very easy in select 2011 - and Up select Ford vehicles
  • Provides accessory output for databus signals (12-volt 10-amp capable output)
  • Retains R.A.P. (retained accessory power) while doors remain closed so you can continue to listen to the radio until doors open
  • Interface is designed to be used with non-amplified audio systems
  • Perfect for use with aftermarket navigation system as interface provides navigation system outputs (parking brake, reverse, mute, V.S.S.) from databus signals
  • Includes prewired ASWC Steering wheel interface harness (ASWC Steering wheel interface not included)
  • 4 - High level speaker inputs makes connections for aftermarket car stereo's to factory speakers easy
  • USB firmware up-datable
  • Retains balance and fader
  • Note: Does not retain SYNC


Connections:
  • Yellow - 12V Constant
  • Red - 12V Accessory
  • Black - Ground
  • Orange - Radio illumination (+)
  • Blue with White stripe - Amplifier turn on
  • Light Green - Parking brake
  • Blue with Pink Stripe - VSS (Vehicle speed sensor)
  • Green with Violet Stripe - Reverse trigger (+)
  • Green - Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White - Left Front Speaker (+)
  • White with Black Stripe - Left Front Speaker (-)
  • Purple - Right Rear Speaker (+)
  • Purple with Black Stripe - Right Rear Speaker (-)
  • Gray - Right Front Speaker (+)
  • Gray with Black Stripe - Right Front Speaker (-)


Kit Components:
  • A) XSVI-6524-NAV interface
  • B) Power and speaker harness
  • C) Instruction manual


Tools Required:

Optional parts:

Vehicle Applications:

Ford:
  • 2011 - and Up Edge (With 4.2” screen)
  • 2011 - and Up Explorer (With 4.2” screen)
  • 2013 - and Up F-150 (With 4.2” screen)
  • 2011 - and Up Fiesta (Without MyFord Touch, with SYNC)
  • 2012 - and Up Focus (Without MyFord Touch, with SYNC)


Technical Specifications

Manufacturer Metra
Part Number XSVI-5524-NAV
Integration Module N/A
Steering Wheel Control Input N/A
RCA Pre-amp Audio inputs N/A
Speaker level inputs N/A
Warranty 1 Year
Vehicle Year N/A
Vehicle Brand N/A
Vehicle Model N/A
UPC Code 086429245277
