DISCONTINUED - Hifonics ZRX3216.1D Zeus Series 3200 Watts Class D Monoblock Amplifier

DISCONTINUED - Hifonics ZRX3216.1D Zeus Series 3200 Watts Class D Monoblock Amplifier

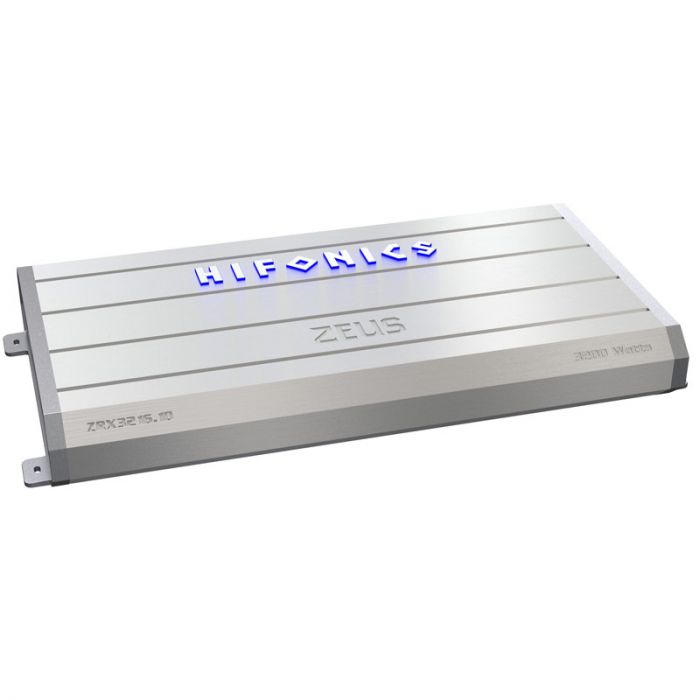

Hifonics ZRX3216.1D Zeus Series Mono Block Amplifier - Main

More Views

Hifonics
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Hifonics ZRX3216.1D Product Highlights

  • ZRX3216.1D Zues ZRX Series Monoblock Class-D Amplifier with 3200 Watts of power!
  • SPC (Simpatico coil) and ultra-Fi Pulse width modulated MOSFET power supply
  • LED indicators: blue for power and red for protect
  • Bass boosts from 0 to +10dB at 45 Hz
  • Equipped with soft start sound function that helps reduce the load and makes start-up easier
  • Requires 0 gauge power and ground wiring for installation
  • Provides four way protection circuitry, which includes thermal, overload, DC and speaker short protection
  • 800 Watts x 1 channel at 4 ohms
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Buy everything you need as a package and SAVE!

Overview

Unit includes: Class D Mono Block Car Amplifier, Bass control knob, Extension cable, Mounting hardware, and Instruction manual

Hifonics ZRX3216.1D Zeus Series 3200 Watts Class D Mono Block Amplifier
    Features:
  • Zues ZRX Series Monoblock Class-D Amplifier with tons of power!
  • Designed with SPC (Simpatico coil) and ultra-Fi Pulse width modulated MOSFET power supply
  • Military grade PCB construction
  • LED indicators: blue for power and red for protection
  • Includes wired HFR-3 remote bass level control
  • Equipped with soft start sound function that helps reduce the load and makes start-up easier
  • Maximum Power output is 3200 watts
  • Mono channel operation
  • Provides four way protection circuitry, which includes thermal, overload, DC and speaker short protection
  • Integrated heavy-duty aluminum alloy vented heat sink for maximum heat dissipation
  • Silver nickel-plated RCA level inputs
  • Silver nickel-plated screw terminals
  • Low Level RCA Inputs and Outputs
  • Requires 0 gauge power and ground wiring for installation
  • Input sensitivity is 200 mV to 6V (variable level)
  • Subsonic filter: 10 Hz - 40 Hz at 24dB
  • Variable low-pass filter: 40-300 Hz, 24 dB/ octave
  • Bass EQ boosts from 0 to +12dB at 45 Hz
  • Damping factor is greater than 200 and frequency response is 15-250 Hz
  • 3200 Watts Class D Mono Block Zeus Series Amplifier for Vehicles
  • Dimensions: 17-3/8" (L) x 2-7/16" (H) x 10" (W)

Maximum Power Rating:
  • 4 ohms: 800 watts x 1 channel
  • 2 ohms: 1600 watts x 1 channel
  • 1 ohm: 3200 watts x 1 channel


Technical Specifications

Manufacturer Hifonics
Part Number ZRX3216.1D
Amplifier Topology Class Class D
Number of Channels 1 Channel
Total Peak Power Output 3001 - 3500 watts
Total RMS Power Output 1000 - 1500 Watts
Amplifier Bridging Not Bridgable
Minimum Impedance in Bridged Mode 1 ohm
Minimum Impedance in Un-Bridged Mode 1 ohm
Strappable Amplifier No
Strappable Power Output No
RCA Pre-amp Audio inputs No
RCA Pre-amp Audio outputs 1 Pair
Preamp voltage 6 volts
Speaker level inputs No
Gain Control Yes
Bass Knob / Remote Gain Yes
Built in Crossover Low-pass
Cooling Fan No
Color Silver
Warranty 1 Year
Recommended Power Wire Gauge No
UPC Code 806576223856
