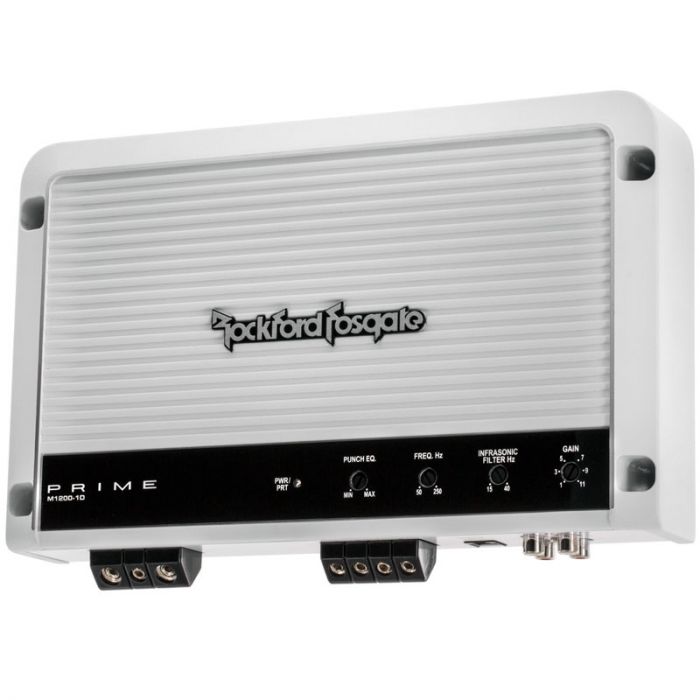

Rockford Fosgate M1200-1D 1200 Watt Marine Class-D Mono Amplifier
$499.99
In stock
Only 1 left
SKU
M1200-1D
Expert Knowledge
Talk to a specialist
- It has 12dB/octave Butterworth crossover and 4 Gauge power/ground connectors.
- It features a cast aluminum heatsink for effective heat dissipation.
- It comes with top mounted controls for ease of use.
- It features a tri-stage protection covers thermal, over-current and short circuits.
- It includes an infrasonic filter and remote PLC (Punch Level Control).
- It delivers 12dB/octave Butterworth crossover and 4 Gauge power/ground connectors.
Unit includes: Car Amplifier, Mounting hardware, and Instruction manual
Rockford Fosgate M1200-1D 1200 Watt Class-D Mono Amplifier:
Features:
Inputs and Outputs:
RMS Power Output:
Built in Crossover:
Dimensions:
Rockford Fosgate M1200-1D 1200 Watt Class-D Mono Amplifier:
Features:
- 12dB/octave Butterworth crossover
- 4 Gauge power/ground connectors
- Cast aluminum heatsink
- Top mounted controls
- Marine grade 2-part epoxy coated PCB
- On-board Punch EQ with +18dB boost @ 45Hz.
- Tri-stage protection covers thermal, over-current and short circuits.
- Infrasonic filter
- Remote PLC (Punch Level Control)
- 1 Year Standard Warranty
Inputs and Outputs:
- 1 RCA pair low level input
- 1 RCA pair low level output
- Block 4 AWG speaker input connections
- Block 12 AWG speaker output connections
RMS Power Output:
- 4-Ohm: 600 Watts x 1
- 2-Ohm: 900 Watts x 1
- 1-Ohm: 1200 Watts x 1
Built in Crossover:
- Variable 50Hz - 250Hz @ 12dB/octave
Dimensions:
- Overall Dimensions: 1.97” (H) x 6.77” (D) x 11.06” (W)
| Manufacturer | Rockford Fosgate |
|---|---|
| Part Number | M1200-1D |
| Amplifier Topology Class | Class D |
| Number of Channels | 1 Channel |
| Amplifier Bridging | Bridgable @ 4 ohms |
| Minimum Impedance in Bridged Mode | 4 ohm |
| Minimum Impedance in Un-Bridged Mode | 1 ohm |
| Strappable Amplifier | No |
| RCA Pre-amp Audio outputs | 1 Pair |
| Preamp voltage | 4 volts |
| Speaker level inputs | No |
| Gain Control | No |
| Bass Knob / Remote Gain | No |
| Built in Crossover | High-pass, Low-pass |
| Cooling Fan | No |
| Color | White |
| Warranty | 1 Year |
| Recommended Power Wire Gauge | 8 Gauge |
| CEA2006 Compliant | No |
| UPC Code | 780687340797 |
| Return period | 30 days |
| Exchange period | 30 days |
