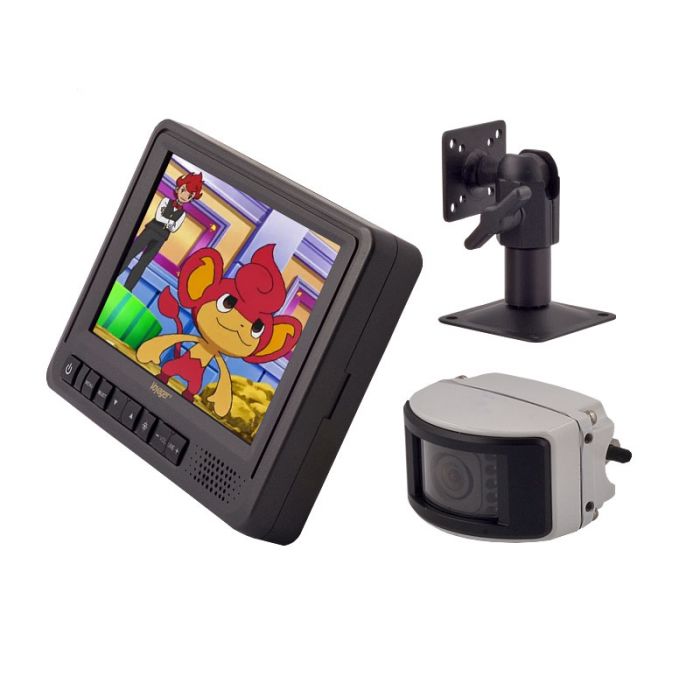

RV Back Up System Combo Kit - Audiovox AOS701 (Voyager AOM713 Rear View 7 inch Monitor, Voyager VCCS150 CCD Camera and PanaVise 727-04 Pedestal Mount)

RV Back Up System Combo Kit - Audiovox AOS701 (Voyager AOM713 Rear View 7 inch Monitor, Voyager VCCS150 CCD Camera and PanaVise 727-04 Pedestal Mount)

RV Back Up System Combo Kit - Audiovox AOS701 (Voyager AOM713 Rear View 7 inch Monitor, Voyager VCCS150 CCD Camera and PanaVise 727-04 Pedestal Mount)

More Views

Item sku:8086
Voyager

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Voyager AOS701 Product Highlights

  • Great for RVs
  • Pedestal Stand Included
  • 60 Ft Extension Cable Included
  • 3 Video Inputs
  • Color Camera with Night Vision

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 800-363-0096
  • Fast Free Same Day Shipping - Over $99

Overview

Unit includes: Connectors

RV Back Up System Combo Kit - Audiovox AOS701 (Voyager AOM713 Rear View 7 inch Monitor, Voyager VCCS150 CCD Camera and PanaVise 727-04 Pedestal Mount)
  • Voyager AOM713
  • 7 inch Rear View Monitor with 3 Camera Inputs
  • 12 Volt and 24 Volt power system
  • NTSC and PAL video signal compatible
  • Manual (pushbutton) or automatic (trigger) source selection
  • Turn-signal (pulsed DC) compatible trigger inputs (AV2, AV3)
  • Auto power on (standby)
  • Auto Day/Night brightness modes
  • On Screen Display (OSD) for AV source, picture adjustment and volume level
  • Non-volatile memory for picture and volume adjustment settings
  • Integrated audio speaker
  • Energy Efficient White LED Backlight
  • Removable sun-visor included
  • Multiple mounting options (AMPS compatible)
  • E-Mark certified

  • Weight (Lbs): 2.75
  • Overall Dimensions: 7-3/4"W x 5-1/4"H x 1-1/4"D
  • Diagonal Screen Size (Inches): 7
  • Aspect Ratio: 16:9
  • Resolution: 480 x 324
  • Brightness (cd/m2): 500 nit
  • Contrast Ratio: 300:1
  • Viewing Angles (V/H): 100/120
  • Power System: 12VDC
  • Camera Inputs: 3
  • Screen Capabilities: Single
  • Triggers: Three 12V
  • Slimline Profile: Yes
  • Built-in Speakers: Yes
  • Backlit Controls: Yes
  • Video Output Signal Format: NTSC/PAL
  • IR Repeater: Yes
  • Removable Sunvisor Included: Yes
  • e-Mark Certified: Yes
  • RoHS Compliant: Yes

  • Product Manual
  • Troubleshooting Guide


  • Voyager VCCS150
  • Rear View CCD Color Camera
  • 150 degrees Wide Angle Lens
  • Compact lightweight aluminum die cast body
  • Overall Dimensions: 2.7"W x 1.7"H x 5"D
  • VCCS150
  • White
  • VCCS150B
  • Black
  • Weight (Lbs): 1
  • Overall Dimensions: 2.7"W x 1.7"H x 2.5"D
  • Camera Type: CCD
  • B&W or Color: Color
  • Rear or Side: Rear
  • Power System: 12VDC
  • Waterproof: Yes IPX7
  • Viewing Angle (degrees): 150
  • IR LED Low Light Enhancement: Yes
  • Built-in Microphone: Yes
  • Video Output Signal Format: NTSC/PAL
  • Sensor (Inches): 1/3
  • Shutter: Electronic Iris
  • Image Orientation: Normal/Mirror
  • Impact Resistant Plastic Housing: No
  • Machined Aluminum Body: Yes

  • Product Manual
  • Troubleshooting Guide


  • PanaVise 727-04
  • Slimline Phone Mount 4 inch Rise Knob Adjustment Pedestal Mount
  • AMPS-compatible. Knob and set-screw adjusting option included.
  • Overall mount height (including shaft) is 4 inch (101.6mm)
  • 210 degrees Tilt, 360 degrees Turn & 360 degrees Rotation under the component
  • Aluminum, zinc and steel construction
  • Rectangular AMPS pattern: 30mm x 38mm (1.181" x 1.496") on center
  • Concave Standard Foot evenly distributes the mounting load, accommodates slightly irregular surfaces, will not crack, and measures 2.5 x 2.5 (63.5mm x 63.5mm)

Technical Specifications

Manufacturer Voyager
Part Number AOS701
LCD Screen Size 7 inch - 8 inch
Native Screen Resolution 480 x 324
Widescreen Display 16:9 Widescreen Display
LCD Screen Brightness 500 Nit
LCD back light type No
Auto Dimming No
Trigger wire No
NTSC/PAL NTSC and PAL
Slide track on back No
Image Flip Function No
Built in Speakers Yes
Stand Mount included No
Auto on/off Yes
Cigarette Lighter Cord Included No
Audio Video inputs No
Wireless Remote Control No
Monitor Type No
Mirror Mount Type No
Back up camera type Surface Mount Camera
Options No
Product Options No
Homelink No
Built in Bluetooth No
Reverse Image No
Camera Sensor type CCD
Camera diameter No
Viewing Angle 150 degrees
Parking grid lines No
Built in Microphone Yes
Infrared Illumination No
Waterproof ingress protection No
Battery Powered No
Case included No
Connector Type No
Wireless Transmission No
Color Black
Operation Voltage No
Warranty 1 Year
Vehicle Year N/A
Vehicle Brand N/A
Vehicle Model N/A
UPC Code No
