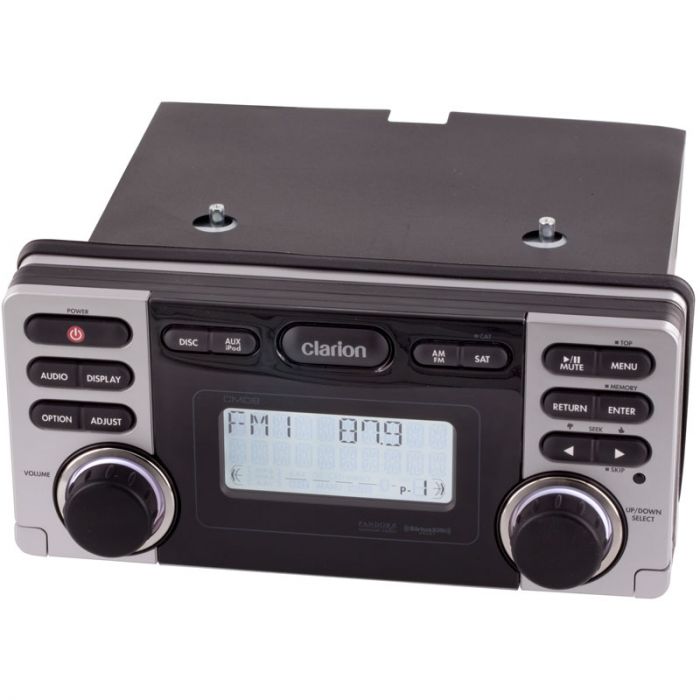

Clarion CMD8 Watertight Marine CD/MP3/WMA Receiver with USB

Description

Unit includes: Marine stereo, Wire harness, Radio back strap, Mounting hardware, and Instruction manual

Clarion CMD8 Watertight Marine CD/MP3/WMA Receiver with USB

Features:

Single DIN In-Dash Marine Stereo with CD and USB
Watertight housing that allows it to be mounted in a location that gets water splashes fresh or saltwater
Pandora Link integrates this marine stereo with your iPhone and Pandora Internet Radio
Large high visibility 2 Line 11 Segment LCD Display with White LED Back-light
Dual control knobs with white Back-light, controls functions such as volume and sound adjustments
Unit is compatible with multiple marine remote controls Waterproof Clarion MW1 Marine wired remote controls
Unit is compatible with multiple marine remote controls Waterproof Clarion MW4 Marine wired remote controls
AM/FM radio tuner
Beat-EQ with 4 sound fields: Bass-Boost, Impact, Excite, and Custom
Magna Bass Extend which emphasizes the deep bass range with dynamic sound
Speaker Power Output: 4 channels x 45 watts peak and 4 channels x 18 watts RMS
MP3, & WMA playback from CD's or USB
Subwoofer level and phase control
Satellite Radio ready with iTunes tagging requires SiriusXM SXV200V1 Connect Satellite Radio Tuner
iPod compatible with iPhone / iPod supplied USB cable
iPod Video compatible with the Clarion CCA-750 iPod cable
RCA auxiliary audio input

Media playback features:

Plays CD, CD-RW, CD-R, MP3, and WMA
Electronic shock protection with built in buffer
Plays MP1, MP2, MP3, WMA on USB or CD
CD text information, display artist and song information
MP3 ID3 tag information, display artist and song information
Pandora® Radio App Compatible with USB cable
Pandora® Thumbs up and Thumbs down Capable

Audio features:

Includes PLL synthesized AM & FM tuner with 18 FM & 6 AM preset stations memory
Local and distant FM radio receiving modes
Selectable USA, Australia and European radio frequencies sets
Rotary Knob Controls: Volume, Fader, Bass, Treble, Balance, DBass

Equalizer and Crossover settings:

Beat-EQ with 4 sound fields: Bass-Boost, Impact, Excite, and Custom
3-Band Parametric EQ with adjustable frequencies and Q
Bass adjustment: Selectable between 50Hz, 100Hz, 200Hz ± 7dB
Bass Q settings: 0.7, 1.0, 1.4, 2.0
Mid adjustment: Selectable between 500Hz, 1kHz, 2kHz ± 7dB
Mid Q settings: 0.7, 1.0, 1.4, 2.0
Treble adjustment: Selectable between 5kHz, 10kHz, 15kHz ± 7dB
Treble Q settings: 0.7, 1.0, 1.4, 2.0
High pass filter points: Full / 60Hz / 90 Hz / 120 Hz
Low pass filter points: Full / 60Hz / 90 Hz / 120 Hz
Magna Bass Extend: On / Off
Subwoofer phase and volume control

Inputs and outputs:

2 - RCA Audio 2 Volt preamp outputs (Front and Rear or Subwoofer)
1 - SiriusXM radio input
1 - RCA audio input
1 - Clarion Marine Remote Control input (Compatible with the Clarion MW1 or Clarion MW4)
1 - Antenna input
1 - USB input (Compatible with up to 32Gb)

Dimensions:

Single DIN chassis
Faceplate dimensions: 7-25/32"(W) x 3-19/32"(H)
Dimensions: 7-25/32"(W) x 8-6/32"(D) x 3-19/32"(H)
Recessed depth dimensions: 7"(W) x 6-5/8"(D) x 2"(H)

Specifications

More Information
Manufacturer	Clarion
Part Number	CMD8
Chassis Size	Single DIN
Illumination color	White
Faceplate features	None
Disc Playback	CD
Anti-Shock	Yes
Built in Bluetooth	No Bluetooth
NFC (Near Field Communication)	No
HD Radio	No
Radio Data Service - RDS	Yes
Satellite Radio	Sirius XM Ready
Front mounted auxiliary input	None
Audio Video inputs	1 Audio Input
USB input	Yes
SD Card input	No
Audio Formats	Mpeg-3, WAV, WMA
RCA Pre-amp Audio outputs	2 Pairs (Front, Rear/Sub)
Preamp voltage	2 volts
Steering Wheel Control	No
Built in Crossover	High-pass, Low-pass
Wireless Remote Control	Optional
Warranty	1 Year
UPC Code	729218019986
Return period	30 days
Exchange period	30 days
