Quality Mobile Video CVSF-E30 Universal 12 inch Touchscreen LCD Monitor with VGA and S-Video Inputs

Quality Mobile Video CVSF-E30 Universal 12 inch Touchscreen LCD Monitor with VGA and S-Video Inputs

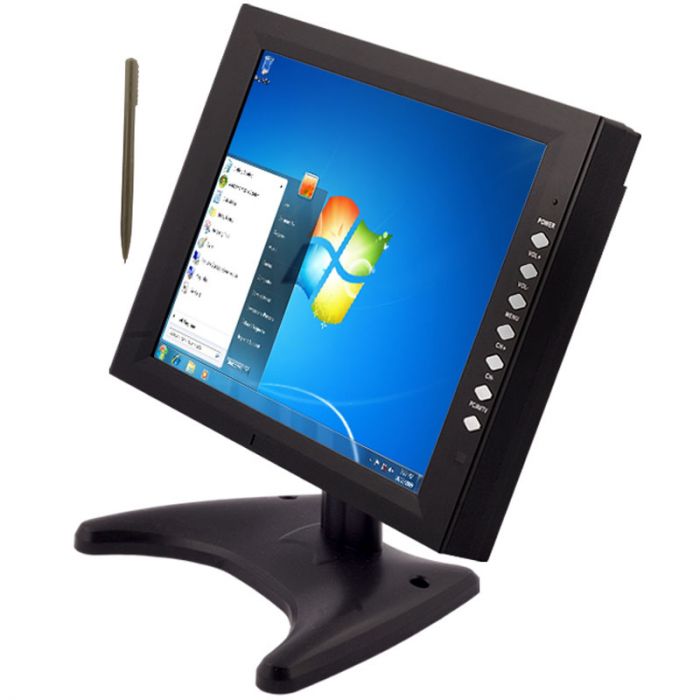

Quality Mobile Video CVSF-E30 12 inch VGA monitor with USB touchscreen - Main

More Views

Item sku:50209
Chinavasion

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Chinavasion CVSF-E30 Product Highlights

  • 12 inch LCD for use in your car or on your desk
  • Resolution: 640x480, 800x600 and 1024x768
  • VGA and S-Video to AV input
  • Adjustable pedestal stand included
  • Monitor can be mounted on walls for office or residential use

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 800-363-0096
  • Fast Free Same Day Shipping - Over $99

Overview

Unit includes: Software, Stylus and Connectors

Quality Mobile Video CVSF-E30 12 inch Touchscreen LCD Monitor with VGA and S-Video
    Features:
  • 12 inch LCD for use in your car or on your desk
  • High performing touch screen monitor with stylus pen control
  • Use it as an extra LCD Monitor on your desktop
  • With VGA and S-Video to AV input
  • You can also have a two monitor system installed
  • Can be used for surveillance cameras, computers, TV or electronic devices which have AV inputs
  • Monitor can be mounted on walls for office or residential use
  • Screen can be portable and viewed like a laptop
  • Adjustable pedestal stand included
    Specifications:
  • Primary Function: 12 inch TFT LCD touch screen monitor for computers
  • Screen: TFT LCD Touch Screen
  • Resolution: 640x480, 800x600 and 1024x768
  • Color Systems: PAL and NTSC
  • Tilt Adjustment Angle: 360 degrees left-right (Horizontal), 90 degrees up-down (Vertical)
  • Viewing Angle: 360 Horizontal; 90 Vertical
  • Inputs: DC 12V Power Cable, VGA, USB, 3.5mm L/R Jack Plug-In and S-Video (RCA)
  • On Board Buttons: Power ON/OFF, PC/AV/TV, Menu, Channel Left/Right and Volume +/-
  • Supported Operating Systems for Touchscreen: Windows 98SE to later
  • Power Source DC: 11.5V - 13V (2000 MA)
  • Power Source AC: 100V - 240V power adapter
  • Dimensions: 12.3" x 9.05" x 1.57" (313mm L x 230mm H x 40mm D)
  • Application Temperature: -40 degrees C ~ 60 degrees C
  • Receiving Channel: VHF1, VHF3, UHF (including cable TV wave band)
  • Audio Output: 150 mW
    Contents:
  • Power Adapter (100-240V 50/60hz)
  • Car Power Adapter
  • S-Video to AV Cable
  • Stylus
  • VGA 9 PIN Cable
  • Remote Control
  • Disk Driver (Touch Screen Software)
  • Mounting Bracket

Technical Specifications

Manufacturer Chinavasion
Part Number CVSF-E30
LCD Screen Size 11 inch - 12 inch
Native Screen Resolution 1024x768
Widescreen Display 16:9 Widescreen Display
LCD back light type CCFL
LCD Screen Brightness 350 Nit
Swivel Screen Yes
Touchscreen Yes
NTSC/PAL NTSC and PAL
Built-in DVD Player No
Dual DVD capable No
Last Position Memory No
Anti-Shock No
Headphone Transmitter No
Headphone Jack No
Built in FM Modulator No
Built in Speakers Yes
HDMI input No
VGA input Yes - VGA input
Audio Video inputs 1 Audio Video Input
Audio Video Outputs No
Composite video input Yes
Front mounted auxiliary input None
USB input Yes
SD Card input No
Housing material No
Slide track on back Yes
Mounting thread for stand mount Yes
Stand Mount included Yes, Pedistal stand
Trigger wire No
Image Flip Function No
Quad Screen No
Cigarette Lighter Cord Included Yes
Operation Voltage 12 - 15 volt
Ac Adapter included Yes
Headrest Shroud included No
Headrest Type No
Zipper security cover No
Built in Game System No
Wireless Remote Control Yes
Monitor Color Black
Color Black
Warranty 1 Year
UPC Code No
