Kenwood DDX672BH Double DIN In-Dash 6.95" LCD Touchscreen DVD Receiver with HD Radio and Bluetooth

Kenwood DDX672BH Double DIN In-Dash 6.95" LCD Touchscreen DVD Receiver with HD Radio and Bluetooth

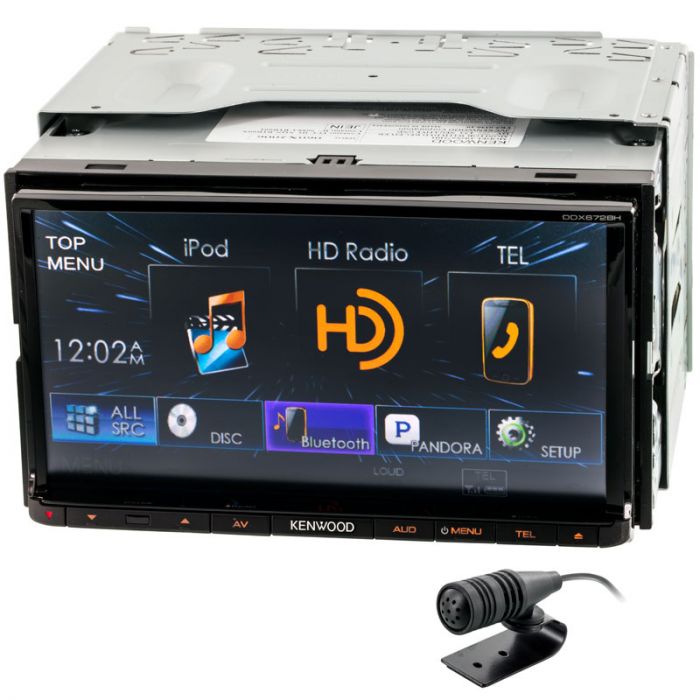

Kenwood DDX672BH Double DIN Car Stereo - Main


More Views

Item sku:DDX672BH

Overall Rating 4.5 (Based on 2 reviews)

Would you recommend this to a friend?

Write a review

Kenwood DDX672BH Product Highlights

  • 6.95" WVGA monitor
  • Built in DVD player
  • Touch screen control
  • Built in Bluetooth
  • HD radio tuner
  • 3 - 4 volt preamp outputs (Front, Rear and Subwoofer)
  • USB port
  • Steering wheel control input
  • SiriusXM Satellite Radio Ready
  • iDataLink Maestro compatible

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 800-363-0096
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!


Unit Includes: Double-DIN DVD receiver, Radio cage, Trim ring, Wiring harness, Parking brake wire, 2 Radio removal tools, 6 Pan-head ISO-mount screws, 6 Flat-head ISO-mount screws, Instruction Manual, Warranty card

Kenwood DDX672BH In-Dash 6.95" Double-DIN LCD Touchscreen DVD Receiver with Bluetooth

  • 6.95 inch Wide VGA Color LCD Display with LED backlight
  • Motorized tilt with rear mounted DVD player
  • Touch screen control
  • LCD screen Resolution: 800 x 480 Pixels
  • Variable button illumination for perfect matching of your factory button color
  • Customizable background and menus
  • Multi-language menu (18 Languages (English, Spanish, French and others)
  • Mosfet Power amplifier with Output: 4 channels x 50 watts Peak and 4 channels x 22 watts RMS
  • App Mode for iPhone allows you to directly control compatible apps from the radio
  • Optional remote control KNA-RCDV331
  • SIRI Eyes free

Media playback features
  • Region 1 DVD player
  • Electronic shock protection with built in buffer
  • MP3/WAV/iTunes┬« AAC Audio Playback on CD/DVD/USB
  • MP3 ID3 tag information, display artist and song information
  • Jpeg image playback on USB/SD
  • Pandora┬« Radio App Compatible with proper cable (iPhone and Android)
  • iPhone App Mode
  • Sirius satellite radio input requires SXV300V1 satellite radio tuner
  • Steering wheel control input

Audio features
  • 96 kHz/24-bit D/A Converter for high quality digital to analog conversion
  • 5-band parametric equalizer with 8 preset and custom options (Drive EQ / Natural / Rock / Pops / Easy / Powerful / Top 40 / Jazz)
  • High-Pass filter with variable slopes and crossover frequencies (Adjustable from 63 to 180 Hz)
  • Low-Pass filter with variable slopes and crossover frequencies (Adjustable from 55 to 160 Hz)
  • Variable subwoofer level control with selectable Low-Pass digital crossover filter 55, 85, 120, 160 Hz
  • Speaker size setup for perfect crossover mapping from subwoofer to door speakers (Standard, Narrow, Middle or Wide speaker type)
  • Loudness function (Boost bass and upper frequencies)
  • Volume offset

Tuner features
  • Includes HD-Radio AM & FM tuner with 24 preset stations memory
  • Supports HD2 and HD3 adjacent channels
  • Digital CD quality sound
  • RDS (Radio data service) Tuner with Radio text plus
  • HD radio FM search function with PTY code grouping
  • Sirius satellite radio input requires SXV300V1 satellite radio tuner

Bluetooth features
  • Integral Bluetooth technology facilitates convenient hands-free phone calls and supports A2DP & SPP
  • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
  • SSP: (Secure Simple Pairing)
  • SMS alert
  • External microphone with 10 foot cord for optimal placement
  • Bluetooth 2.0+ certified
  • Compatible with most Bluetooth phone that support Bluetooth 2.0 and above

Inputs and Outputs
  • 3 - 4V preamp outputs (Front, Rear and Subwoofer)
  • 1 - Rear USB Input
  • 1 - Rear 3.5mm A/V input
  • 1 - Steering wheel input
  • 1 - Back up camera input (RCA)
  • 1 - Video output
  • 2 - Audio Video inputs (Requires CA-C3AV cable for video 2)

  • Double DIN chassis
  • Dimensions: 7" W x 6-5/16" D x 3-15/16" H

Technical Specifications

Manufacturer Kenwood
Part Number DDX672BH
Chassis Size Double DIN
Faceplate features None
RCA Pre-amp Audio outputs 3 Pairs (Front, Rear, Sub)
Preamp voltage 4 volts
LCD Screen Size 7 inch - 8 inch
Illumination color Full Color
LCD Screen Brightness N/A
Swivel Screen No
Touchscreen Yes
Widescreen Display 16:9 Widescreen Display
Native Screen Resolution 800 x 480
Front camera input N/A
Back up camera input Yes
Audio Video inputs 2 Audio Video Inputs
Front mounted auxiliary input None
Audio Video Outputs 1 Video output
Built-in DVD Player Yes
Disc Playback DVD
Anti-Shock Yes
Dual Zone Control No
iPod Audio Connection Yes, via USB
iPod Video Connection Yes, via USB
SD Card input No
USB input Yes
HDMI input N/A
HDMI output N/A
Pandora Streaming Yes
Smartphone Compatible Yes
Smartphone Technology No
Audio Formats AAC, Mpeg-3, WAV
Video Formats N/A
MP3 Playback Yes
Built in Bluetooth Built in Bluetooth
NFC (Near Field Communication) No
HD Radio Yes
Radio Data Service - RDS Yes
Satellite Radio Sirius/XM
Navigation No
GPS Maps N/A
Text to Speech N/A
Traffic Tuner N/A
Points of Interest N/A
Integration Module N/A
Steering Wheel Control Input Yes, requires external module
Wireless Remote Control Yes
TV Tuner N/A
VGA input N/A
Operation Voltage N/A
Warranty 1 Year
Vehicle Year N/A
Vehicle Brand N/A
Vehicle Model N/A
UPC Code 019048210234

Customer Reviews

Product is good, but response to questions lacks
Review by
Install (5 star for easy)
1 1/2 hr install the unit, but there are plenty of tricks and additional items you will need. (Posted on 1/15/2016)
Excellent radio
Review by
Install (5 star for easy)
Excellent radio and I purchased it when it was on sale at QMV. I got a smoking deal and the radio is awesome. I have always been a fan of Kenwood and this had what I was looking for at a great price. The unit looks great in my dash and I couldn't be happier. (Posted on 1/9/2016)
