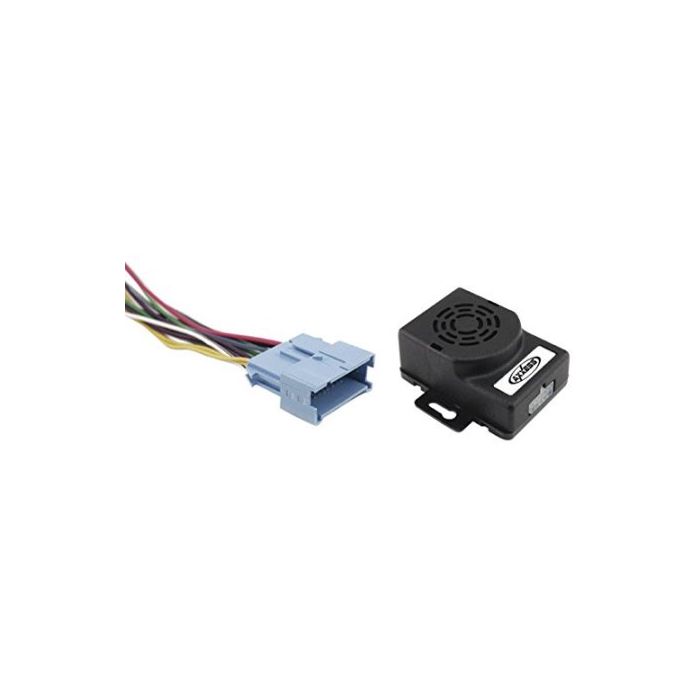

DISCONTINUED - Metra GMRC-05 GM Class II Data Bus Radio Interface with Chime Retention for 2005 - 2006 Chevy Equinox and Pontiac Torrent
$73.99
Out of stock
SKU
GMRC-05
Expert Knowledge
Talk to a specialist
- Complete car stereo integration harness for Non-Amplified audio systems or when removing factor amplifier
- Provides RAP (Retained Accessory Power)
- High level speaker inputs for connections to factory speakers
- Retains all warning chimes with built in speaker
- 12 volt 10 amp car accessory
Unit includes: GMRC-05 data interface, 10-pin to 24-pin GM harness with stripped leads, and Instruction manual
Metra GMRC-05 GM Class II Data Bus Radio Replacement Interface with Chime Retention and Built In Speaker
Connections:
Compatible With:
Chevrolet
Pontiac
Metra GMRC-05 GM Class II Data Bus Radio Replacement Interface with Chime Retention and Built In Speaker
- Features
- Complete car stereo integration harness for Non-Amplified audio systems or when removing factor amplifier
- Provides RAP (Retained Accessory Power)
- High level speaker inputs for connections to factory speakers
- Retains all warning chimes with built in speaker
- 12 volt 10 amp car accessory
- Does not retain OnStar
Connections:
- Yellow - 12V Constant
- Red - 12V Accessory
- Black - Ground
- Orange with White stripe - Dash Light Dimmer/Illumination
- Blue with White stripe - Power amplifier turn on (+)
- Green - Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White - Left Front Speaker (+)
- White with Black Stripe – Left Front Speaker (-)
- Purple - Right Rear Speaker (+)
- Purple with Black Stripe – Right Rear Speaker (-)
- Gray - Right Front Speaker (+)
- Gray with Black Stripe – Right Front Speaker (-)
Compatible With:
Chevrolet
- 2005 - 2006 Equinox
Pontiac
- 2006 - 2006 Torrent
| Manufacturer | Metra |
|---|---|
| Part Number | GMRC-05 |
| Wiring harness function | Replace Factory Radio |
| Warranty | 1 Year |
| UPC Code | 086429140640 |
| Return period | 30 days |
| Exchange period | 30 days |
