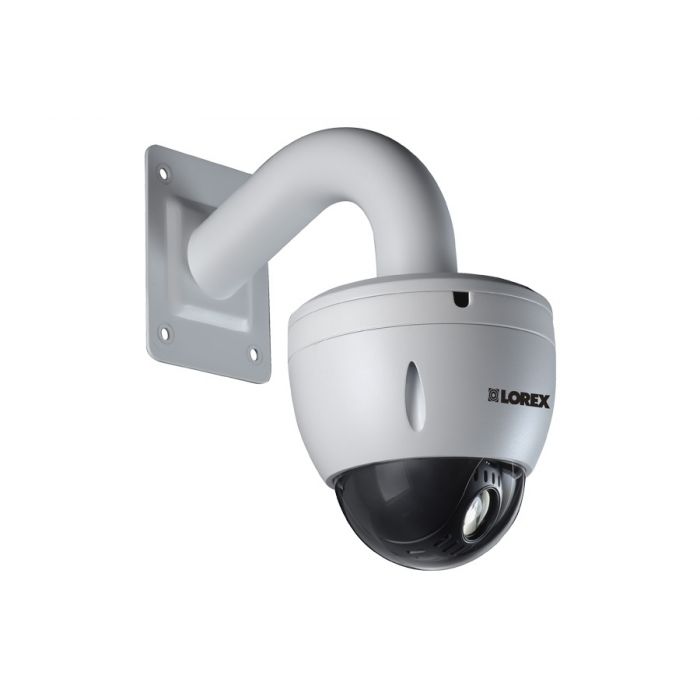

Lorex LZV1722B 12x PTZ Analog HD Speed Dome Camera

Lorex LZV1722B 12x PTZ Analog HD Speed Dome Camera

Lorex LZV1722B 12x PTZ Analog HD Speed Dome Camera-right side

More Views

Item sku:LZV1722B
Lorex

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Lorex LZV1722B Product Highlights

  • Features 1/3" 1.3MP Sony Exmor Image Sensor
  • Eliminates the need to run a separate PTZ cable with a multi-signal coaxial cable, cutting down on installation material and cost
  • Offers reliable movement and control with pan speeds up to 300°/sec and tilt speeds up to 200°/sec with camera's P/T mechanism
  • Comes with 5.0- 61mm f/1.6 Varifocal Lens
  • Equipped with Video/PTZ Control over Coax Cable
  • Built-in IR Cut filter switches from color to black and white video as light levels lower
  • Provides 720p Video Resolution
  • Offers 12x Optical & 16x Digital Zoom
  • Only for Lorex LHV1000 HD-CVI Series
  • IP66 Rated: Dust and Rainproof
  • Comes with 100' Video/Power/PTZ Cable

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Overview

The Unit Includes: Lorex 12x PTZ Analog HD Speed Dome Camera, Wall Mount, Pendant Cap, 100' Pre-terminated Video/Power Cable, Mounting Screws & Anchors, Power Adapter, O-Rings, Allen Bolts, Allen Key, Mounting Template, Limited 1-Year Warranty

Lorex LZV1722B 12x PTZ Analog HD Speed Dome Camera

Features:
  • 1/3" 1.3MP Sony Exmor Image Sensor
  • 720p Video Resolution
  • Multi-signal coaxial cable
  • P/T mechanism
  • 5.0- 61mm, f/1.6 Varifocal Lens
  • Video/PTZ Control over Coax Cable
  • 12x Optical & 16x Digital Zoom
  • Only for Lorex LHV1000 HD-CVI Series
  • IP66 Rated: Dust and Rainproof
  • 100' Video/Power/PTZ Cable

Dimensions:
  • Camera Size- H: 6.1" L: 6.7", Arm-Mount- H: 12.8" L: 11.2"
  • Weight: 2.9 lb

Technical Specifications

Manufacturer Lorex
Part Number LZV1722B
Max DVR Channels No
DVR HDD Capacity No
Cable length No
Wireless Transmission No
Infrared Illumination No
Built in Microphone No
Included cameras No
Imager Manufacturer Sony
Camera Sensor type No
Sensor Size 1/3 inch
Camera diameter Camera H: 6.1" (155 mm) L: 6.7" (170 mm) Arm-Mount H: 12.8" (325 mm) L: 11.2" (285 mm)
Lines of Resolution 720p
Minimum Illumination Color: 0.1 lux Black & White: 0.01 lux
Color Camera No
Viewing Angle No
IR LED Count No
Infra-Red Wavelength No
Zoom No
Gain Control No
Dynamic Range (dB) No
Focus No
AGC (Automatic Gain Control) No
IR range (ft) No
OSD (On Screen Display) No
NTSC/PAL NTSC and PAL
Lens Included No
Lens Type No
Electronic Shutter No
Relative Aperture (F-stop) No
Focal Length (mm) No
Color White
Housing material Metal
Vandal-proof No
Outdoor No
Waterproof ingress protection IP66 - Dust; String Water Jets/Waves
Battery Powered No
Ac Adapter included No
Operation Voltage No
Power consumption Amps DC (mA) No
Connector Type BNC Connector
Signal type No
Warranty 1 Year
UPC Code 695529001647
