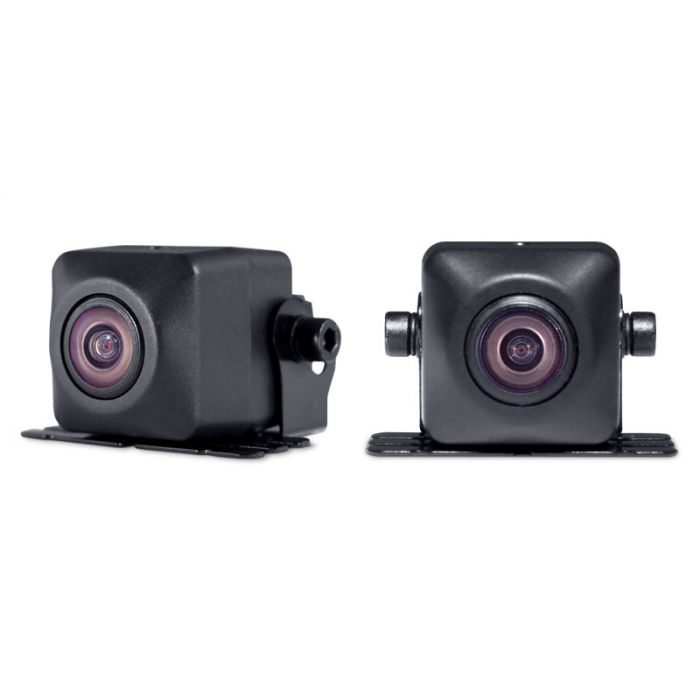

Pioneer ND-BC6 Rear View Reverse and Back Up Parking Color CCD Camera with 138 degrees Wide Viewing Angle and Low Light Lux Mode

Pioneer ND-BC6 Rear View Reverse and Back Up Parking Color CCD Camera with 138 degrees Wide Viewing Angle and Low Light Lux Mode

Pioneer ND-BC6 Rear View Reverse and Back Up Parking Color CCD Camera with 138 degrees Wide Viewing Angle and Low Light Lux Mode

More Views

Pioneer
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Pioneer ND-BC6 Product Highlights

  • CCD Lens
  • 138 Degrees (Horizontal) and 114 Degrees (Vertical)
  • Micro Size)
  • Adjustable Mounting Bracket
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Overview

Unit includes: Back up camera, Mounting bracket, Wiring harness, and Instruction manual

Pioneer ND-BC6 Rear View Reverse and Back Up Parking Color CCD Camera with 138 degrees Wide Viewing Angle and Low Light Lux Mode
  • Universal Rear View Camera for use with Pioneer A/V and Navigation products featuring a Rear View Camera Input.
  • Wide Viewing Angle: 138 Degrees (Horizontal) and 114 Degrees (Vertical)
  • Automatic luminance control (0.9-100,000 lux)
  • 1/3" Color CMOS with 330,000 Pixel resolution CMOS color sensor
  • 350 TV Lines of resolution
  • 10 Foot RCA cable from the hide away control box
  • 23 Foot cable from the camera to the control box
  • Waterproof housing made from high quality aluminum
  • Includes automatic low-light lux mode for higher detail and contrast in low-light conditions
  • Compact Camera Unit: 23mm W x 23mm H x 24mm D
  • Composite Video Output (6m cable included)
  • Dimensions: 15/16"W x 1-3/8"D x 15/16"H
  • Power source: 14.4 V DC (10.8 V to 15.1 V allowable)
  • Grounding system: Negative type
  • Max. current consumption: 120 mA
  • Output video: Mirror image (for rear view confirmation)
  • Lens: Wide-angle, focal length f = 1.4 mm, F value 2.3
  • IR cutoff filter (special filter for vehicle mounting): Provided
  • Iris system: Electronic iris
  • Scanning system: Interlace
  • Synchronizing system: Internal synchronization
  • Signal-to-noise ratio: 40 dB or more (at the recommended intensity of illumination)
  • Image output: 1 Vp-p (75 Ohms)
  • Operation temperature range: –22 degrees F to +158 degrees F (–30 degrees C to +70 degrees C)
  • Storage temperature range: –40 degrees F to +185 degrees F (–40 degrees C to +85 degrees C)
    • Dimensions:
    • Camera unit: 7/8" W × 7/8" H × 1 3/8" D
    • Power supply unit: 2 1/4" W × 7/8" H × 7/8" D (56mm W × 23mm H × 22mm D)

Technical Specifications

Manufacturer Pioneer
Part Number ND-BC6
Auto Dimming N/A
Camera Sensor type CMOS
Back up camera type Surface Mount Camera
License Plate Camera Type No
Camera diameter 1/3 inch
Viewing Angle 140 degrees
Wireless Transmission N/A
Waterproof ingress protection IP66 - Dust; String Water Jets/Waves
Reverse Image Yes - Reverse Image
Parking grid lines Yes
Infrared Illumination No
Built in Microphone No
Trigger wire Yes
Auto on/off Yes
Connector Type RCA Cable
NTSC/PAL NTSC only
Operation Voltage 12 - 15 Volt DC
Battery Powered Hard wired
Cigarette Lighter Cord Included No
Color Black
Case included No
Built in Speakers No
Warranty 1 Year
UPC Code No
