Rockford Fosgate PBR500X1 Punch Boosted Rail 500 Watt Mono Amplifier

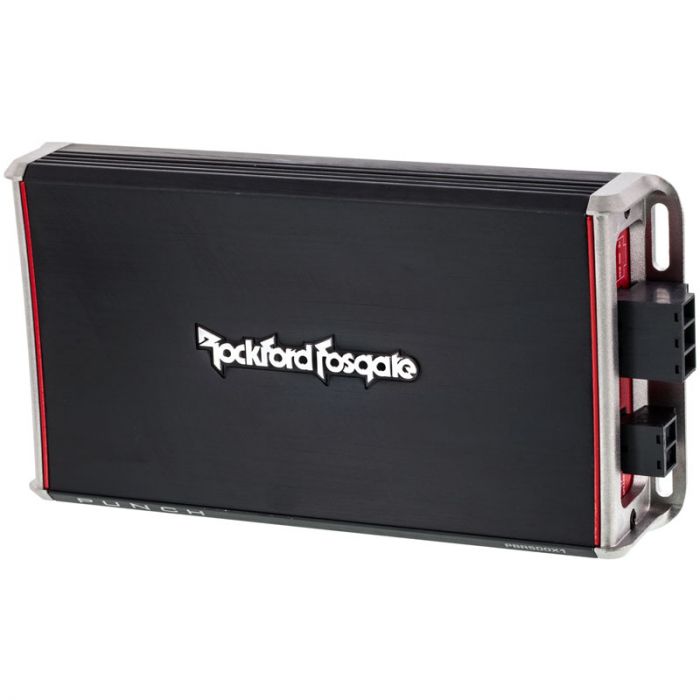

Rockford Fosgate PBR500X1 Punch Boosted Rail 500 Watt Mono Amplifier

Rockford Fosgate PBR500X1 Mono Amplifier - Right Side

More Views

Item sku:PBR500X1
Rockford Fosgate

Overall Rating 5 (Based on 1 reviews)

Would you recommend this to a friend?

Write a review

Rockford Fosgate PBR500X1 Product Highlights

  • 175 Watts x 1-channel at 4 ohms
  • Punch series micro sized boosted rail mono amplifier
  • Super efficient design that allows the amplifier to mounted virtually anywhere
  • High level speaker inputs for easy installation into factory audio systems
  • 1 Year Standard Warranty

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!

Overview

System Includes: Amplifier, Mounting hardware, and Instruction manual

Rockford Fosgate PBR500X1 Punch Boosted Rail 500 Watt Mono Amplifier

Features:
  • Punch series micro sized boosted rail mono amplifier
  • Super efficient design that allows the amplifier to mounted virtually anywhere
  • Ultra compact chassis
  • High level speaker inputs for easy installation into factory audio systems
  • Low level RCA input connection
  • Remote bass level input (remote level control sold separately)
  • LED status indicators for protect modes
  • Extruded aluminium heat sink
  • Short circuit protection
  • Thermal protection
  • Multiple mounting options
  • Includes all harnesses and hardware for full installation
  • Optional PEQ provides 0dB to +18dB @ 45Hz
  • Low Pass crossover: 35Hz - 250Hz @ 12dB/Octave Butterworth
  • NOMAD protection circuitry
  • Variable DC offset sensitivity
  • 8 Gauge power terminals
  • 12 Gauge speaker terminals
  • Input sensitivity:
    • Low level: 150mV-4V
    • High level: 400mV-11V


Power Output Max:
  • 206 Watts x 1 @ 4-Ohm
  • 365 Watts x 1 @ 2-Ohm
  • 580 Watts x 1 @ 1-Ohm


Power Output RMS:
  • 175 Watts x 1 @ 4-Ohm
  • 300 Watts x 1 @ 2-Ohm
  • 500 Watts x 1 @ 1-Ohm



Quick Specs:

  • Signal Input: High Level: 4-pin harness
  • Signal Input: Low Level: RCA inputs
  • Power Input connector: 3-pin harness up to 8 gauge wire
  • Frequency Response: 20Hz - 250 Hz +/-3dB
  • Circuit topology Class: Class BR
  • Operating Voltage: 9-16 VDC
  • Average Current Draw: 30 Amp
  • Recommended Fuse 60 Amp



Dimensions:

  • 1-1/2" (H) x 4-1/4" (W) x 8-1/4" (L)

Technical Specifications

Manufacturer Rockford Fosgate
Part Number PBR500X1
Amplifier Topology Class Class BR
Number of Channels 1 Channel
Total Peak Power Output 500 watts
Total RMS Power Output 500 watts
Amplifier Bridging Not Bridgable
Minimum Impedance in Bridged Mode 1 ohm
Minimum Impedance in Un-Bridged Mode 1 ohm
Strappable Amplifier No
Strappable Power Output No
RCA Pre-amp Audio inputs N/A
RCA Pre-amp Audio outputs 1 Pair
Preamp voltage 150 mV - 11 V
Speaker level inputs Yes
Gain Control Yes
Bass Knob / Remote Gain Optional
Built in Crossover Low-pass
Cooling Fan No
Color Black
Warranty 1 Year
Recommended Power Wire Guage 8 Guage
UPC Code 780687340513

Customer Reviews

Amazing power
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
Awesome power from such a small body. This amp is great, I put in a single 12 and mounted the amp in a storage compartment and could not be happier. (Posted on 1/12/2016)
