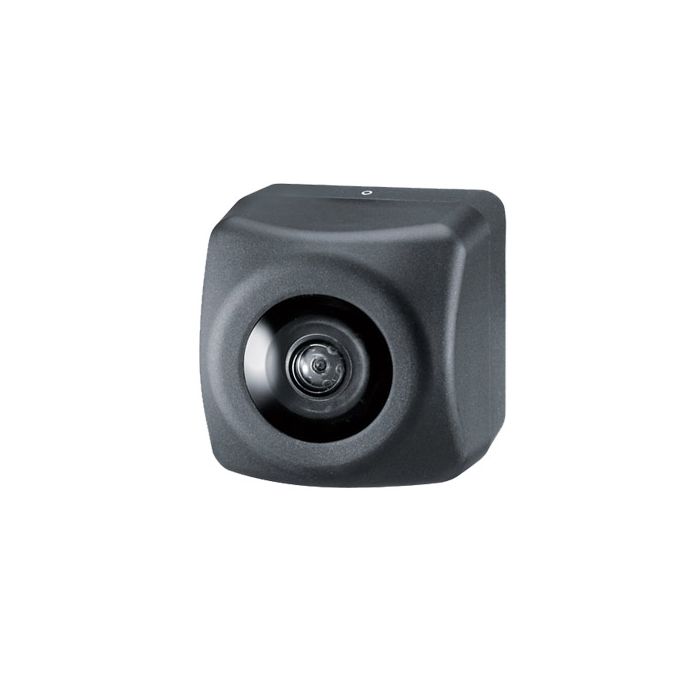

DISCONTINUED - Pioneer ND-BC4 Rear View Reverse and Back Up Parking Color CCD Camera with 135 degrees Wide Viewing Angle and Low Light Lux Mode

DISCONTINUED - Pioneer ND-BC4 Rear View Reverse and Back Up Parking Color CCD Camera with 135 degrees Wide Viewing Angle and Low Light Lux Mode

Pioneer ND-BC4 Rear View Reverse and Back Up Parking Color CCD Camera with 135 degrees Wide Viewing Angle and Low Light Lux Mode

More Views

Pioneer
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Pioneer ND-BC4 Product Highlights

  • CCD Lens
  • Micro Size Camera
  • Mirror Image
  • Sleek and Discrete
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Overview

Unit includes: Connectors

Pioneer ND-BC4 Rear View Reverse and Back Up Parking Color CCD Camera with 135 degrees Wide Viewing Angle and Low Light Lux Mode

  • Universal Rear View Camera for use with Pioneer A/V and Navigation products featuring a Rear View Camera Input.
  • Wide Viewing Angle: 135 Degrees (Horizontal) and 105 Degrees (Vertical)
  • 1/4" Color CCD with 270,000 pixel resolution (491 x 512 pixels)
  • 0.9 ~ 10,000 Lux Automatic Luminance Control
  • Includes automatic low-light lux mode for higher detail and contrast in low-light conditions
  • Compact Camera Unit: 23mm W x 23mm H x 24mm D
  • Composite Video Output (6m cable included)

  • Power source: 14.4 V DC (10.8 V to 15.1 V allowable)
  • Grounding system: Negative type
  • Max. current consumption: 120 mA
  • Output video: Mirror image (for rear view confirmation)
  • Sensor: 1/4-inch color CCD sensor
  • No. of pixels: 492 V × 512 H (Total no. of pixels: 270 000, effective no. of pixels roughly 250 000)
  • Lens: Wide-angle, focal length f = 1.4 mm, F value 2.3
  • Angle of view: Horizontal: approx. 135 degrees; Vertical: approx. 105 degrees
  • IR cutoff filter (special filter for vehicle mounting): Provided
  • Iris system: Electronic iris
  • Scanning system: Interlace
  • Synchronizing system: Internal synchronization
  • Signal-to-noise ratio: 40 dB or more (at the recommended intensity of illumination)
  • Horizontal resolution: Approx. 300 TV lines
  • Illumination range: Approx. 0.9 lux to 100 000 lux
  • Image output: 1 Vp-p (75 Ohms)
  • Operation temperature range: –22 degrees F to +158 degrees F (–30 degrees C to +70 degrees C)
  • Storage temperature range: –40 degrees F to +185 degrees F (–40 degrees C to +85 degrees C)

  • Dimensions
  • Camera unit: 7/8" W × 7/8" H × 1" D (23mm W × 23mm H × 24mm D)
  • Power supply unit: 2 1/4" W × 7/8" H × 7/8" D (56mm W × 23mm H × 22mm D)

  • Weight
  • Camera unit: 135 g (0.3 lbs) - including the cable
  • Power supply unit: 110 g (0.2 lbs) - including the power cord

  • Product Manual
  • Fit and Installation Photos

Technical Specifications

Manufacturer Pioneer
Part Number ND-BC4
Auto Dimming No
Camera Sensor type CCD
Back up camera type Surface Mount Camera
License Plate Camera Type No
Camera diameter No
Viewing Angle 130 degrees
Wireless Transmission No
Waterproof ingress protection No
Reverse Image Yes - Reverse Image
Parking grid lines No
Infrared Illumination No
Built in Microphone No
Trigger wire No
Auto on/off No
Connector Type No
NTSC/PAL No
Operation Voltage No
Battery Powered No
Cigarette Lighter Cord Included No
Color Black
Case included No
Built in Speakers No
Warranty No
UPC Code No
