Unit includes: Marine Amplifier, Mounting hardware, and Instruction manual

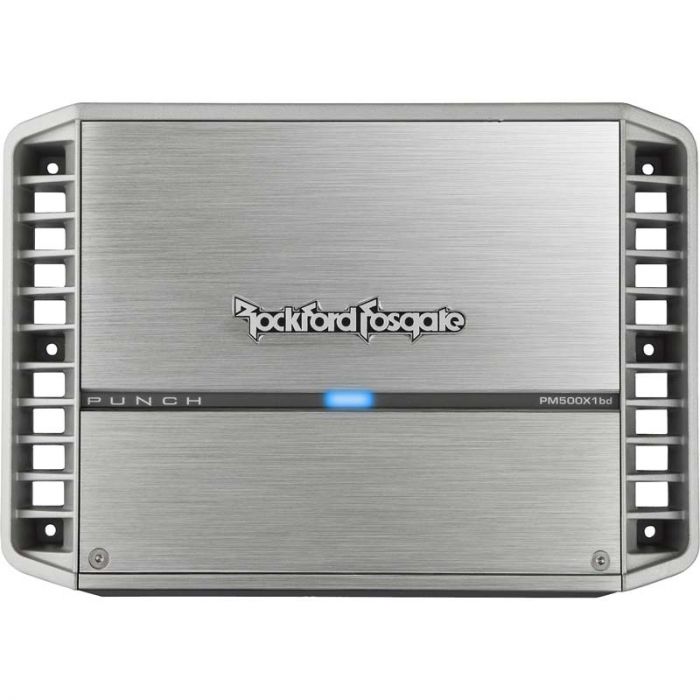

Rockford Fosgate PM500X1bd 500 Watt 1-Channel Class BD Marine Amplifier:
- 500 Watt Punch Series Single Channel Class BD Marine Amplifier
- Marine grade two part epoxy coating on circuit boards
- Marine grade stainless steel hardware
- Stealth top mounted control panel
- High level input capable with Auto Turn-On circuit
- Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
- 12dB/octave Butterworth crossover
- Infrasonic filter
- On-board Punch EQ with +18dB boost @ 45Hz
- TRANS•ana topology - simplifies the signal path of the amplifier that results in greater reliability and sound quality
- MOSFET power supply for incredible power
- LED indicators: Power, Protect, and Thermal
- Balanced Differential inputs - filters and eliminates noise picked up from the RCA signal cables as they are run through the vehicle
- C.L.E.A.N circuit that allows you to properly optimize input signal to output capability for proper signal to noise ratio and prevent damaging distortion
- MEHSA3 utilizes a proprietary process that yields up to five times better heat transfer than traditional FET mounting techniques that lowers distortion, increases durability and prolongs the output device life span
- DSM - An industry-leading manufacturing process, DSM utilizes high-speed robotics, high-quality 1% tight-tolerance parts and large board traces which improves efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature
- NOMAD is a real time analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances
- DTM - Dynamic Thermal Management evenly distributes heat across entire amplifier cast aluminum heat-sink without noisy fans utilizing convection cooling
- Provides three way protection circuitry, which includes thermal, overload and speaker short protection
- Integrated heavy-duty aluminum alloy vented heat sink for utmost heat dissipation
- Requires minimum 4 gauge power and ground wiring for installation
- CEA-2006 compliant amplifier
- Frequency Response: 20Hz to 250Hz +/- 1.0dB
Inputs and Outputs:
- 2 - Nickel-plated RCA high or low level inputs (150 mV - 12 V)
- 2 - Nickel-plated RCA level outputs
- Input sensitivity is 150 mV to 12V
- 8 AWG to 18 AWG speaker connections (Captive C-Clamp)
- 4 AWG power connections (Captive C-Clamp)
Max Power Output:
- 1-Ohms: 787 watts x 1 channel
- 2-Ohms: 410 watts x 1 channel
- 4-Ohms: 224 watts x 1 channel
RMS Power Output:
- 1-Ohms: 500 watts x 1 channel
- 2-Ohms: 300 watts x 1 channel
- 4-Ohms: 150 watts x 1 channel
- Optional PLC2 wired remote bass level control
- Punch EQ2 Bass Boost: 0dB to +18 dB at 45 Hz
Built in Crossover:
- Variable low-pass filter: 50 Hz - 250 Hz @ 12 dB/octave Butterworth
- Infrasonic filter: 28 Hz @ 12 dB/octave
- All Pass
- Overall Dimensions: 2.38” (H) x 11.03” (D) x 7.76” (W)
- Recommended Fuse: 80 amp
- Maximum current draw: 70 amp (13.8V Sinewave)
- Average current draw: 35 amp (13.8V Music)
