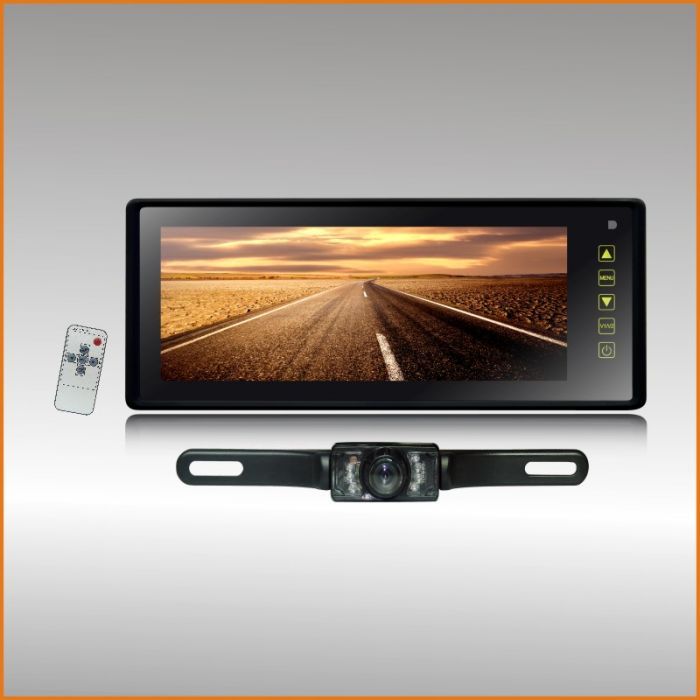

Tview RV808C 8.8 inch LCD rear view mirror monitor with License plate camera kit

Tview RV808C 8.8 inch LCD rear view mirror monitor with License plate camera kit

Tview RV808C 8.8 inch LCD rear view mirror monitor with License plate camera kit - Full kit contents

More Views

Item sku:RV808C
Tview

Overall Rating 3 (Based on 1 reviews)

Would you recommend this to a friend?

Write a review

Tview RV808C Product Highlights

  • Compete back up camera kit
  • 8.8 inch LCD rear view mirror monitor
  • License plate camera
  • Clips on to your existing rear view mirror

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!

Overview

Unit includes: Rear view mirror monitor, License plate camera, Remote control, 18 foot RCA cable, 4 foot Monitor Wiring harness, 2 foot camera power cable, and Instruction manual

Tview RV808C 8.8 inch LCD rear view mirror monitor with License plate camera kit features:
  • Back up camera system includes all necessary items for connection in mid-size cars and small trucks
  • Uses standard RCA cables so if you have a large vehicle extension cables are inexpensive
  • 8.8" Rear View Mirror Monitor
  • Display Mode: Left align 4.5", 5.6" , 7", 8.5", 25:8 (full screen) allows you to control the size of the image so you don't lose entire rear view mirror
  • Display Mode: Right align 25:8(full screen), 8.5", 7", 5.6", 4.5"
  • Touch Buttons for menu control and source select
  • Power Supply: DC12V
  • Video System: NTSC/PAL
  • View Angle: Up 30 degrees, Down 30 degrees, Left 60 degrees, Right 60 degrees
  • Resolution: 800XRGBX240
  • 2 Video Inputs
  • On screen menu controls for Image Brightness / Saturation / Mode / Reset to factory defaults / Contrast / Hue / OSD Language
  • Unit Size: 10.7"X4.3"X1.0"
Specification for the camera
  • CMOS CAR CAMERA
  • Pickup Device: 1/3" OV7910 CMOS
  • Pixel: 628 x 582
  • Resolution: 420 TVL
  • Illumination: 2.0 Lux
  • Built-in Lens: 6mm
  • Output Standard: PAL/NTSC
  • Video Output: 1.0Vpp composite Video at 75 Ohms
  • Operation Temperature: -200C ~ 500C
  • Power Supply: DC 12V > 200mA
  • Dimension (mm): 260 x 32
  • Night Vision Function

Technical Specifications

Manufacturer Tview
Part Number RV808C
LCD Screen Size 7 inch - 8 inch
Native Screen Resolution 800 X 240
Widescreen Display 16:9 Widescreen Display
LCD Screen Brightness 300 Nit
LCD back light type CCFL
Auto Dimming No
Trigger wire Yes
NTSC/PAL NTSC and PAL
Slide track on back No
Image Flip Function No
Built in Speakers No
Stand Mount included No
Auto on/off Yes
Cigarette Lighter Cord Included No
Audio Video inputs 2 Video Inputs
Wireless Remote Control Yes
Monitor Type Rearview mirror monitor
Mirror Mount Type Clip On
Back up camera type License Plate Camera
Options No
Product Options No
Homelink No
Built in Bluetooth No Bluetooth
Reverse Image Yes - Reverse Image
Camera Sensor type CMOS
Camera diameter 2.8 mm
Viewing Angle 170 degrees
Parking grid lines No
Built in Microphone No
Infrared Illumination Yes
Waterproof ingress protection Water resistant
Battery Powered Hard wired
Case included No
Connector Type RCA Cable
Wireless Transmission No, wired connection
Color Black
Operation Voltage 12 - 15 volt
Warranty 1 Year
Vehicle Year No
Vehicle Brand No
Vehicle Model No
UPC Code No

Customer Reviews

Avoid
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
The monitor intended to clip on to the existing rear view mirror was difficult to clip on and it would not stay when on bumpy roads. Also, it is intended to replace the rear view mirror but in order to use it in that way you need to power it off. The optical quality is lacking for rear view. There is no way through programming to disable the 2nd video input for DVD player. (Posted on 1/26/2015)

Write Your Own Review

You're reviewing: Tview RV808C 8.8 inch LCD rear view mirror monitor with License plate camera kit

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Value
Quality
Durability
Install (5 star for easy)
Price

Ask questions receive answers.

Posted by wes, Wednesday, October 16, 2013

Question:

black and white or color?

Answers:

  • Posted by Salvador Diaz on Wednesday, October 16, 2013
    A:

    The unit is a full color system.

  • Posted by Salvador Diaz on Wednesday, October 16, 2013
    A:

    The unit is a full color system.
