Safesight SC5002W Universal 5 inch LCD Monitor and Heavy Duty Commercial RV Back Up CCD Camera System with White 120 degrees Wide Angle Weatherproof Camera

SC5002W
Safesight SC5002W Universal 5 inch LCD Monitor and Heavy Duty Commercial RV Back Up CCD Camera System with White 120 degrees Wide Angle Weatherproof Camera
Item sku:
SC5002WW
Manufacturer
Safesight
Condition
New
Availability:
In stock
Your Price: $159.99

SC5002W features:

  • Free Lifetime Technical Support
  • 30-Day Return Policy
  • Fast Same Day Shipping
  • Excellent Customer Service
Free shipping on all orders over $50!
  - Shipping options
OR
    Quantity Discounts
  • Buy 4 for $143.99 each and save 11%
  • Buy 10 for $137.99 each and save 14%
  • Buy 21 for $131.99 each and save 18%
  • Buy 50 for $125.99 each and save 22%

Ask a question about this product

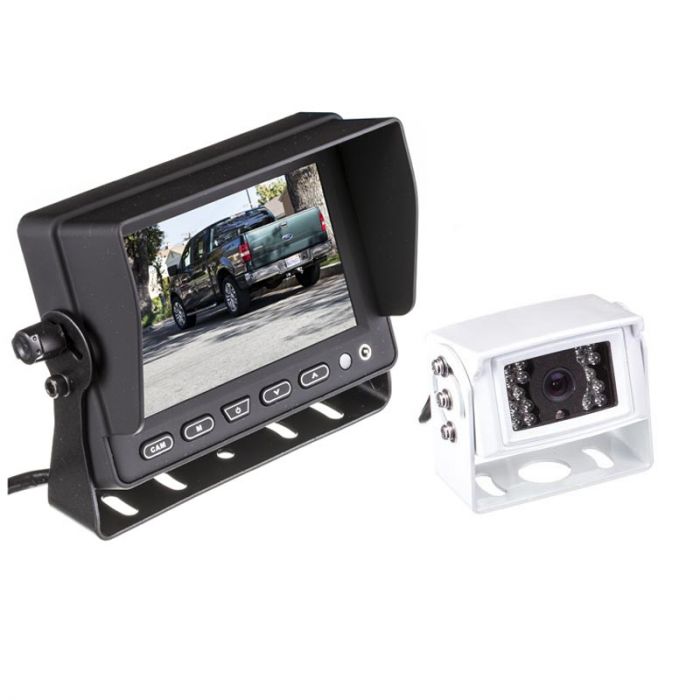

Safesight SC5002 Reverse back up camera system - Camera and monitor view

More Views

  • Safesight SC5002 Reverse back up camera system - Monitor right side view
  • Safesight SC5002 Reverse back up camera system - Monitor front view
  • Safesight SC5002 Reverse back up camera system - Monitor left side view
  • Safesight SC5002 Reverse back up camera system - Monitor back panel
  • Safesight SC5002 Reverse back up camera system - Monitor cables
  • Safesight SC5002 Reverse back up camera system - Camera and monitor view
  • Safesight SC5002 Reverse back up camera system - 50 foot cable
  • Safesight SC5002 Reverse back up camera system - Back of camera

Safesight SC5002W Product Highlights

  • 5 inch TFT LCD High Definition display
  • 3 - 4-pin Video Inputs with triggers for each input, for use with multiple cameras and side cameras
  • White Night vision CCD camera
  • 1 - 3.5mm front mount audio video input
  • Optional trailer cable

Buy everything you need as a package and SAVE!

Details

Unit includes: 5 inch LCD monitor, Wiring harness, Extension cable, Back up camera, Remote Control Instruction manual, and Connectors

Safesight Supply SC5002W Universal 5 inch LCD Monitor and Heavy Duty Commercial RV Back Up CCD Camera System with 120 degrees Wide Angle Weatherproof Camera
    Ideal for Heavy Duty and Commercial Vehicles (Truck, RV, Van, Tractor, Trailer, Bus, Crane, Dirt Wagon, etc) where a small monitor is needed. This system can be used with up to three cameras and can be connected to the SC1201 trailer cable for use with trailers.
    Safesight SC5102 5 inch LCD Monitor features:
  • 5 inch TFT LCD High Definition display
  • 3 - 4-pin Video Inputs with triggers for each input, for use with multiple cameras and side cameras
  • 1 - 3.5mm front mount audio video input
  • PAL/NTSC auto switching
  • Resolution: 800 x 480
  • Power Supply: DC 12-24V
  • Heavy Duty Reversing system that is designed for commercial applications
  • OSD Menu (On Screen Display)
  • Contrast, Color and Brightness
  • View Angle range; Left/Right - 65 degrees; Top - 40 degrees; Down - 15 degrees
  • Dimensions: 5-5/8" (W) x 4-1/8" (H) x 1" (D)

  • Safesight SC0104 Back up Camera features:
  • High Resolution Back Up Camera
  • 1/4" CCD Sharp Image Sensor
  • System: NTSC/PAL
  • 420 TV lines
  • Effective Pixels: NTSC: 510 pixels x 492 pixels
  • 120 degrees Wide Angle Camera - for distortion free image
  • Minimum Illumination: 0Lux (LED On)
  • IR Infrared 18 LEDs for Night Vision 45 ft distance
  • Built in microphone
  • Selectable between reverse image and normal image
  • Operating Temperature: -20 degrees ~ +70 degrees C (RH 95% Max)
  • Lens: F = 2.5mm/ 1.7mm
  • Power Supply: DC 12V
  • Dimensions: 70x50x40 mm
  • Waterproof Rating: Ip67
  • Shell Material Aluminum Alloy
  • Square style casing
  • 4 Pin Connector

  • Extension Cable
  • Around 60 ft or 18 meters length
  • 4 Pin lock connector

  • Optional Compatible Safesight Cameras: SC0102, SC0104

Additional Information

Manufacturer Safesight
Part Number SC5002W
LCD Screen Size 5 inch - 6 inch
Screen Resolution 800 x 480
Widescreen Display 16:9 Widescreen Display
LCD Screen Brightness 400 Nit
LCD back light type LED
Auto Dimming No
Trigger wire Yes
NTSC/PAL NTSC and PAL
Slide track on back Yes
Image Flip Function Yes, reverse image flip
Built in Speakers Yes
Stand Mount included Yes, Pedistal stand
Auto on/off Yes
Cigarette Lighter Cord Included No
Audio Video inputs 3 Video Inputs
Wireless Remote Control Yes
Monitor Type No
Mirror Mount Type No
Back up camera type Surface Mount Camera
Options No
Product Options No
Homelink No
Built in Bluetooth No Bluetooth
Reverse Image Selectable
Camera Sensor type CCD
Camera diameter 1/4 inch
Viewing Angle 120 degrees
Parking grid lines No
Built in Microphone Yes
Infrared Illumination Yes
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Battery Powered Hard wired
Case included No
Connector Type 4 Pin Connector
Wireless Transmission No, wired connection
Color White
Operation Voltage 12 - 24 volt
Warranty 1 Year
Vehicle Year N/A
Vehicle Brand N/A
Vehicle Model N/A
UPC Code No

Customer Reviews

Good Addition for Towing a Trailer
Review by
Value
Price
Installation difficulty
Durability
Quality
Works very well. I leave mine on all of the time while towing a trailer. The hardest part of the install was the routing of the cables. (Posted on 10/29/13)
