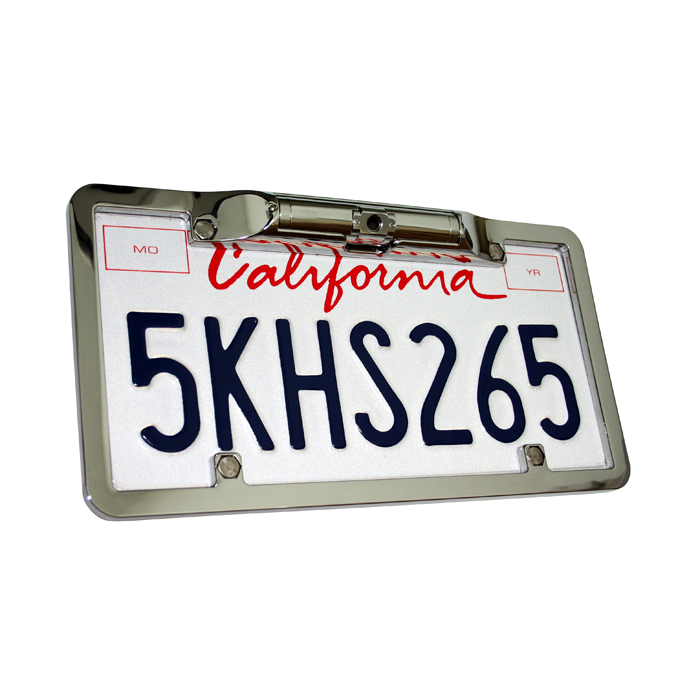

Boyo (Vision Tech) VTL110 Plastic Chrome License Plate Back Up Camera

Boyo (Vision Tech) VTL110 Plastic Chrome License Plate Back Up Camera

Boyo (Vision Tech) VTL110 Plastic Chrome License Plate Back Up Camera

More Views

Item sku:40544
Boyo

Overall Rating 4.5 (Based on 2 reviews)

Would you recommend this to a friend?

Write a review

Boyo VTL110 Product Highlights

  • Great Low LUX Camera Lens
  • Wide Angle Viewing
  • Chrome Finish
  • CCD Lens
  • LOW Sensitive Light Camera

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 800-363-0096
  • Fast Free Same Day Shipping - Over $99

Overview

Unit includes: License plate back up camera, Wiring harness, Mounting bolts, Caps, and Instruction manual

Boyo VTL110 Plastic Chrome angle license plate camera features:
  • License Plate Camera "Plastic in Chrome"
  • High sensitive 1/3" DSP Color CCD built-in
  • 380,2011, TVL Horizontal Resolution
  • Remarkable True Color reproduction
  • Remarkable low Lux performance of 0.3 Lux at F2.0
  • Excellent Auto White Balance
  • Waterproof(IP67) Reverse Image
  • Imager: 1/3" DSP Color CCD, (High sensitive)
  • Effective Pixels NTSC : 512(H)X492(V)
  • Horizontal resolution: 380,2011, TV Lines
  • Total number of pixels: NTSC: 270K
  • Minimum Illumination: 0.3 Lux at F2.0
  • Synchronizing system: Internal
  • Scanning system: 2:1 Interlaced
  • Video output: 1Vp-p 75 ohm composite
  • S/N Ratio: More than 48dB
  • Electronic iris: 1/50,1/60-1/100,000 sec.
  • Smear effect: 0.005%
  • Gamma correction: r = 0.45
  • White balance: Auto.2100'K - 9100'K
  • Gain control: Auto. 4dB - 30dB
  • Lens mount: 2.8mm Pinhole lens (130˚ D)
  • MTBF: 80,2011,000 hours
  • Power source: DC12V(Tolerance: 6V-35V)
  • Operating current: 90mA w/regulated power in
  • Operating Temp: -4˚ F~122˚ F ( -20˚ C~ + 50˚ C )
  • Storage Temp: -40˚ F~176˚ F ( -40˚ C~ + 80,2011,˚ C )
  • Humidity: Within 90% RH
  • Measurement: Camera Size: 108X22 (Camera)
  • Weight(Approx.g): 400g

Instruction manual

Technical Specifications

Manufacturer Boyo
Part Number VTL110
Auto Dimming No
Camera Sensor type CCD
Back up camera type License Plate Camera
License Plate Camera Type No
Camera diameter No
Viewing Angle 130 degrees
Wireless Transmission No
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Yes - Reverse Image
Parking grid lines No
Infrared Illumination No
Built in Microphone No
Trigger wire No
Auto on/off No
Connector Type RCA Cable
NTSC/PAL NTSC only
Operation Voltage No
Battery Powered No
Cigarette Lighter Cord Included No
Color Chrome
Case included No
Built in Speakers No
Warranty 1 Year
UPC Code No

Customer Reviews

Looks terrific
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
The Boyo VTL110 Plastic Chrome backup camera looks terrific on my license plate and works quite well, even at night. I don't know how long it will last in terms of appearance. I use the camera with a small (almost too small) 3.5" monitor mounted above the rear view mirror with a Steelie mount, which places the monitor close to the window and not in the way of the mirror. I had the system professionally wired at Best Buy so the wiring is all but invisible. (Posted on 7/22/2015)
Good Basic Monitor
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
Sharp picture, good contrast, little distortion, excellent field of vision and light enhancement. Secure theft resistant installation. (Posted on 7/31/2011)
