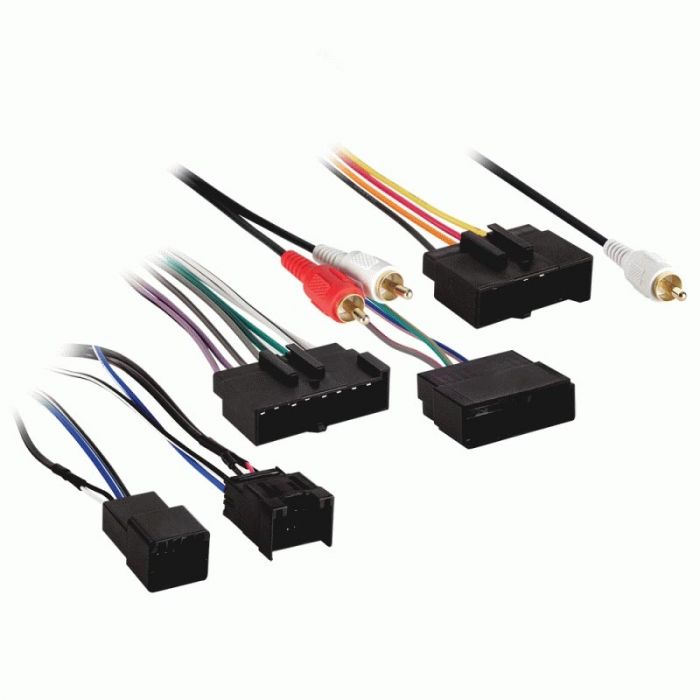

Metra 70-1776 Car Stereo Wiring Harness for Ford, Lincoln, Mercury 2003-Up vehicles with premium sound systems
$21.99
In stock
SKU
70-1776
- Metra TurboWires 70-1776 for Ford, Lincoln, Mercury
- Used to install and aftermarket car stereo without cutting stock connections
- Designed for vehicles with premium audio systems, subwoofer and factory amplifier
- Uses low level RCA outputs for subwoofer amplifier connections
Unit includes: Car Stereo harness, and Instruction manual
Metra 70-1776 Car Stereo Wiring Harness for Ford, Lincoln, Mercury 2003-Up vehicles with premium sound systems
Connections:
Fitments:
Ford:
Metra 70-1776 Car Stereo Wiring Harness for Ford, Lincoln, Mercury 2003-Up vehicles with premium sound systems
-
Features
- Used to install and aftermarket car stereo without cutting stock connections
- Designed for vehicles with premium audio systems and factory amplifier with subwoofer
- Retains factory Subwoofer Amplifier
- Retains factory Rear Seat Entertainment
- Retains factory NAV Wires - VSS and Reverse
- Retains factory Steering Wheel Controls (grey/red wire)
- Uses low level RCA outputs for subwoofer amplifier connections
- Includes 24 Pin plug for power and speaker connections
- Includes 8 Pin plug for RCA connections to factory subwoofer
- Allows for the installation of an aftermarket radio using the existing factory wiring and connectors
- ABS plastic for maximum reliability
- Factory OEM quality
- Makes replacing the factory car stereo wiring very easy
- No cutting of factory wiring needed
Connections:
- Yellow - 12V Constant
- Red - 12V Accessory
- Black - Ground
- Blue - Power Antenna
- Orange - Dash Light Dimmer/Illumination
- Green - Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White - Left Front Speaker (+)
- White with Black Stripe - Left Front Speaker (-)
- Purple - Right Rear Speaker (+)
- Purple with Black Stripe - Right Rear Speaker (-)
- Gray - Right Front Speaker (+)
- Gray with Black Stripe - Right Front Speaker (-)
- White RCA - Left Subwoofer signal
- Red RCA - Right Subwoofer signal
Fitments:
Ford:
- 2003 - and Up
Manufacturer | Metra |
---|---|
Part Number | 70-1776 |
Wiring harness function | Replace Factory Radio |
Color | Black |
Warranty | 1 Year |
Vehicle Year | 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014 |
Vehicle Brand | Ford, Lincoln, Mercury |
UPC Code | 086429281220 |
Item Returns | This item can be returned |
