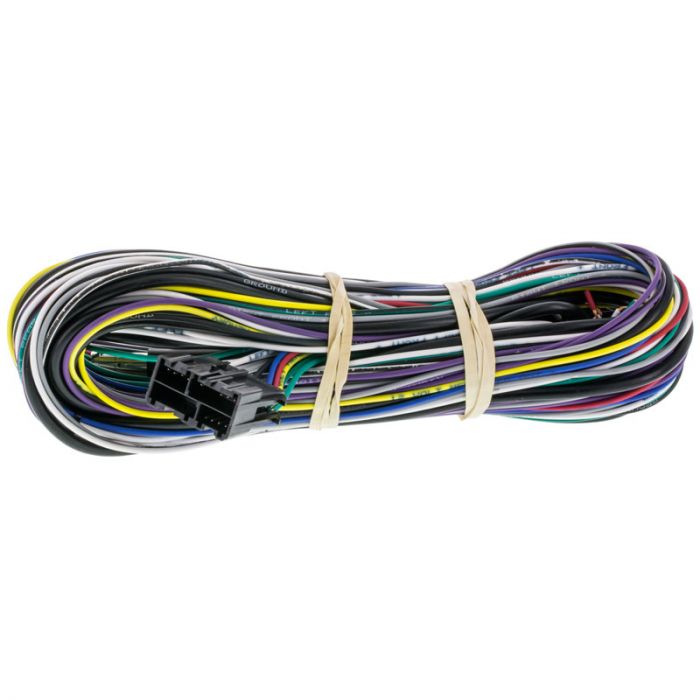

Metra TurboWires 70-1856 Tuner Relocation Harness for 1989 - 1996 Cadillac and Chevrolet Vehicles

$41.99
In stock
SKU
70-1856

Key Features

  • Used to install and aftermarket car stereo without cutting stock connections
  • Designed for vehicles without Bose premium audio systems
  • Uses high level speaker outputs for amplifier connections
Unit includes: Car Stereo harness, and Instruction manual

Metra TurboWires 70-1856 Tuner Relocation Harness for 1989 - 1996 Cadillac and Chevrolet Vehicles

    Features
  • Used to install and aftermarket car stereo without cutting stock connections
  • Designed for vehicles without Bose premium audio systems
  • Uses high level speaker outputs for amplifier connections
  • Includes 21 Pin plug for power and speaker connections
  • Designed to bypass the remote tuner in select GM vehicles
  • ABS plastic for maximum reliability
  • Factory OEM quality
  • Makes replacing the factory car stereo wiring very easy
  • Designed to be connected at the factory tuner and ran to the radio location
  • 204" inch long harness


Connections:
  • Yellow – 12V Constant
  • Red – 12V Accessory
  • Black - Ground
  • Blue - Power Antenna
  • Orange – Dash Light Dimmer/Illumination
  • Green – Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White – Left Front Speaker (+)
  • White with Black Stripe – Left Front Speaker (-)
  • Purple – Right Rear Speaker (+)
  • Purple with Black Stripe – Right Rear Speaker (-)
  • Gray – Right Front Speaker (+)
  • Gray with Black Stripe – Right Front Speaker (-)


Fitments:

Cadillac:
  • 1994 - 1995 DeVille
  • 1994 - 1995 El Dorado
  • 1992 - 1995 Seville
  • 1991 - 1995 Fleetwood


More Information
Manufacturer Metra
Part Number 70-1856
Wiring harness function Replace Factory Radio
Color White
Warranty 1 Year
Vehicle Year 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996
Vehicle Brand Cadillac, Chevrolet
UPC Code 086429087167
Item Returns This item can be returned
