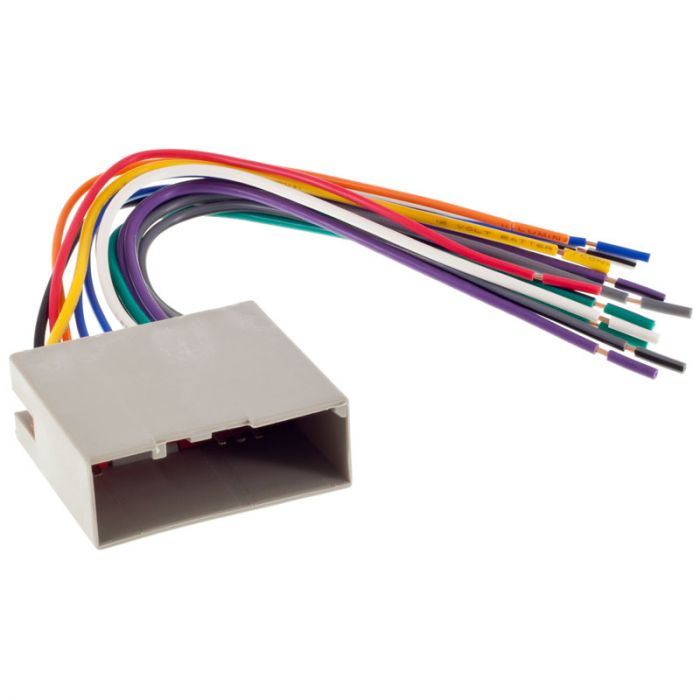

Metra 70-5520 TurboWires Wiring Harness 2003 - 2010 Ford, Lincoln and Mercury Connection Harness

$8.99
In stock
SKU
70-5520

Key Features

  • For select 2003-2007 Ford, Lincoln, Mercury vehicles
  • Connection Harness Plugs into OEM harness and provides connections for an aftermarket car radio
  • Includes 24 Pin factory plug
  • Power and 4-Speaker connections
Unit includes: 24 Pin Wiring Harness, and Instruction manual

Metra 70-5520 TurboWires Wiring Harness 2003 - 2010 Ford, Lincoln and Mercury Connection Harness

Features:
  • For select 2003 - 2010 Ford, Lincoln, Mercury vehicles
  • Connection Harness Plugs into OEM harness and provides connections for an aftermarket car radio
  • Includes 24 Pin factory plug
  • Power and 4-Speaker connections
  • Allows for the installation of an aftermarket radio using the existing factory wiring and connectors
  • No cutting of factory wiring needed
  • ABS plastic for maximum reliability
  • Factory OEM quality


24 Pin Connections:
  • Yellow – 12V Constant
  • Red – 12V Accessory
  • Black - Ground
  • Orange with White Stripe – (+) Illumination
  • Blue with Green Stripe - Ground (Maurader), clock (Others)
  • Blue with Yellow Stripe - PTA (Expedition)
  • Green – Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White – Left Front Speaker (+)
  • White with Black Stripe – Left Front Speaker (-)
  • Purple – Right Rear Speaker (+)
  • Purple with Black Stripe – Right Rear Speaker (-)
  • Gray – Right Front Speaker (+)
  • Gray with Black Stripe – Right Front Speaker (-)


Fitments:

Ford:
  • 2003 - 2010 Crown Victoria
  • 2009 - 2010 Econoline
  • 2004 - 2006 Expedition without navigation
  • 2003 Late production Expedition without navigation
  • 2009 - 2010 Explorer
  • 2006 - 2008 Explorer
  • 2009 - 2010 Explorer Sport Trac
  • 2007 - 2008 Explorer Sport Trac
  • 2008 - 2010 F-250 / F-350 / F-450 / F-550
  • 2005 - 2007 F-250 / F-350 / F-450 / F-550
  • 2009 - 2010 F-150 XL without package plus
  • 2007 - 2008 F-150
  • 2004 - 2006 F-150
  • 2005 - 2007 Five Hundred
  • 2005 - 2007 Focus
  • 2004 - 2007 Freestar
  • 2005 - 2007 Freestyle
  • 2006 - 2009 Fusion
  • 2008 Mustang early production
  • 2005 - 2007 Mustang
  • 2008 - 2009 Taurus
  • 2004 - 2005 Thunderbird


Hyundai:
  • 2006 - 2008 Sonata


Land Rover:
  • 2005 Freelander


Lincoln:
  • 2003 - 2006 LS without navigation
  • 2003 - 2006 Navigator without navigation and without THX
  • 2003 - 2010 Town Car without navigation and without THX


Mercury:
  • 2003 - 2010 Grand Marquis
  • 2003 - 2004 Marauder with Alpine radio
  • 2006 - 2009 Milan
  • 2005 - 2007 Montego
  • 2004 - 2007 Monterey
  • 2009 - 2010 Mountaineer
  • 2006 - 2008 Mountaineer
  • 2008 - 2009 Sable


More Information
Manufacturer Metra
Part Number 70-5520
Wiring harness function Replace Factory Radio
Warranty 1 Year
Vehicle Year 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010
Vehicle Brand Ford, Lincoln, Mercury
UPC Code 086429098958
Return period 30 days
Exchange period 30 days
