Metra TurboWires 70-7004 Mitsubishi 4 Speaker & Power Wiring Harness

Description

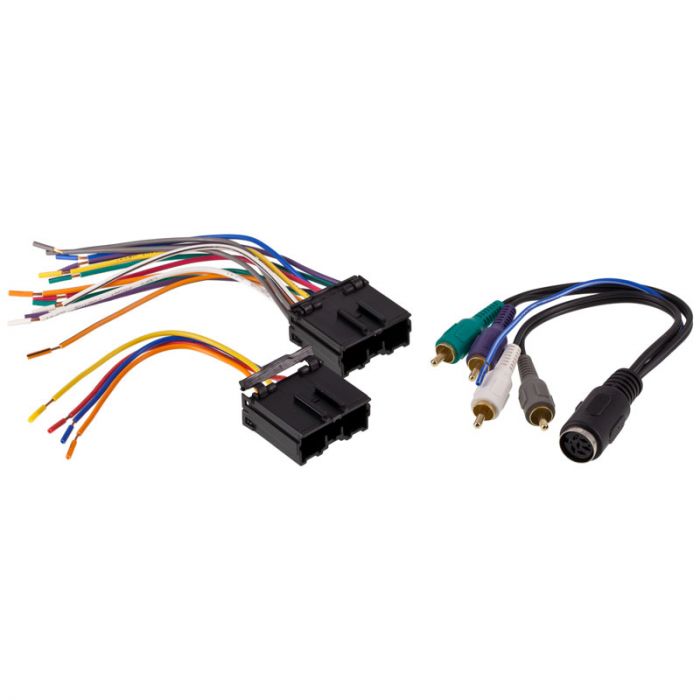

Unit Includes: DIN RCA Audio Wiring harness, Power harness, and Power speaker harness

Metra TurboWires 70-7004 Mitsubishi 4 Speaker & Power Wiring Harness features:

Features

Used when replacing factory radio with an aftermarket radio
Designed to plug into the factory radio connectors making it very easy to replace the factory car stereo
Allows installation of an aftermarket radio using the existing factory wiring and connectors.
Includes 16-pin power harness with speaker connections
Includes 8-pin din harness with RCA amplifier connections
Includes 16-pin power harness without speaker connections
No cutting of factory wiring is needed.
ABS plastic molded wires
GSXL wire for power handling and heat resistance
Pressure-inserted plug terminals
Pre-stripped end connectors

16-Pin Connector with Speaker Connections:

Yellow – 12V Constant
Red – 12V Accessory
Black - Ground
Orange – Dash Light Dimmer/Illumination
Blue - Power antenna lead
Green – Left Rear Speaker (+)
Green with Black Stripe Left Rear Speaker (-)
White – Left Front Speaker (+)
White with Black Stripe – Left Front Speaker (-)
Purple – Right Rear Speaker (+)
Purple with Black Stripe – Right Rear Speaker (-)
Gray – Right Front Speaker (+)
Gray with Black Stripe – Right Front Speaker (-)

16-Pin Connector without Speaker Connections:

Yellow – 12V Constant
Red – 12V Accessory
Orange – Dash Light Dimmer/Illumination
Blue - Power antenna lead

8-Pin DIN Connector without RCA Connections:

Green RCA – Left Rear Speaker lead
White RCA – Left Front Speaker lead
Purple RCA – Right Rear Speaker lead
Black RCA – Right Front Speaker lead
Blue with a white stripe- Power amplifier turn on lead

Fitments:

Dodge:

1994 - 1996 Dodge Stealth

Eagle:

1995 - 1998 Eagle Talon

Mitsubishi:

1994 - 1999 Mitsubishi 3000GT
1994 - 2004 Mitsubishi Diamante
1995 - 2005 Mitsubishi Eclipse
1994 - 2003 Mitsubishi Galant
2002 - 2007 Mitsubishi Lancer
1997 - 2002 Mitsubishi Mirage
1997 - 2005 Mitsubishi Montero
2003 - 2006 Mitsubishi Outlander

Specifications

More Information
Manufacturer	Metra
Part Number	70-7004
Wiring harness function	Replace Factory Radio
Color	White
Warranty	1 Year
Vehicle Year	1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Vehicle Brand	Dodge, Eagle, Mitsubishi
UPC Code	086429164585
Item Returns	This item can be returned
