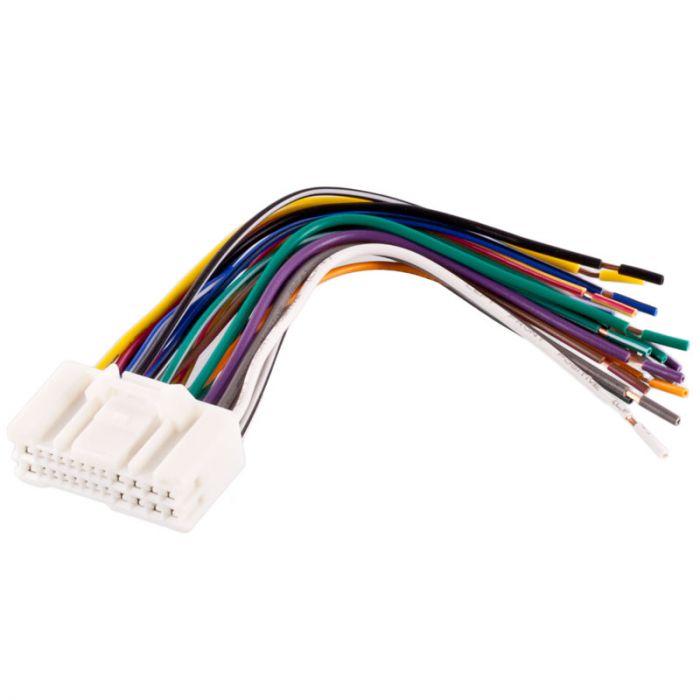

Metra 71-1004 TurboWires Wiring Harness for 2005 and Up Hyundai and Kia Vehicles

$13.99
In stock
SKU
71-1004

Key Features

  • Plugs into OEM Radio and designed as a replacement to the vehicle factory connectors when cut off
  • Power and 4-Speaker
  • Includes 24 Pin plug with factory tight connections
  • ABS plastic for maximum reliability
  • Makes replacing the factory car stereo very easy without cutting wires
Unit includes: 24-pin harness with stripped leads, and Instruction manual

Metra 71-1004 TurboWires Wiring Harness for 2005 and Up Hyundai and Kia Vehicles:

Harness Features:
  • Plugs into OEM Radio and designed as a replacement to the vehicle factory connectors when cut off
  • Power and 4-Speaker
  • Includes 24 Pin plug with factory tight connections
  • ABS plastic for maximum reliability
  • Factory OEM quality
  • Makes replacing the factory car stereo very easy without cutting wires
  • No modification to existing vehicle wiring
  • GSXL wire for power handling and heat resistance
  • Pressure-inserted plug terminals
  • Pre-stripped end connectors


Connections:
  • Yellow – 12V Constant
  • Red – 12V Accessory
  • Black - Ground
  • Blue with White Stripe - Amplifier turn on
  • Blue - Antenna turn on
  • Black with White Stripe - Right Aux in (+)
  • Blue with Black Stripe - Aux in ground
  • Gray with Brown Stripe - Rear Arm Remote Control
  • Green with White Stripe - Steering Wheel Control
  • Orange – Illumination
  • Green – Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White – Left Front Speaker (+)
  • White with Black Stripe – Left Front Speaker (-)
  • Purple – Right Rear Speaker (+)
  • Purple with Black Stripe – Right Rear Speaker (-)
  • Gray – Right Front Speaker (+)
  • Gray with Black Stripe – Right Front Speaker (-)
  • Red with White Stripe - Surround On and Off
  • White with Blue Stripe - Left Aux in (+)
  • White with Red Stripe - EQ sel / Aux in Common (-)
  • Yellow with Black Stripe - Telephone mute
  • Yellow with Red Stripe - Steering Wheel Control Reference Ground
  • Black with Yellow Stripe - Illumination (-)


Kit Components:
  • A) 24-pin harness with stripped leads
  • B) Instruction manual


Tools Required:

Optional parts:
More Information
Manufacturer Metra
Part Number 71-1004
Color White
Warranty 1 Year
Vehicle Year 2005, 2006, 2007, 2008, 2009, 2010, 2011
Vehicle Brand Hyundai, Kia
UPC Code 086429178971
