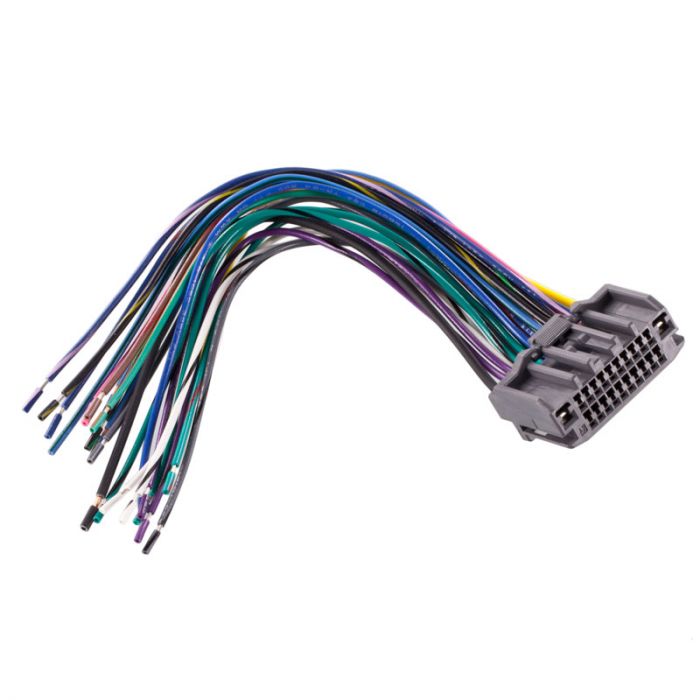

Metra TurboWires 71-6522 Car Stereo Wiring Harness for Chrysler, Dodge and Jeep 2007 and Up Vehicles
$20.99
In stock
SKU
71-6522
Expert Knowledge
Talk to a specialist
- Used to repair the factory harness for 2007 - and Up Chrysler, Dodge, and Jeep vehicles
- Includes 22 Pin factory plug
- Can be used to repair a harness where the plugs have been cut off or damaged
Unit includes: Wire harness, and Instruction manual
Metra TurboWires 71-6522 Car Stereo Wiring Harness for Chrysler, Dodge and Jeep 2007 and Up Vehicles:
Connections:
Fitments:
Chrysler:
Dodge:
Jeep:
Metra TurboWires 71-6522 Car Stereo Wiring Harness for Chrysler, Dodge and Jeep 2007 and Up Vehicles:
-
Features
- Used to repair the factory harness for 2007 - and Up Chrysler, Dodge, and Jeep vehicles
- Includes 22 Pin factory plug
- Can be used to repair a harness where the plugs have been cut off or damaged
- ABS plastic for maximum reliability
- Factory OEM quality
- Makes replacing the factory car stereo wiring very easy
Connections:
- Yellow – 12V Constant
- Blue with Pink Strip – CAN BUS (-)
- Pink – CAN BUS (+)
- Black with Green Strip – UCI Power Feed 2 Pass through (Navigation)
- Black with Yellow Strip – UCI EXT Receive (Navigation)
- Blue with Green Strip – UCI EXT Transmit (Navigation)
- Blue with Red Strip – UCI Device Detect (Navigation)
- Blue – Power Antenna
- Blue with Yellow Strip – Ground (Navigation)
- Black - Ground
- Brown with Red Strip – UCI Audio Reference (Navigation)
- Green with Orange Strip – UCI Audio Left input (Navigation)
- Gray with Blue Strip – UCI Audio Right input (Navigation)
- Green with Red Strip – Not Used
- Orange – Dash Light Dimmer/Illumination
- Green – Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White – Left Front Speaker (+) Non-Amplified
- White with Black Stripe – Left Front Speaker (-) Non-Amplified
- Purple – Right Rear Speaker (+)
- Purple with Black Stripe – Right Rear Speaker (-)
- Gray – Right Front Speaker (+) Non-Amplified
- Gray with Black Stripe – Right Front Speaker (-) Non-Amplified
Fitments:
Chrysler:
- 2007 - and Up
Dodge:
- 2007 - and Up
Jeep:
- 2007 - and Up
| Manufacturer | Metra |
|---|---|
| Part Number | 71-6522 |
| Wiring harness function | Repair Factory Wiring |
| Color | Black |
| Warranty | 1 Year |
| Vehicle Year | 2007, 2008, 2009, 2010, 2011, 2012, 2013 |
| Vehicle Brand | Chrysler, Dodge, Jeep |
| UPC Code | 086429167104 |
| Item Returns | This item can be returned |
