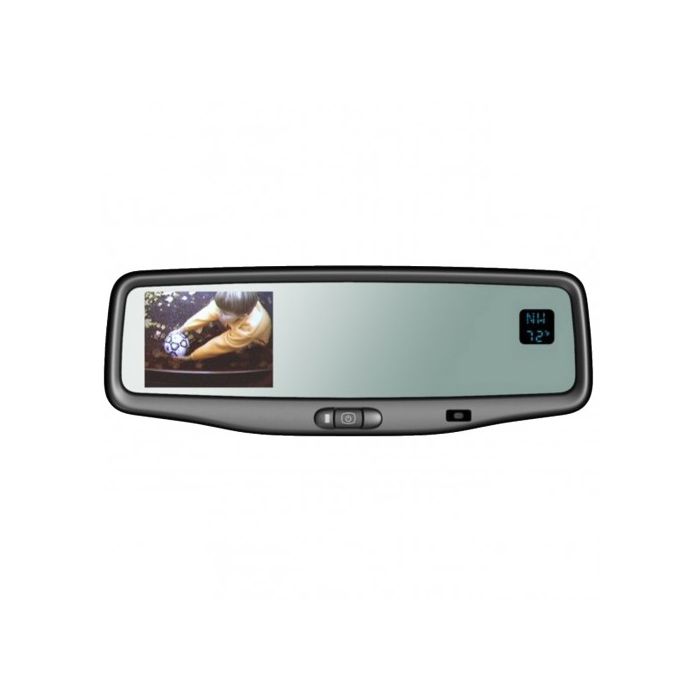

Factory Mirror with 3.5" Backup Monitor, Compass and Temp Gauge 9002-9516A

Factory Mirror with 3.5" Backup Monitor, Compass and Temp Gauge 9002-9516A

Factory Mirror with 3.5" Backup Monitor, Compass and Temp Gauge 9002-9516A

More Views

Quality Mobile Video
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Quality Mobile Video 9002-9516A Product Highlights

  • Factory Look Mirror with Built in 3.5" LCD Monitor
  • Top Of The Line Rear View Mirror
  • Optional Compass and Temperature Gauge
  • Auto Dimming Ability
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist


See what you've been missing with an original equipment OEM rear view mirror with 3.5” backup display that activates when you shift into reverse. This mirror is an original factory upgrade with integrated compass/temperature display, not an imitation. Gain an important safety feature found in many of today's well-equipped vehicles.

Factory Rear Vision Direct to You

Perhaps you've seen this helpful new technology in a friend's new car or truck. You loved how it works — the rear view mirror looks like a normal mirror until you put the car in reverse and then — a crisp panoramic picture of what's behind your vehicle pops up on your mirror. You no doubt appreciated the new peace of mind and added degree of safety when backing up. Now, through an exclusive factory-direct arrangement you can enjoy the same high quality factory mirror-based rear vision system found in newer cars and trucks with no loss of features in your vehicle.
This high quality OEM mirror comes with a universal harness that lets you connect it to any standard aftermarket camera, including our own high-grade universal camera, which is available separately (click here).

Your Source for Factory-Original Equipment

Brandmotion specializes in bringing the same equipment found on today's new cars and trucks direct to you at substantial savings. This mirror is identical to OEM upgrade mirrors costing hundreds more, and connects easily. The outline of the hidden 3.5” monitor is completely invisible until you put your car in reverse, unlike many less advanced systems available in the aftermarket. Includes an integrated compass/temperature display. Professional installation is recommended.

Key Benefits:
  • An OEM-grade replacement for your vehicle's factory original mirror
  • Large 3.5” color backup monitor displays vividly when you put your car in reverse
  • Integrated compass/temperature display
  • Compatible with all standard backup cameras through the included installation harness
  • Includes harness with RCA jack
  • Includes temperature sensor probe and harness
  • Display on/off button
  • Increased vehicle resale value
  • One year factory warranty
  • 3.5" TFT LCD Mirror Monitor
  • Integrated compass and temperature display
  • High Resolution Image Display
  • Auto Dimming
  • 2-minute auto shutoff


This OEM rear view mirror with backup monitor is compatible with all vehicles with a compatible windshield mounting plate, known as a domestic wedge mount. If your vehicle has a mirror that mounts from the headliner (it's not on the windshield) you will need to place this tab on your vehicle's windshield.
If your vehicle has a windshield mount that is different than the standard wedge mount you will have to either place a wedge mount on your windshield in a different location, or use a specific adaptor that will allow our mirror to fit over your existing mount. We do not recommend trying to remove your vehicle's existing windshield mount without professional help.
Our mirrors will work with any vehicle that uses 12 DC current. In many cases the electrical connections can be made at the mirror. In other cases it may be necessary to make connections at the fuse/ junction box of your vehicle.
If your current factory rear view mirror does not have the built-in compass and temperature gage that this mirror includes, you will still be able to use this product as it ships with a temperature sensor probe and harness combination.

Rear Vision Application Guide
Installation Instructions

Q: After installation the picture comes on for a split second and then disappears.
A: Check you camera connection, your camera must turn on instantly or already be on when the vehicle is shifted into reverse. If the mirror does not see an image fast enough it assumes that the camera is not present and so it turns off. (We recommend connecting the camera to ignition).

Q: Where do I connect my 2 wire temperature sensor?
A: Use pins 6 & 7, the sensors are resistance based and so there is no + or -.

Q: Where is the compass located?
A: All compass parts are built into mirror, there are no external parts.

Technical Specifications

Manufacturer Quality Mobile Video
Part Number 9002-9516A
Modulation No
Homelink No
Auto Dimming Yes - Full Auto Dimming
Options No
Warranty 1 Year
Color No
Viewing Angle No
Camera diameter No
Case included No
Connector Type No
Built in Microphone No
Parking grid lines No
Reverse Image No
Trigger wire No
Waterproof ingress protection No
Auto on/off Yes
Audio Video inputs 1 Video Input
Back up camera type No
Built in Bluetooth No
Built in Speakers No
Camera Sensor type No
Cigarette Lighter Cord Included No
Image Flip Function No
Infrared Illumination No
LCD back light type No
LCD Screen Brightness 400 Nit
Mirror Mount Type No
LCD Screen Size 3 inch - 4 inch
Native Screen Resolution 480 x 234
Slide track on back No
Mount included No
Wireless Remote Control No
Widescreen Display No
Wireless Transmission No
Operation Voltage No
Compass N/A
Temperature N/A
Vehicle Year No
Vehicle Brand No
Vehicle Model No
UPC Code No
