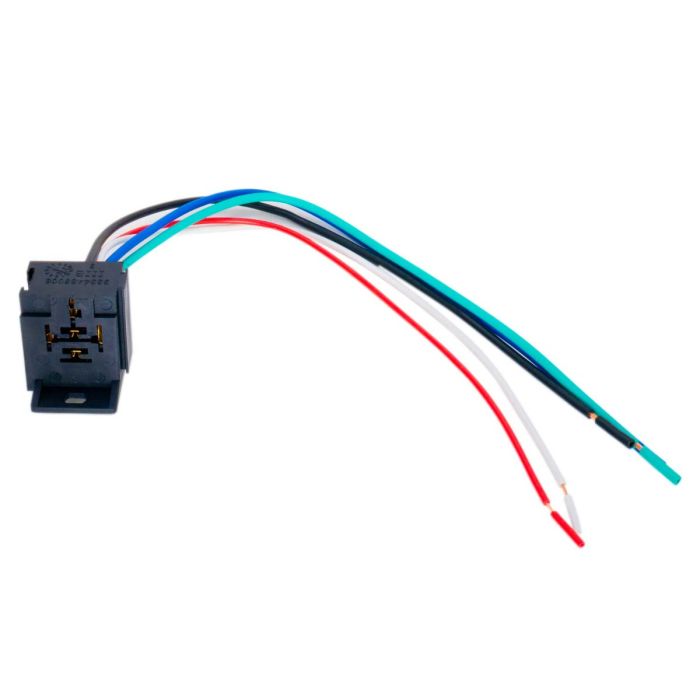

Quality Mobile Video BRS14PT 12 VDC Prewired Automotive 5-Pin Relay Socket with interlock and mounting tab
$3.59
In stock
SKU
BRS14PT
- Buy 50 for $3.34 each and save 7%
- Buy 100 for $3.23 each and save 10%
Expert Knowledge
Talk to a specialist
- Fit all automotive Bosch and TS Connectivity style relays regardless of manufacturer
- Integrated male and female slide tracking allowing you to combine multiple relay sockets for neat installations
- Rated for 30 amp current draw
- SPDT - Single pole dual throw
- 14 gauge 5 inch long wiring leads
- Plastic mounting tab with screw hole
Unit includes: 12 volt relay socket
The BRS14PT is a premium 12VDC 5-pin full-size relay socket with a built-in interlock system, engineered for clean and professional relay installations in automotive, marine, racing, and industrial applications.
This full-size socket makes installing and servicing relays fast and straightforward. Its rugged construction delivers reliable performance in tough environments, while the innovative slide-track interlock design lets you easily link multiple sockets together to create neat, organized relay banks.
Whether you're building a custom audio system, auxiliary lighting setup, winch controls, or a complete vehicle accessory panel, the BRS14PT provides a clean, professional, and service-friendly solution. Relay replacement is quick and simple — no need to trace or disconnect multiple wires.
-
Features:
- Fit all automotive Bosch style relays regardless of manufacturer
- Built-in interlock system for linking multiple sockets side-by-side
- Plastic mounting tab with screw hole
- Makes relay installation and replacement fast and tool-free
- Rated for 30 amp current draw
- SPDT - Single pole dual throw
- 18 gauge coil wires
- 14 gauge switching wires
- Conventional 87, 87a, 30, 86, and 85 pin locations
- Completely insulated terminals
- 11 inch wiring leads
-
Dimensions:
- Socket: 1 3/8" (w) x 1 7/16" (D) x 1-7/16" (H)
- 14 gauge 11-1/2 inch long wiring leads
- Pin 30 - (Black wire) Constant Ground or Constant positive (This will be what the relay switches)
- Pin 85 - (Red wire) Coil
- Pin 86 - (White wire) Coil
- Pin 87a - (Blue wire) Normally closed contact
- Pin 87 - (Green wire) Normally open contact
Pin configuration (When using BU509TD Time Delay Relay):
- Pin 30 - (Black wire) - Must have constant or accessory 12 volts all-time, as this is what powers the circuit on the relay
- Pin 85 - (Red wire) - Single pulse (+12 volts) to trigger time delay off (Constant 12 volts can be applied and once +12 volts is removed relay will stay latched for duration of timer.)
- Pin 86 - (White wire) - Ground
- Pin 87a - (Blue wire) - (+12) volt output (Normally closed contact - on except when time delay is active)
- Pin 87 - (Green wire) - (+12) volt output (Normally open contact - on for duration of set time)
Pin configuration (When using BU510TD Time Delay Relay):
- Pin 30 - (Black wire)- Must have constant or accessory 12 volts all-time, as this is what powers the circuit on the relay
- Pin 85 - (Red wire) - Constant (+12 volts) to trigger time delay on (Requires the removal of +12 volts to reset the timer)
- Pin 86 - (White wire) - Ground
- Pin 87a - (Blue wire) - (+12) volt output (Normally closed contact - on except when time delay is active)
- Pin 87 - (Green wire) - (+12) volt output (Normally open contact - on for duration of set time)
| Manufacturer | Quality Mobile Video |
|---|---|
| Part Number | BRS14PT |
| Relay type | Full size 5 Pin relay |
| Tab type | Plastic Tab |
| Warranty | 1 Year |
| California Proposition 65 |  Warning:This product can expose you to chemicals including lead, which is [are] known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
| Item Returns | This item can be returned |
Write Your Own Review
Relay Sockets – Complete Guide
What is a Relay Socket?
A relay socket (also called a relay base or relay holder) is the plastic base that a relay plugs into. It provides secure electrical connections and makes it easy to install, replace, or service the relay without cutting or soldering wires directly to the relay pins.
Why Use a Relay Socket?
- Makes relay replacement quick and tool-free
- Protects the relay terminals
- Allows for cleaner, more professional wiring
- Easier to add fuses, diodes, or resistors
- Enables modular and expandable designs
Main Types of Relay Sockets
| Type | Size | Pins | Interlocking | Best For |
|---|---|---|---|---|
| Micro Relay Socket | Small | 5 | Yes/No | Tight spaces |
| Full-Size Relay Socket | Standard | 5 | Yes/No | High current, custom builds |
| ISO Relay | Large | 4/5 | Usually No | OEM replacements |
Key Features Explained
- Interlocking (BRSPC, BRS14PT, BRS14E, BRS12E, BRS14MR, BRSCP) – Can be connected together to form neat relay banks
- Non-Interlocking (BRSC, BRSP) – Individual sockets for flexible spacing
- Socket Only vs With Contacts (BRSCN comes with terminals)
- Solder Tab (BRSS) – Best for high-vibration environments
Standard 5-Pin Relay Socket Pinout
- 30 – Power Input (Common)
- 87 – Normally Open Output
- 87a – Normally Closed Output
- 85 – Coil Ground
- 86 – Coil Positive (+12V trigger)
Common Applications
- Custom car audio systems
- Auxiliary lighting (LED bars, fog lights)
- Cooling fans & fuel pumps
- Winches and horns
- Marine and race car electrical systems
Pro Tip: Always use a fuse on Pin 30 and consider dielectric grease for better corrosion protection.
Pro Tips for Using Relay Sockets
- Always use the correct wire gauge — Match wire size to your current load (e.g., 12–14 AWG for 20–30A applications).
- Add a fuse on Pin 30 — This is critical for safety. Place an appropriately rated fuse as close as possible to the power source.
- Use dielectric grease — Apply a small amount on the relay pins and inside the socket to prevent corrosion and improve electrical contact.
- Choose solder tab sockets for high vibration — For race cars, off-road vehicles, or marine use, the BRSS (solder tab version) offers superior vibration resistance.
- Take advantage of interlocking sockets — Models like BRSPC or RS102E allow you to create clean, professional-looking relay banks with minimal space.
- Label your relays and wires — Makes future troubleshooting much easier.
Bonus Tip: When using crimp terminals, always use a quality crimping tool and double-check for solid connections before final installation.
