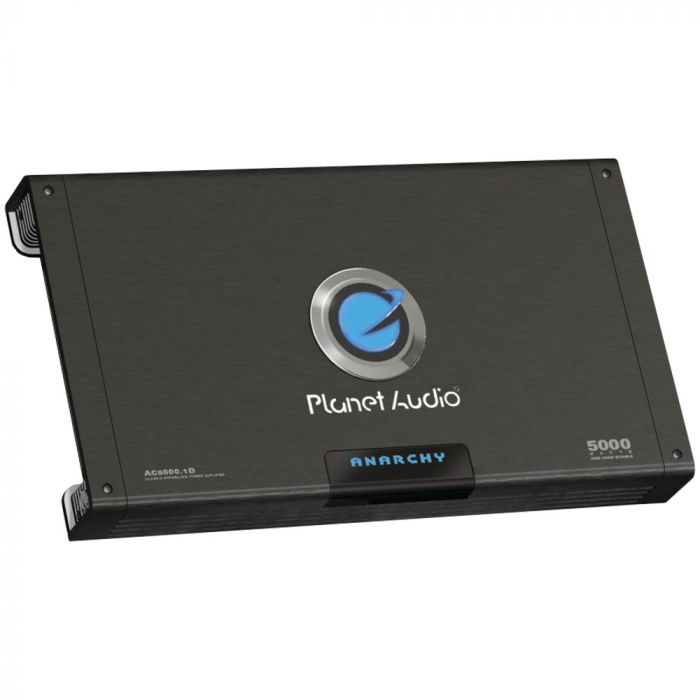

DISCONTINUED - Planet Audio AC5000.1D Anarchy Class D Mono Amplifier 5000W Max 1800W x 1 @ 4 Ohm 2500W x 1 @ 2 Ohm 3500W x 1 @ 1 Ohm
More Views
Overview
Planet Audio AC5000.1D Anarchy Class D Mono Amplifier 5000W Max 1800W x 1 @ 4 Ohm 2500W x 1 @ 2 Ohm 3500W x 1 @ 1 Ohm
- Quick Overview
- ANARCHY Class D Mono Amplifier (5,000W max; 1,800W x 1 @ 4 Ohm; 2,500W x 1 @ 2 Ohm; 3,500W x 1 @ 1 Ohm)
- UPC: 636210103738
- Weight: 14.15 lbs.
- Dimensions: 22.3" L x 12.2" W x 0" H
- Product Description
- 1 Ohm stable
- Switchable input sensitivity: 100 mV-2V or 2V-8V
- Switchable phase shift (0-180)
- Variable bass boost (0-18 dB)
- Continuously variable lowpass crossover
- Variable subsonic filter (15 Hz-40 Hz)
- Low level inputs & outputs
- Power & protection LEDs
- Heavy duty set-screw style terminals
- Chrome-plated connections
- Illuminated logo
- Signal-to-noise ratio: 105 dB
- Freq resp: 20 Hz-250 Hz
- Dim: 18"L x 10"W x 2.19"H
- 5,000W max
- 1,800W x 1 @ 4 Ohm
- 2,500W x 1 @ 2 Ohm
- 3,500W x 1 @ 1 Ohm
Technical Specifications
| Manufacturer | Planet Audio |
|---|---|
| Part Number | AC50001D |
| Amplifier Topology Class | Class D |
| Number of Channels | 1 Channel |
| Total RMS Power at 1 ohm | 3750 Watts |
| Total RMS Power at 2 ohm | 1875 Watts |
| Total RMS Power at 4 ohm | 938 Watts |
| RMS Output per Channel (x1 at 4 ohms) | 0 Watts |
| RMS Output per Channel (x2 at 4 ohms) | 0 Watts |
| RMS Output per Channel (x4 at 4 ohms) | 0 Watts |
| Total Peak Power Output | 5000 Watts |
| Amplifier Bridging | No |
| Minimum Impedance in Bridged Mode | No |
| Minimum Impedance in Un-Bridged Mode | No |
| Strappable Amplifier | Yes |
| Strappable Power Output | No |
| RCA Pre-amp Audio inputs | 1 Pair |
| RCA Pre-amp Audio outputs | No |
| Preamp voltage | No |
| Speaker level inputs | No |
| Gain Control | No |
| Bass Knob / Remote Gain | No |
| Built in Crossover | Low-pass |
| Cooling Fan | No |
| Color | No |
| Warranty | 1 Year |
| Recommended Power Wire Gauge | 0 Gauge |
| Overall Height | 0 Inches |
| Overall Length | 0 Inches |
| Overall Width | 0 Inches |
| CEA2006 Compliant | N/A |
| UPC Code | 636210103738 |
