DISCONTINUED - Metra AFDI-RSE-01 Ford / Lincoln / Mercury Can-Bus Rear seat entertainment system Interface

DISCONTINUED - Metra AFDI-RSE-01 Ford / Lincoln / Mercury Can-Bus Rear seat entertainment system Interface

Metra AFDI-RSE-01 Ford Rear Seat Entertainment interface

More Views

Metra
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Metra AFDI-RSE-01 Product Highlights

  • Provides all connections to factory wiring and makes installing an aftermarket stereo very easy in select 207 - and Up Ford vehicles with factory rear seat entertainment systems
  • Provides accessory output for databus signals (12-volt 10-amp capable output)
  • Retains R.A.P. (retained accessory power) while doors remain closed so you can continue to listen to the radio until doors open
  • Interface is designed to be used with factory non-amplified systems or factory amplified audio systems
  • Interface willl allow factory overhead DVD system to work with an aftermarket radio
  • Provides rear seat audio output so that you can connect to Aux input on an aftermarket car stereo via RCA cables or 3.5mm jack
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
Save money on all Metra installation hardware when you purchase more than one installation piece of hardware!

Frequently Bought Together

Overview

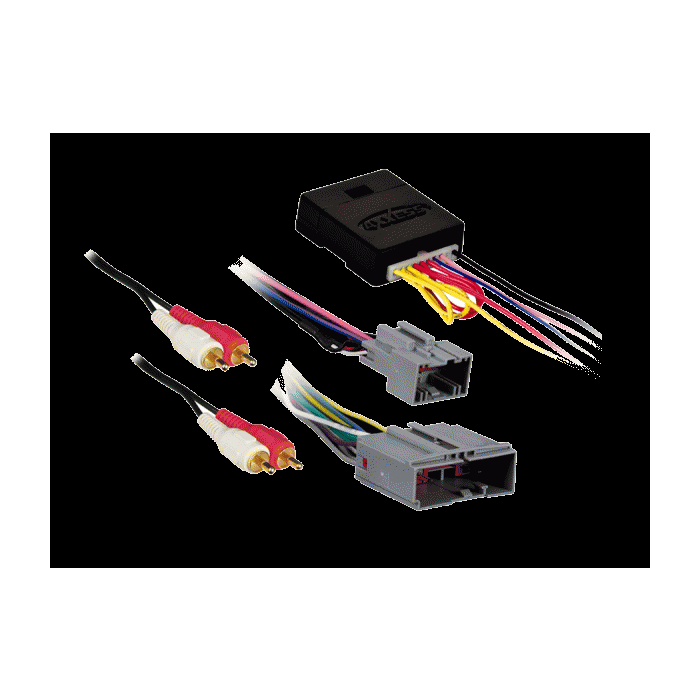

Unit includes: A)Interface, B) Power and speaker harness, and Instruction manual

Metra AFDI-RSE-01 Ford Rear Seat Entertainment interface with Navigation outputs

Interface Features:
  • Provides all connections to factory wiring and makes installing an aftermarket stereo very easy in select 207 - and Up Ford vehicles with factory rear seat entertainment systems
  • Provides accessory output for databus signals (12-volt 10-amp capable output)
  • Retains R.A.P. (retained accessory power) while doors remain closed so you can continue to listen to the radio until doors open
  • Interface is designed to be used with factory non-amplified systems or factory amplified audio systems
  • Interface willl allow factory overhead DVD system to work with an aftermarket radio
  • Provides rear seat audio output so that you can connect to Aux input on an aftermarket car stereo via RCA cables or 3.5mm jack
  • Perfect for use with aftermarket navigation system as interface provides navigation system outputs (parking brake, reverse, mute, V.S.S.) from databus signals
  • Includes prewired ASWC Steering wheel interface harness (ASWC Steering wheel interface not included)
  • 4 - High level speaker inputs makes connections for aftermarket car stereo's to factory speakers easy
  • USB firmware updatable
  • Retains balance and fader


Connections:
  • Yellow – 12V Constant
  • Red – 12V Accessory
  • Black - Ground
  • Orange with White Stripe – Radio illumination (+)
  • Blue – Antenna turn on
  • Green – Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White – Left Front Speaker (+)
  • White with Black Stripe – Left Front Speaker (-)
  • Purple – Right Rear Speaker (+)
  • Purple with Black Stripe – Right Rear Speaker (-)
  • Gray – Right Front Speaker (+)
  • Gray with Black Stripe – Right Front Speaker (-)
  • The RCA’S with the RSE label is the audio from the overhead console. Plug these into the radio’s rca auxillary audio input
  • The RCA’s with the AUX label is the audio from the 3.5mm aux jack if the vehicle is so equipped


Kit Components:
  • A) Interface
  • B) Power and speaker harness
  • C) Instruction manual


Tools Required:

Optional parts:

Vehicle Applications:

Ford:
  • 2007 - 2010 Edge
  • 2007 - 2010 Expedition
  • 2007 - 2010 Explorer
  • 2007 - 2010 Explorer Sport Trac
  • 2009 - 2010 F-150
  • 2007 - 2007 Five Hundred
  • 2009 - 2010 Flex
  • 2008 - 2010 Taurus
  • 2008 - 2008 Taurus X


Lincoln:
  • 2007 - 2010 MKX
  • 2007 - 2010 Navigator


Mercury:
  • 2007 - 2007 Montego
  • 2008 - 2010 Mountaineer
  • 2008 - 2008 Sable


Technical Specifications

Manufacturer Metra
Part Number AFDI-RSE-01
Integration Module No
Steering Wheel Control Input No
RCA Pre-amp Audio inputs No
Speaker level inputs No
Warranty 1 Year
Vehicle Year No
Vehicle Brand No
Vehicle Model No
UPC Code 086429183272
