PAC AOEM-FRD24 2003 and Up Ford add an amplifier interface

PAC AOEM-FRD24 2003 and Up Ford add an amplifier interface

PAC AOEM-FRD24 2003 and Up Ford add an amplifier interface

More Views

PAC
Free Shipping on orders $99+

Overall Rating 0 (Based on 0 reviews)

PAC AOEM-FRD24 Product Highlights

  • Fits 2003 and up select Ford vehicles
  • Interface is designed to be used with factory radios and converts radio outputs to aftermarket amplifier audio connections
  • Provides front and rear low level outputs
  • Provides full range audio output 20-20,000Hz
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
Save money on all Metra installation hardware when you purchase more than one installation piece of hardware!

Overview

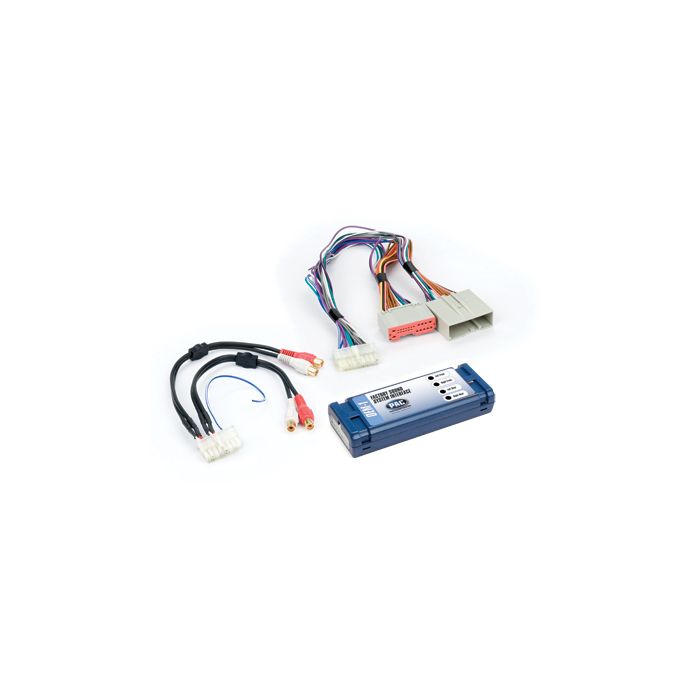

Unit includes: A) AOEM-FRD24 interface, B) PAC Factory harness, C) Chrysler harness, and Instruction manual

PAC AOEM-FRD24 2003 and Up Ford amplified audio system interface:

Interface Features:
  • Provides line level output for aftermarket amplifiers and makes adding or replacing an amplifier easy
  • Works with non-amplified, audio systems
  • Not compatible in vehicles equipped with the THX or Sony amplified systems
  • Not compatible with Navigation equipped vehicles
  • Interface is designed to be used with factory systems and converts factory radio outputs to and aftermarket amplifier
  • 4 - High level speaker inputs makes connections for aftermarket amplifier easy
  • Provides front and rear low level outputs
  • Retains balance and fader
  • Provides full range audio output 20-20,000Hz
  • Interface is transformer isolated to prevent damage to factory radio in the event of an issue with aftermarket amplifier


Connections:
  • Black - Ground
  • Red - 12 volts (+)
  • Yellow - 12 volts Accessory (+)
  • Green - Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White - Left Front Speaker (+)
  • White with Black Stripe - Left Front Speaker (-)
  • Purple - Right Rear Speaker (+)
  • Purple with Black Stripe - Right Rear Speaker (-)
  • Gray - Right Front Speaker (+)
  • Gray with Black Stripe - Right Front Speaker (-)


Kit Components:
  • A) AOEM-FRD24 interface
  • B) RCA harness
  • C) 24-pin Ford harness
  • D) Instruction manual


Tools Required:

Vehicle Applications:

Ford:
  • 2007 - 2009 Edge
  • 2005 - 2010 Escape
  • 2005 - 2005 Excursion
  • 2004 - 2010 Expedition
  • 2006 - 2010 Explorer
  • 2007 - 2010 Explorer Sport Trac
  • 2004 - 2012 F-150
  • 2005 - 2010 F-250
  • 2005 - 2010 F-350
  • 2005 - 2010 F-450
  • 2005 - 2007 500
  • 2009 - 2009 Flex
  • 2005 - 2010 Focus
  • 2004 - 2007 Freestar
  • 2005 - 2007 Freestyle
  • 2006 - 2010 Fusion
  • 2005 - 2014 Mustang
  • 2008 - 2010 Taurus
  • 2008 - 2009 Taurus X




Lincoln:
  • 2006 - 2008 Mark LT
  • 2009 - 2009 MKS
  • 2007 - 2010 MKX
  • 2007 - 2010 MKZ
  • 2003 - 2010 Navigator
  • 2006 - 2006 Zephyr


Mercury:
  • 2005 - 2010 Mariner
  • 2006 - 2010 Milan
  • 2005 - 2007 Montego
  • 2004 - 2007 Monterey
  • 2006 - 2010 Mountaineer

Technical Specifications

Manufacturer PAC
Part Number AOEM-FRD24
Integration Module No
Steering Wheel Control Input No
RCA Pre-amp Audio inputs No
Speaker level inputs No
Warranty 1 Year
Vehicle Year No
Vehicle Brand Ford, Lincoln, Mercury
Vehicle Model No
UPC Code 0606523107402
