PAC AOEM-GM24 2001 and Up General Motors add an amplifier interface
$57.99
In stock
SKU
AOEM-GM24
Expert Knowledge
Talk to a specialist
- Fits 2001 and Up select General Motors vehicles
- Interface is designed to be used with factory radios and converts radio outputs to aftermarket amplifier audio connections
- Provides front and rear low level outputs
- Provides full range audio output 20-20,000Hz

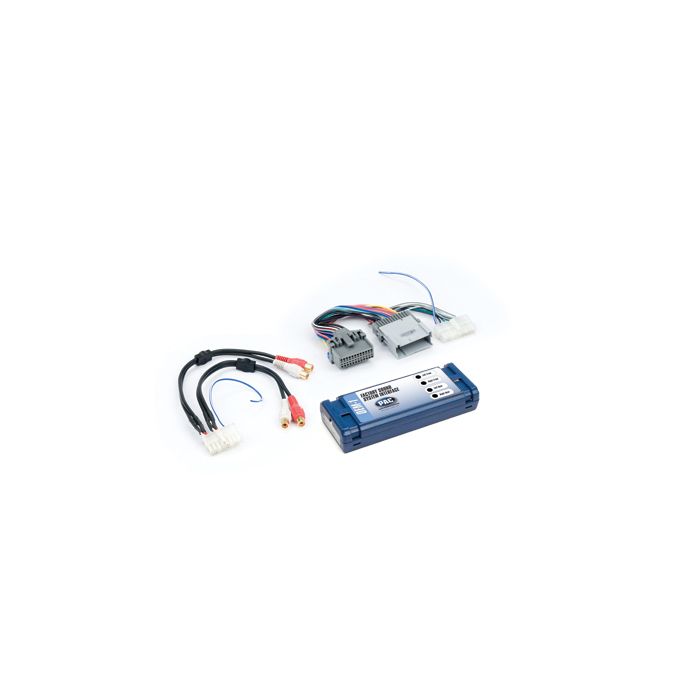

Unit includes: A) AOEM-GM24 interface, B) RCA harness, C) General Motors harness, and Instruction manual
PAC AOEM-GM24 2001 and Up General Motors amplified audio system interface:
Interface Features:
Connections:
Kit Components:
Tools Required:
Vehicle Applications:
Buick:
Cadillac:
Chevrolet:
GMC:
Hummer:
Isuzu:
Oldsmobile:
Pontiac:
Saab:
PAC AOEM-GM24 2001 and Up General Motors amplified audio system interface:
Interface Features:
- Provides line level output for aftermarket amplifiers and makes adding or replacing an amplifier easy
- Works with non-amplified, audio systems
- Not compatible with premium factory amplified systems
- Not compatible with Navigation equipped vehicles
- Interface is designed to be used with factory systems and converts factory radio outputs to and aftermarket amplifier
- 4 - High level speaker inputs makes connections for aftermarket amplifier easy
- Provides front and rear low level outputs
- Retains balance and fader
- Provides full range audio output 20-20,000Hz
- Interface is transformer isolated to prevent damage to factory radio in the event of an issue with aftermarket amplifier
Connections:
- Green – Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White – Left Front Speaker (+)
- White with Black Stripe – Left Front Speaker (-)
- Purple – Right Rear Speaker (+)
- Purple with Black Stripe – Right Rear Speaker (-)
- Gray – Right Front Speaker (+)
- Gray with Black Stripe – Right Front Speaker (-)
Kit Components:
- A) AOEM-GM24 interface
- B) RCA harness
- C) General Motors harness
- D) Instruction manual
Tools Required:
- Panel Removal tool
- Cutting tool
- Crimping tool
- Electrical tape
- Crimp connectors
Vehicle Applications:
Buick:
- 2005 - 2007 LaCrosse
- 2004 - 2007 Rainier
- 2004 - 2007 Rendezvous
- 2005 - 2007 Terraza
Cadillac:
- 2003 - 2006 Escalade
Chevrolet:
- 2003 - 2006 Avalanche
- 2000 - 2005 Cavalier
- 2004 - 2007 Colorado
- 2005 - 2013 Corvette
- 2003 - 2007 Express
- 2003 - 2005 Impala
- 2003 - 2005 Monte Carlo
- 2003 - 2007 Silverado
- 2003 - 2006 SSR
- 2003 - 2006 Suburban
- 2003 - 2006 Tahoe
- 2002 - 2009 Trailblazer
- 2005 - 2009 Uplander
- 2003 - 2005 Venture
GMC:
- 2004 - 2009 Canyon
- 2002 - 2008 Envoy
- 2003 - 2006 Savana
- 2003 - 2007 Sierra
- 2003 - 2006 Yukon
Hummer:
- 2003 - 2007 H2
- 2005 - 2009 H3
Isuzu:
- 2003 - 2008 Ascender
Oldsmobile:
- 2001 - 2004 Alero
- 2002 - 2004 Bravada
- 2000 - 2004 Silhouette
Pontiac:
- 2001 - 2005 Aztec
- 2001 - 2005 Grand Am
- 2004 - 2008 Grand Prix
- 2000 - 2006 Montana
- 2005 - 2006 Montana SV6
- 2003 - 2005 Sunfire
- 2006 - 2008 Vibe
Saab:
- 2008 - 2008 9-7X
| Manufacturer | PAC |
|---|---|
| Part Number | AOEM-GM24 |
| Wiring harness function | Replace Factory Radio |
| Warranty | 1 Year |
| Vehicle Brand | Buick, Cadillac, Chevrolet, GM, GMC, Hummer, Isuzu, Oldsmobile, Pontiac, Saab |
| UPC Code | 606523105767 |
| Return period | 30 days |
| Exchange period | 30 days |
