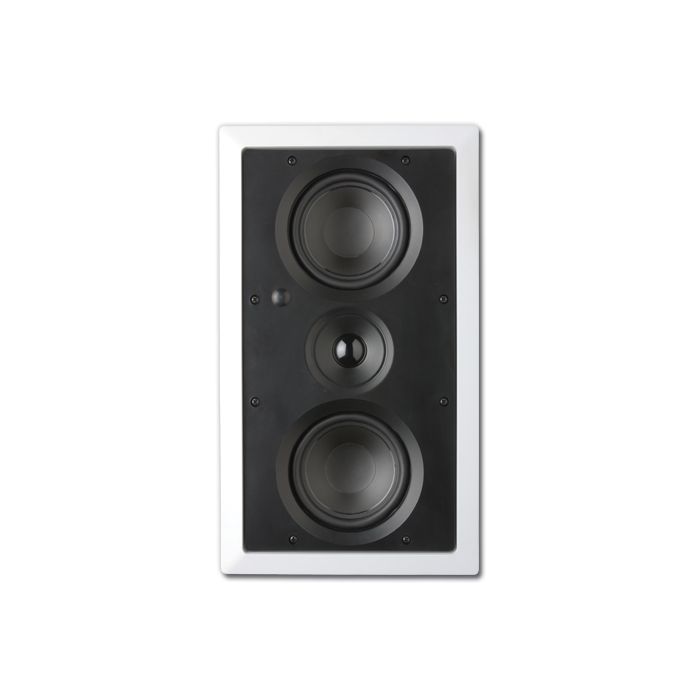

ArchiTech AP-525 LCRS Dual 5-1/4" 2-Way In-Wall Speaker

ArchiTech AP-525 LCRS Dual 5-1/4" 2-Way In-Wall Speaker

ArchiTech AP-525 LCRS Dual 5-1/4" 2-Way In-Wall Speaker - Mounted vertical no grille

More Views

Quality Mobile Video
Free Shipping on orders $99+

Overall Rating 0 (Based on 0 reviews)

Quality Mobile Video AP-525LCRS Product Highlights

  • Specially designed for use in left, center, right & surround loudspeaker positions of home theater systems
  • Magnetically Shielded
  • Can be used in 2.1, 5.1, 6.1, 7.1 Home Theater systems
  • Mounting provision for IR device
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Overview

Unit includes: In wall loudspeaker, Speaker grille, Mounting Clamp ring, Clamp screws, and Instruction manual

ArchiTech AP-525 LCRS Dual 5-1/4" 2-Way In-Wall Speaker
  • Specially designed for use in left, center, right & surround loudspeaker positions of home theater systems
  • Magnetically Shielded
  • Can be used in 2.1, 5.1, 6.1, 7.1 Home Theater systems
  • Poly woofers with butyl rubber surrounds
  • Far-forward woofer mount with pole-mounted tweeter minimizes diffraction while maximizing dispersion
  • Mounting provision for IR device
  • High temperature Aluminum voice coils
  • Proven Mounting System
  • Frame and Grilles may be painted to match mounting surface
  • Sold individually
  • Required depth: 3.5"
  • Dual 5.25" woofers
  • 2-way rectangular design
  • Imp: 8Ω nominal
  • 50W–100W per channel
  • Overall Dimensions: 9" (W) x 15-3/4" (H)
  • Cut-out Dimensions: 7-7/8" (W) x 14-7/16" (H) x 3-1/2" (D)

Technical Specifications

Manufacturer Quality Mobile Video
Part Number AP-525LCRS
Warranty Lifetime
Sensitivity 91 dB
Frequency Response 45 - 20,000 Hz
Mounting Depth No
Cutout Dimensions No
Built in Crossover High-pass
Speaker level inputs No
Impedance (per voice coil) 8 ohm
Power Handling RMS 100 Watts
Driver Size 5-1/4 inch
Sub enclosure type N/A
Number of speakers / subs 1
Power Handling Peak 200 watts
Color White
Speaker system type In-Wall
Voice coils Single voice coil
UPC Code 769381090061
