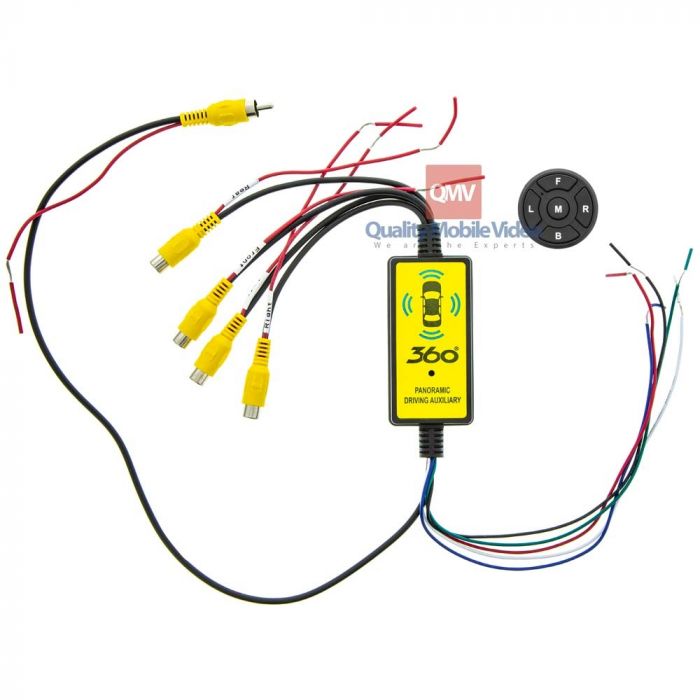

The Quality Mobile Video AVS360 connects front, rear, left, and right RCA cameras to a single video input. The switcher automatically displays the corresponding side camera when a turn signal is activated and selects the rear camera when the vehicle is shifted into reverse. After leaving reverse, the optional front-camera delay displays the front view for approximately seven seconds before turning off. The included wireless remote provides manual access to each camera whenever additional visibility is needed. Each camera input includes a 12-volt power connection, while the shared video output includes a trigger wire for activating a compatible monitor or receiver. The AVS360 operates from 8 to 16 volts DC and incorporates power protection for the module, cameras, and vehicle circuits. It displays one camera at a time and does not create a stitched bird’s-eye or quad-screen image.

Features:

• Wireless remote controlled 4-Way video switcher for switching between four video sources on a single screen
• Cannot be used to display four sources at the same time
• 4 Camera Inputs include: Left, Right, Front and Rear
• Includes Wireless Remote Control
• 1 Video Output
• Video 1 has input priority (A)
• Video 2 has input priority (B)
• Video 3 has input priority (C)
• Video 4 has input priority (D)
• Power, Ground, Turn-on Wire
• Auto default to video 1 when signal is present and will switch to video 2 when signal is present
• Module requires 12 volt power
• Can be used for rear/front/left/right camera or video source switching

Inputs and Outputs

• 4 - Video inputs
• 1 - Video Output
• 1 - Positive power input (Red wire)
• 1 - Negative power input (Black wire)
• 1 - Reverse trigger input (Blue wire)
• 1 - Right trigger input (Green wire)
• 1 - Left trigger input (White wire)
