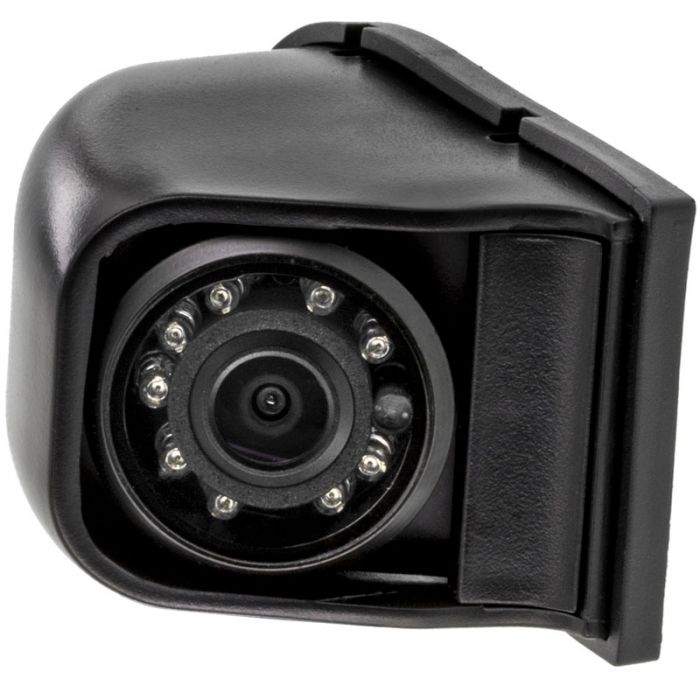

iBeam TE-SVC Side View Camera with Reverse Image

$70.99
In stock
Only 1 left
SKU
TE-SVC

Key Features

  • Universal side mount camera with reverse image for mounting in the front of the vehicle facing toward the rear
  • Housing is hard impact plastic and designed for side view facing toward the rear
  • CMOS image sensor
  • 120° wide viewing angle
  • Black housing
Unit includes: Reverse back up camera, Wiring harness, and Instruction manual

Beautifully small

Excellent picture quality can come from a very small camera, this side mount camera can be mounted pointing toward the back of the vehicle and provide a side view perspective.

iBeam reputation

iBeam is very respected brand in car back up camera systems. The TE-SRBC side camera offers iBeam quality in a package that is very versatile


iBeam TE-SVC Side View Camera with Reverse Image
    Features:
  • Universal side mount camera with reverse image for mounting in the front of the vehicle facing toward the rear
  • Housing is hard impact plastic and designed for side view facing toward the rear
  • Camera rotates within the housing to be used on the left or right side
  • 120° wide viewing angle
  • 2.8 mm color CMOS sensor
  • IP67 rated
  • Resolution 520 TV lines
  • Active pixels: 656 (H) x 492 (V)
  • Image sensor: CMOS7070
  • Operating Temperature: -20° C - 70° C
  • AGC: auto White balance: auto
  • Electronic shutter: 1/60 - 1/15,000 second
  • Current consumption: Max 100mA. Power supply 12V DC
  • .1 Lux light sensitivity
  • Black color housing
    Dimensions:
  • Dimension: 1-7/8" (W) x 3-1/4" (D) x 1-5/8" (H)
More Information
Manufacturer iBeam
Part Number TE-SVC
Camera Sensor type CMOS
Back up camera type Side Mount Camera
Camera diameter 2.8mm
Viewing Angle 120 degrees
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Yes - Reverse Image
Parking grid lines No
Infrared Illumination No
Built in Microphone No
Connector Type RCA Cable
Modulation NTSC only
Operation Voltage 12-15 Volt DC
Battery Powered Hard wired
Color Black
Overall Height 1.63 inches
Overall Length 3.25 inches
Overall Width 1.88 inches
Warranty 1 Year
UPC Code 086429274918
Return period 30 days
Exchange period 30 days
