Audiovox AVX10USB 10.1" Universal Seatback Attachable DVD System

Audiovox AVX10USB 10.1" Universal Seatback Attachable DVD System

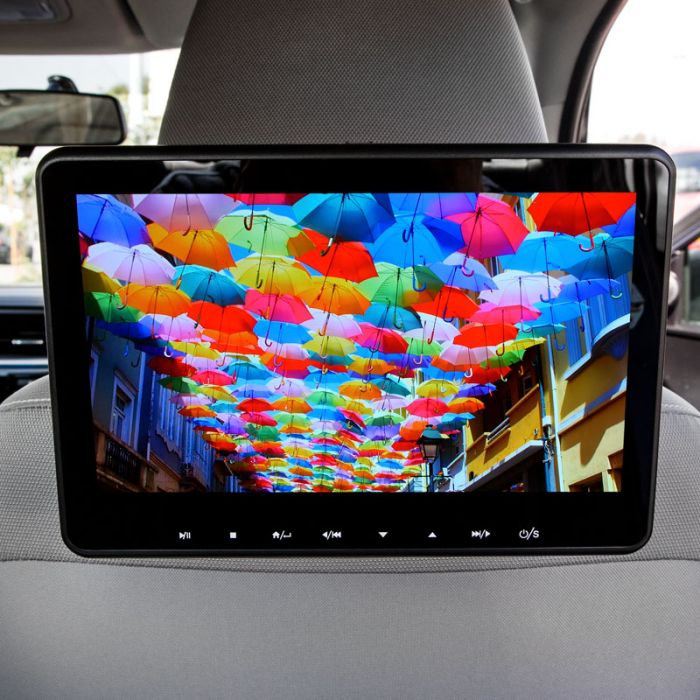

Audiovox AVX10USB Seatback Attachable DVD System - Main

More Views

Audiovox
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Audiovox AVX10USB Product Highlights

  • 10.1 inch headrest DVD player
  • System can be mounted to any headrest, Active or non Active
  • Single DVD system
  • HDMI input
  • Two units an be purchased for dual DVD system
  • Includes cross connect cable/hardwire cable so that two screens can be connected together
  • Includes cigarette lighter quick connection cable
  • Built in two channel headphone transmitter
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Frequently Bought Together

Overview

Unit includes: (1) - Headrest DVD Player, (1) Quick release adjustable mounting bracket, (1) Hardwire power input cable, (1) Hardwire video input cable, (1) Hardwire video output cable, (1) Cigarette lighter, (14) Post adapters, Remote control, and Instruction manual

Audiovox AVX10USB 10.1" Universal Seatback Attachable DVD System
    Unit Features:
  • 10.1 inch Active Matrix LCD display with built in DVD player and media player
  • Sold individually
  • HDMI input for connectivity with smartphones and other HD sources
  • Single DVD system, two units can be connected to one another to display the same DVD movie (HDMI, and digital media will not be cross linked)
  • 100-Channel wireless FM modulator
  • Dual channel IR Headphone transmitter
Audiovox AVX10USB 10.1
    Wiring information
  • Unit can be permanently installed or temporarily installed
  • Temporary installations can use the cigarette lighter cord for power (Will lack cross connect capabilities)
  • Permanent installations use the hardwire cable that has inputs and outputs, this allows you to connect two units together
  • Permanent cable assemble has a disconnect that allows for quick removal of player for security reasons
Audiovox AVX10USB power connections
    Mounting information:
  • System can be mounted to any headrest, Active or non Active, and mounts in minutes
  • Twin clamp style mount allows for quick installation and removal without removing the bracket from the headrest
  • Quick release slide mechanism makes removing players from headrests very easy while leaving mount in place
  • Mount has adjustments for different headrest pillow depths - 3-1/4" minimum depth from center id headrest post, 4-1/8" maximum depth from center of headrest post
  • Headrest Post width sizing: 7-1/2" on center maximum, 4-3/8" minimum
  • 7 different post diameter adapters: 9.5mm, 11.5mm, 12mm, 12.2mm, 13.3mm, 13.9mm, 15.95mm
  • 120 degree angle adjustment for optimal viewing angle and nice factory fit look(40° down / 90° up)
Audiovox AVX10USB mounting bracket Audiovox AVX10USB slider bracket
    Inputs and Outputs
  • 1 - Cigarette lighter plug for quick installation
  • 1 - Permanent power cord installation cable
  • 1 - Audio Video output cable for cross connect
  • 1 - HDMI input (See below for HDMI input limitations)
  • 1 - 3.5mm Audio Video input jack
  • 1 - 3.5mm headphone jack
  • Built in two channel headphone transmitter
  • Built in FM modulator
  • 1 - SD card input (32GB class 10 cards)
  • 1 - USB input (32GB)
Audiovox AVX10USB input connections
    Media Playback
  • Disc drive: DVD, DVD+R, CD, CD-R, MPEG2, MP3
  • USB: MP3, WMA, AAC, JPEG, BMP, AVI (MPEG4-DIVX and XVID), MPEG1, MOV (MPEG4-DIVX), FLV, SWF, DAT, VOB (720 x 576 maximum resolution)
  • SD Card: MP3, WMA, AAC, JPEG, BMP, AVI (MPEG4-DIVX and XVID), MPEG1, MOV (MPEG4-DIVX), FLV, SWF, DAT, VOB (720 x 576 maximum resolution)
    Display specifications
  • 10.1 inch active matrix TFT LCD screen
  • Auto resume feature - DVD picks up where it left off before power was removed
  • 16:9 widescreen display
  • LED backlight
  • 350 NIT brightness
  • NTSC/PAL auto switch
  • 1024 x 600 x 3 Pixel Resolution
    Dimensions
  • Dimensions of unit: 10" (W) x 6-7/8" (H) x 1-3/4" (D)
    HDMI input limitations
  • When using HDMI input the system will not output video to a second screen. HDMI input in to a single screen only

Technical Specifications

Manufacturer Audiovox
Part Number AVX10USB
LCD Screen Size 9 inch - 10 inch
Native Screen Resolution 1024 x 600
Widescreen Display 16:9 Widescreen Display
LCD back light type LED
LCD Screen Brightness 350 Nit
Swivel Screen Yes
Touchscreen No
Modulation NTSC and PAL
Built-in DVD Player Yes
Dual DVD capable Single DVD, two units can be connected together
Last Position Memory Yes
Anti-Shock Yes
Headphone Transmitter Two Channel
Headphone Jack Yes
Built in FM Modulator Yes
Built in Speakers No
HDMI input Yes
VGA input No - VGA input
Audio Video inputs 1 Audio Video Input
Audio Video Outputs 1 Audio/Video output
Composite video input Yes
Front mounted auxiliary input 3.5 mm audio/video input
USB input Yes
SD Card input Yes, microSD Card
Phone Mirroring No
Housing material Plastic
Slide track on back No
Mounting thread for stand mount No
Mount included No
Trigger wire No
Image Flip Function No
Quad Screen No
Cigarette Lighter Cord Included Yes
Operation Voltage 12 - 15 Volt DC
Ac Adapter included No
Headrest Shroud included No
Headrest Type Active Headrest
Zipper security cover No
Built in Game System No
Wireless Remote Control Yes
Monitor Color Black
Color Black
Overall Height 0 Inches
Overall Length 0 Inches
Overall Width 0 Inches
Warranty 1 Year
UPC Code 044476130045
