Axxess AX-ADBOX2 Auto Detect Radio Replacement Interface Control Box

$124.99
In stock
SKU
AX-ADBOX2

Key Features

  • Easily remove the factory stereo in an otherwise impossible situation and replace it with an aftermarket stereo and retain all of the factory functions
  • Provides accessory (12-volt 10-amp)
  • Retains R.A.P. (retained accessory power)
  • Used in non-amplified audio systems
  • Retains chimes
  • Retains factory auxiliary input
  • Provides NAV outputs (parking brake, reverse, mute, V.S.S.)

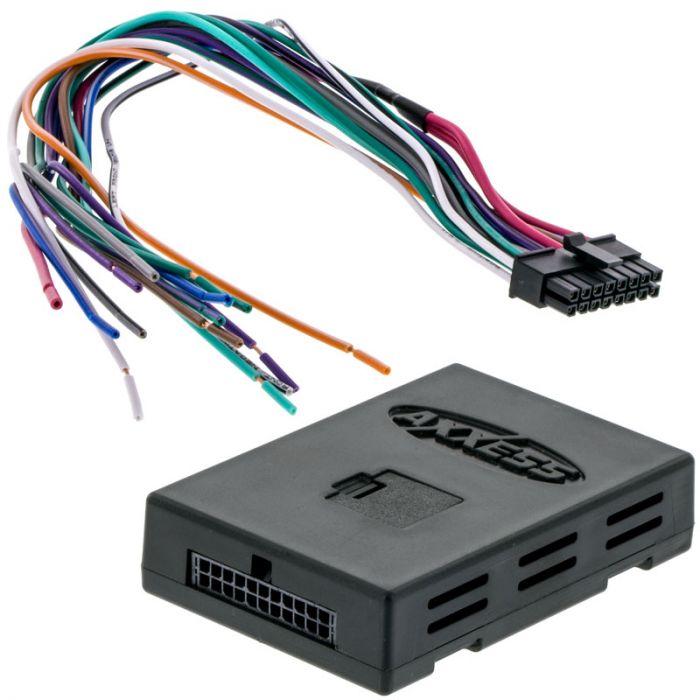

Unit includes: AX-ADBOX2 Interface control box, 16 pin wire harness with stripped leads, and Instruction manual

Axxess AX-ADBOX2 Auto Detect Radio Replacement Interface Control Box

The AX-ADBOX2 interface is designed to allow you to install an aftermarket radio and have it interface with the OEM LAN-Bus or CAN-Bus. The AX-ADBOX2 is designed to auto detect what type of vehicle it is installed and will automatically configure itself for operation. Simply add one of the plug-and-play harnesses that plugs into your vehicles factory radio connectors. The interface retains full functionality of the OEM systems as well as all safety and warning chimes.

The AX-ADBOX2 also retains the R.A.P or retained accessory power convenience feature, allowing you to use the radio after the vehicle is turned off as long as you don't open the doors. This interface has the capability of using the steering wheel controls on your new radio and easily up-datable with a USB connection. The AX-ADBOX2 now has the required outputs for the installation of a navigation radio.



Features:
  • Easily remove the factory stereo in an otherwise impossible situation and replace it with an aftermarket stereo and retain all of the factory functions
  • Auto detect interface for easy configuration
  • Provides accessory (12-volt 10-amp)
  • Retains R.A.P. (retained accessory power)
  • Used In Analog Amplified and Non-Amplified Systems
  • Retains chimes in GM vehicles
  • Retains turn signal clicks in GM vehicles
  • Retains factory auxiliary input
  • Provides NAV outputs (parking brake, reverse, mute, V.S.S.)
  • ASWC-1 harness included (ASWC-1 not included)
  • Retains OnStar and OE Bluetooth if equipped
  • Retains SYNC in non-navigation equipped Ford vehicles
  • Retains blind-spot detection systems in Chrysler / Dodge / and Jeep vehicles if vehicle is equipped
  • Retains factory satellite radio in Ford and GM vehicles
  • High level speaker input
  • USB updatable
  • Adjustable gain control for overall volume on amplified audio systems
  • Adjustable volume for chimes and OnStar in GM vehicles
  • Adjustable volume for SYNC in Ford vehicles
  • Retains balance and fade
  • Retains digital fade control
  • Interface requires plug-and-play-harness
Connections:
  • Yellow – 12V Constant
  • Red – 12V Accessory
  • Black - Ground
  • Orange/White – Dash Light Dimmer/Illumination
  • Blue/White – Amplifier turn on
  • Brown - Mute connection
  • Light green – (-) Parking brake lead
  • Blue/Pink – VSS (Vehicle speed sensor)
  • Black/Yellow - OnStar volume adjustment
  • White RCA - Left Auxiliary input
  • Red RCA - Right Auxiliary input
  • Green/Purple – (+) Reverse trigger
  • Green – Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White – Left Front Speaker (+)
  • White with Black Stripe – Left Front Speaker (-)
  • Purple – Right Rear Speaker (+)
  • Purple with Black Stripe – Right Rear Speaker (-)
  • Gray – Right Front Speaker (+)
  • Gray with Black Stripe – Right Front Speaker (-)


Fitments:

Axxess AX-ADBOX2 Instruction manual and fitment guide


More Information
Manufacturer Axxess
Part Number AX-ADBOX2
Warranty 1 Year
Vehicle Year 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
Vehicle Brand Buick, Cadillac, Chevrolet, Chrysler, Dodge, Ford, GMC, Hummer, Isuzu, Jeep, Lexus, Lincoln, Mazda, Mercury, Mitsubishi, Oldsmobile, Pontiac, Saab, Saturn, Suzuki, Toyota, Volkswagen
UPC Code 086429275571
Return period 30 days
Exchange period 30 days
