Axxess AX-ADXSVI-MB1 Interface Harness for 2001 - 2004 Mercedes Vehicles

Axxess AX-ADXSVI-MB1 Interface Harness for 2001 - 2004 Mercedes Vehicles

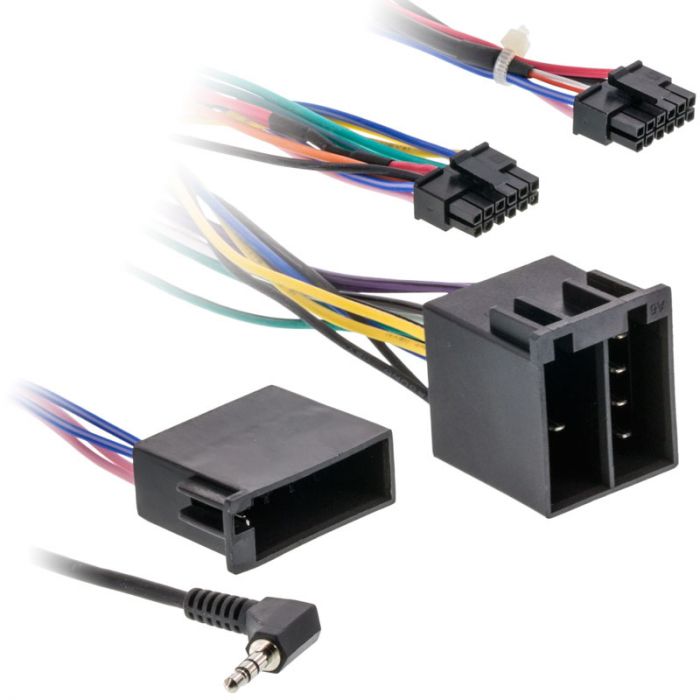

Axxess AX-ADXSVI-MB1 Interface Box Harness - Main

More Views

Axxess
Free Shipping on orders $99+

Overall Rating 0 (Based on 0 reviews)

Axxess AX-ADXSVI-MB1 Product Highlights

  • Facilitates the installation of the AX-ADXSVI interface box
  • Provides RAP (Retained Accessory Power), navigation outputs like reverse, parking brake, VSS, etc., and high level speaker input
  • Ideal for car stereos without any amplified system or when one is replacing the installed amplified system
  • Includes a prewired ASWC-1 connector
  • 12 volt 10 amp car accessory
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
Save money on all Metra installation hardware when you purchase more than one installation piece of hardware!

Frequently Bought Together

Overview

Unit includes: AX-ADXSVI Interface Wiring Harness and Instruction manual

Axxess AX-ADXSVI-MB1 Interface Harness for 2001 - 2004 Mercedes Vehicles
    Features:
  • Allows the user to install the Axxess AX-ADXSVI interface box
  • Provides RAP (Retained Accessory Power)
  • Provides navigation outputs like reverse, parking brake, VSS, etc., and high level speaker input
  • Designed to install an aftermarket car radio into the factory databus systems
  • Includes a prewired ASWC-1 steering wheel interface connector
  • High level speaker input
  • Provides 12 volt 10 amp car accessory
  • Retains balance and fader
  • Micro “B” USB updatable

Connections:
  • Yellow – 12V Constant
  • Red – 12V Accessory
  • Black - Ground
  • Orange/White – Dash Light Dimmer/Illumination
  • Blue/White – Amplifier turn on
  • Brown - Mute connection
  • Light green – (-) Parking brake lead
  • Blue/Pink – VSS (Vehicle speed sensor)
  • Black/Yellow - MOST-Bus volume adjustment
  • White RCA - Left Auxiliary input
  • Red RCA - Right Auxiliary input
  • Green/Purple – (+) Reverse trigger
  • Green – Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White – Left Front Speaker (+)
  • White with Black Stripe – Left Front Speaker (-)
  • Purple – Right Rear Speaker (+)
  • Purple with Black Stripe – Right Rear Speaker (-)
  • Gray – Right Front Speaker (+)
  • Gray with Black Stripe – Right Front Speaker (-)


Compatible With:

Mercedes
  • 2001 - 2004 C-Class
  • 2004 - 2004 CLK
  • 2003 - 2003 CLK500
  • 2003 - 2003 CLK55

Technical Specifications

Manufacturer Axxess
Part Number AX-ADXSVI-MB1
Warranty 1 Year
Chassis Size No
Color No
Vehicle Year 2001, 2002, 2003, 2004
Vehicle Brand Mercedes Benz
Vehicle Model No
UPC Code 086429287123
