Axxess AX-FD1-SWC 2007 - and Up Ford radio replacement CAN-BUS interface with steering wheel and navigation outputs

$130.99
In stock
Only 1 left
SKU
AX-FD1-SWC

Key Features

  • Ford complete radio replacement interface for plug-and-play installation of an aftermarket car radio
  • Interface is designed for both non-amplified and amplified models (including SYNC/Sony/THX)
  • Integrated steering wheel control interface for direct plug in to aftermarket radio
  • Provides NAV outputs (parking brake, reverse, and speed sense)
  • Retains the factory Subwoofer and Center channel

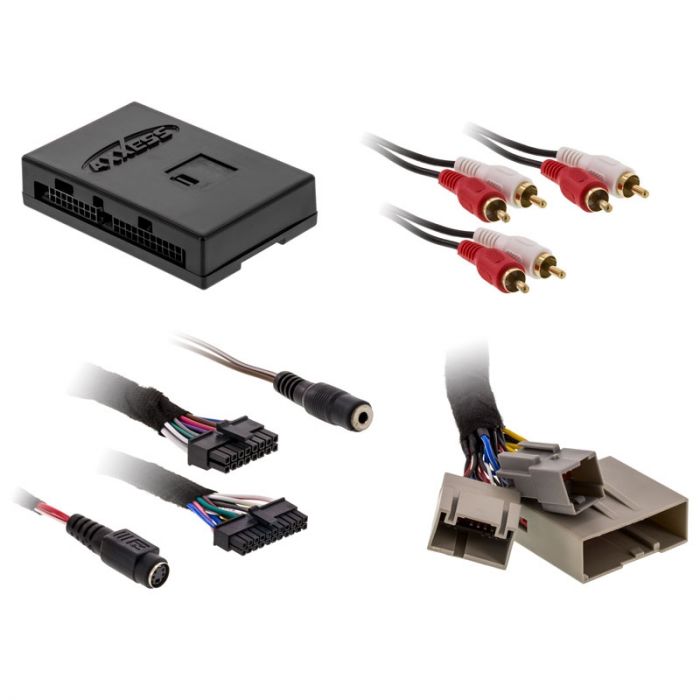

Unit includes: AX-FD1-SWC Interface control box, 16 pin wire harness, 18 pin to 12 pin and 24 pin harness, Female 3.5mm connector with stripped leads, and Instruction manual

Axxess AX-FD1-SWC 2007 - and Up Ford radio replacement CAN-BUS interface with steering wheel and navigation outputs
    Features:
  • Easily remove the factory stereo in an otherwise impossible situation and replace it with an aftermarket stereo and retain all of the factory functions
  • Provides accessory (12-volt 10-amp)
  • Retains R.A.P. (retained accessory power)
  • Used in both non-amplified and amplified models (including Sony/THX)
  • Retains chimes
  • Provides NAV outputs (parking brake, reverse, mute, V.S.S.)
  • Integrated steering wheel control interface for direct plug in to aftermarket radio
  • Retains RSE (rear seat entertainment)
  • Retains SAT (satellite radio)
  • Retains SYNC
  • Retains the factory AUX-IN jack
  • High level speaker input
  • USB updatable
  • Retains balance and fade (excluding Sony/THX)
Connections:
  • Yellow - 12V Constant
  • Red - 12V Accessory
  • Black - Ground
  • Orange/White - Dash Light Dimmer/Illumination
  • Blue/White - Amplifier turn on
  • Brown - Mute connection
  • Light green - (-) Parking brake lead
  • Blue/Pink - VSS (Vehicle speed sensor)
  • Black/Yellow - OnStar volume adjustment
  • White RCA - Left Auxiliary input
  • Red RCA - Right Auxiliary input
  • Green/Purple - (+) Reverse trigger
  • Green - Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White - Left Front Speaker (+)
  • White with Black Stripe - Left Front Speaker (-)
  • Purple - Right Rear Speaker (+)
  • Purple with Black Stripe - Right Rear Speaker (-)
  • Gray - Right Front Speaker (+)
  • Gray with Black Stripe - Right Front Speaker (-)
  • White RCA - Left Subwoofer signal
  • Red RCA - Center Channel signal (Note: If this jack is not present on the aftermarket radio, just leave be. Only the center channel speaker will be lost.)


Fitments:

Ford
  • 2009 - and Up Econoline
  • 2007 - 2010 Edge
  • 2008 - 2012 Escape
  • 2007 - 2014 Expedition
  • 2009 - 2010 Explorer (with factory navigation)
  • 2009 - 2010 Explorer Sport Trac(with factory navigation)
  • 2009 - 2012 F150
  • 2013 - 2013 F150 STX/FX2 base/XLT base
  • 2012 - 2012 F150 STX/XLT base
  • 2011 - 2012 F250/F350/F450/F550
  • 2013 - 2016 F250/F350/F450/F550 (must have factory CD player)
  • 2016 - and Up F650/F750 (must have factory CD player)
  • 2008 - 2011 Focus
  • 2010 - 2012 Fusion
  • 2009 - 2014 Mustang
  • 2010 - 2012 Taurus
    Lincoln
  • 2007 - 2010 MKX
  • 2007 - 2009 MKZ
  • 2007 - 2014 Navigator
    Mazda
  • 2008 - 2011 Tribute
    Mercury
  • 2008 - 2011 Mariner
  • 2008 - 2011 Milan
More Information
Manufacturer Axxess
Part Number AX-FD1-SWC
Integration Module Radio Replacement and Steering Wheel
Wiring harness function Replace Factory Radio
Steering Wheel Control Yes, Built in control
Warranty 1 Year
UPC Code 086429329984
Return period 30 days
Exchange period 30 days
