Axxess AX-GMCL2-SWC 2003 - 2013 GM Radio Replacement Interface with steering wheel and navigation outputs
$169.99
In stock
SKU
AX-GMCL2-SWC
- Fits 2003 - 2013 model years
- Complete General Motors radio replacement interface with steering wheel control retention
- Provides connections for aftermarket stereo to factory audio system without cutting cables
- Retains RSE (rear seat entertainment)
- Retains SAT (satellite radio)
- USB updatable

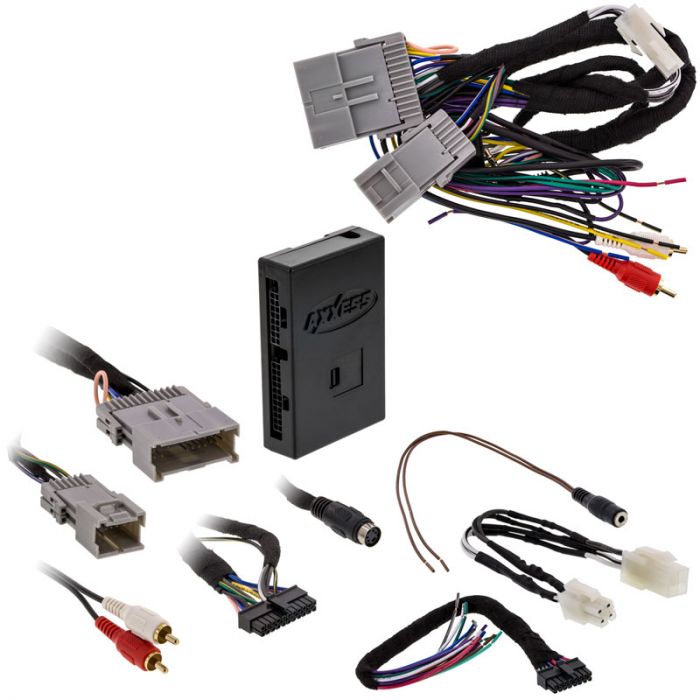

Unit includes: AX-GMCL2-SWC Interface control box, AX-GMCL2-SWC harness, 16 pin wire harness, 4-pin harness with stripped leads, Female 3.5mm connector with stripped leads, and Instruction manual
Axxess AX-GMCL2-SWC 2003 - 2006 GM radio replacement interface with steering wheel and navigation outputs - (Class-2 vehicles)
Fitments:
Buick
Axxess AX-GMCL2-SWC 2003 - 2006 GM radio replacement interface with steering wheel and navigation outputs - (Class-2 vehicles)
- Features:
- Easily remove the factory stereo in an otherwise impossible situation and replace it with an aftermarket stereo and retain all of the factory functions
- Provides accessory (12-volt 10-amp)
- Retains R.A.P. (retained accessory power)
- Can be used in non-amplified and analog or digital amplified models
- Retains audio controls on the steering wheel
- Retains OnStar / OE Bluetooth
- Retains chimes
- Adjustable OnStar level
- Provides NAV outputs (parking brake, reverse, mute, V.S.S.)
- Retains the factory AUX-IN jack
- Retains RSE (rear seat entertainment)
- Retains SAT (satellite radio)
- High level speaker input
- USB updatable
- Retains balance and fade
- Axxess AX-GMCL2-SWC 2003 - 2013 GM Radio Replacement Interface Instruction manual
- Yellow - 12V Constant
- Red - 12V Accessory
- Black - Ground
- Orange/White - Dash Light Dimmer/Illumination
- Blue/White - Amplifier turn on
- Brown - Mute connection
- Light green - (-) Parking brake lead
- Blue/Pink - VSS (Vehicle speed sensor)
- Black/Yellow - OnStar volume adjustment
- White RCA - Left Auxiliary input
- Red RCA - Right Auxiliary input
- Green/Purple - (+) Reverse trigger
- Green - Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White - Left Front Speaker (+)
- White with Black Stripe - Left Front Speaker (-)
- Purple - Right Rear Speaker (+)
- Purple with Black Stripe - Right Rear Speaker (-)
- Gray - Right Front Speaker (+)
- Gray with Black Stripe - Right Front Speaker (-)
Fitments:
Buick
- 2004 - 2005 Century
- 2005 - 2009 LaCrosse
- 2004 Rainier *
- 2005 - 2007 Rainier
- 2004 Regal
- 2002 - 2007 Rendezvous
- 2005 - 2007 Terraza
- Cadillac
- 2003 - 2006 Escalade
- 2003 - 2006 Escalade ESV
- 2003 - 2006 Escalade EXT
- Chevrolet
- 2003 - 2006 Avalanche **
- 2000 - 2005 Cavalier
- 2004 - 2012 Colorado
- 2005 - 2013 Corvette
- 2003 - 2007 Express
- 2000 - 2005 Impala
- 2003 - 2009 Kodiak C4500-C8500
- 2001 - 2003 Malibu
- 2004 - 2005 Malibu Classic
- 2000 - 2005 Monte Carlo
- 2003 - 2006 Silverado **
- 2007 Silverado Classic **
- 2003 - 2006 SSR *
- 2003 - 2006 Suburban **
- 2003 - 2006 Tahoe **
- 2002 - 2004 Trailblazer *
- 2005 - 2009 Trailblazer
- 2005 - 2008 Uplander
- GMC
- 2004 - 2012 Canyon
- 2002 - 2004 Envoy *
- 2005 - 2009 Envoy
- 2003 - 2007 Savana
- 2003 - 2006 Sierra **
- 2007 Sierra Classic **
- 2005 - 2009 TopKick C4500-C8500
- 2003 - 2006 Yukon / Yukon XL **
- Hummer
- 2003 - 2007 H2 †
- 2006 - 2010 H3/H3t
- Isuzu
- 2003 - 2008 Ascender
- 2003 - 2008 H-Series
- 2006 - 2008 I-Series
- Oldsmobile
- 2001 - 2004 Alero
- 2002 - 2004 Bravada *
- 2002 Intrigue
- Pontiac
- 2001 - 2005 Aztec
- 2001 - 2005 Grand Am*
- 2004 - 2008 Grand Prix
- 2005 - 2006 Montana SV6
- 2000 - 2005 Sunfire
- Saab
- 2005 - 2009 9-7x
- Saturn
- 2005 - 2007 Relay
Manufacturer | Axxess |
---|---|
Part Number | AX-GMCL2-SWC |
Integration Module | Radio Replacement and Steering Wheel |
Wiring harness function | Replace Factory Radio |
Steering Wheel Control | Yes, Built in control |
Speaker level inputs | No |
Warranty | 1 Year |
Vehicle Year | 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013 |
Vehicle Brand | Buick, Cadillac, Chevrolet, GM, GMC, Hummer, Isuzu, Oldsmobile, Pontiac, Saab, Saturn |
UPC Code | 086429330034 |
Return period | 30 days |
Exchange period | 30 days |
Write Your Own Review
Customer Questions
Wiring Harnesses Explained
What do all of the wire colors mean? Aftermarket manufacturers have made car stereo receiver installation an easier process by using a standardized wire color scheme. We walk you through what each individual wire does, this way if you have an installation that doesn't perform properly you will have the resources to begin troubleshooting your installation.
